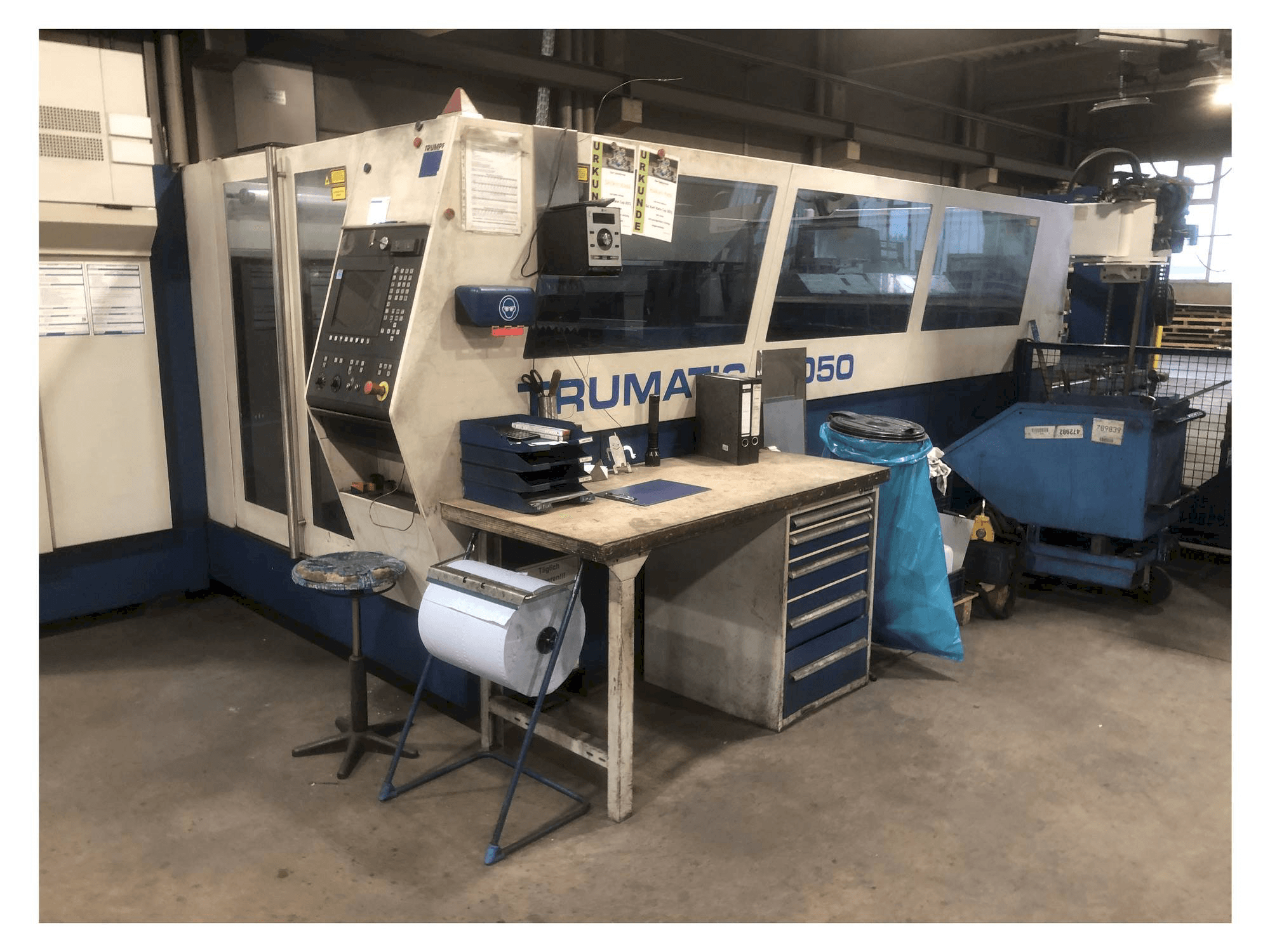

This Trumpf Trumatic L3050 with Liftmaster Laser Cutting machine was manufactured in the year 2003. It is equipped with a TRUMPF CNC SIEMENS SINUMERIK 840 D control unit and has 3 axis. The machine has a maintenance contract with Trumpf and is consequently in good condition. A quartz tube replacement was carried out in 2022/2023.
Overview
- brand: TRUMPF
- year: 2003
- MODEL: Trumatic L3050
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
- availability: Immediately
- control unit brand: TRUMPF CNC Siemens
Technical Information - TRUMPF Trumatic L3050
Control Unit
- Brand: TRUMPF CNC Siemens
- Model: Sinumerik 840D
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 100 mm
Additional equipment
- - 1x double trolley
- - 1x storage platform
Additional Information
- Technical Machine Benefits:
- - Automatic pallet changer
- - Laser unit: c02 laser, high-frequency excited, cooling unit,
- - Longitudinal conveyor belt for small parts/waste
- - Compressed air cutting
- - Laser power control
- - Drives: gantry drive in combination with linear direct drives
- - Contourlas for the production of small holes
- - Microweld
- - Liftmaster
- - Hl-las high-pressure cutting
- Qualitative Machine Benefits:
- - Cutting gas pressure setting programmable laser cutting head with 5" lens and laser cutting head with 7. 5" lens
- - Plasma sensor system pms
- - Cutting head quick-change device
- - 7. 5" lens
- - Fast processing with sprint lasers
- - Automatic sheet outer edge detection
- - Capacitive height control (dias)
- - Programmable power cycles
- - Process control system (pcs)
- - Workshop programming tops 100 lite
- - Additional laser cutting head with 3.75" lens tr Additional laser cutting head with 9" lens // Position laser diode // Automatic focus position adjustment Autolas P/us // Oil spraying device for safe thick sheet processing // Automatic switch-off // Cross conveyor belt with container // Machine has a maintenance contract with Trumpf // Quartz tube replacement was carried out in 2022/2023
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
