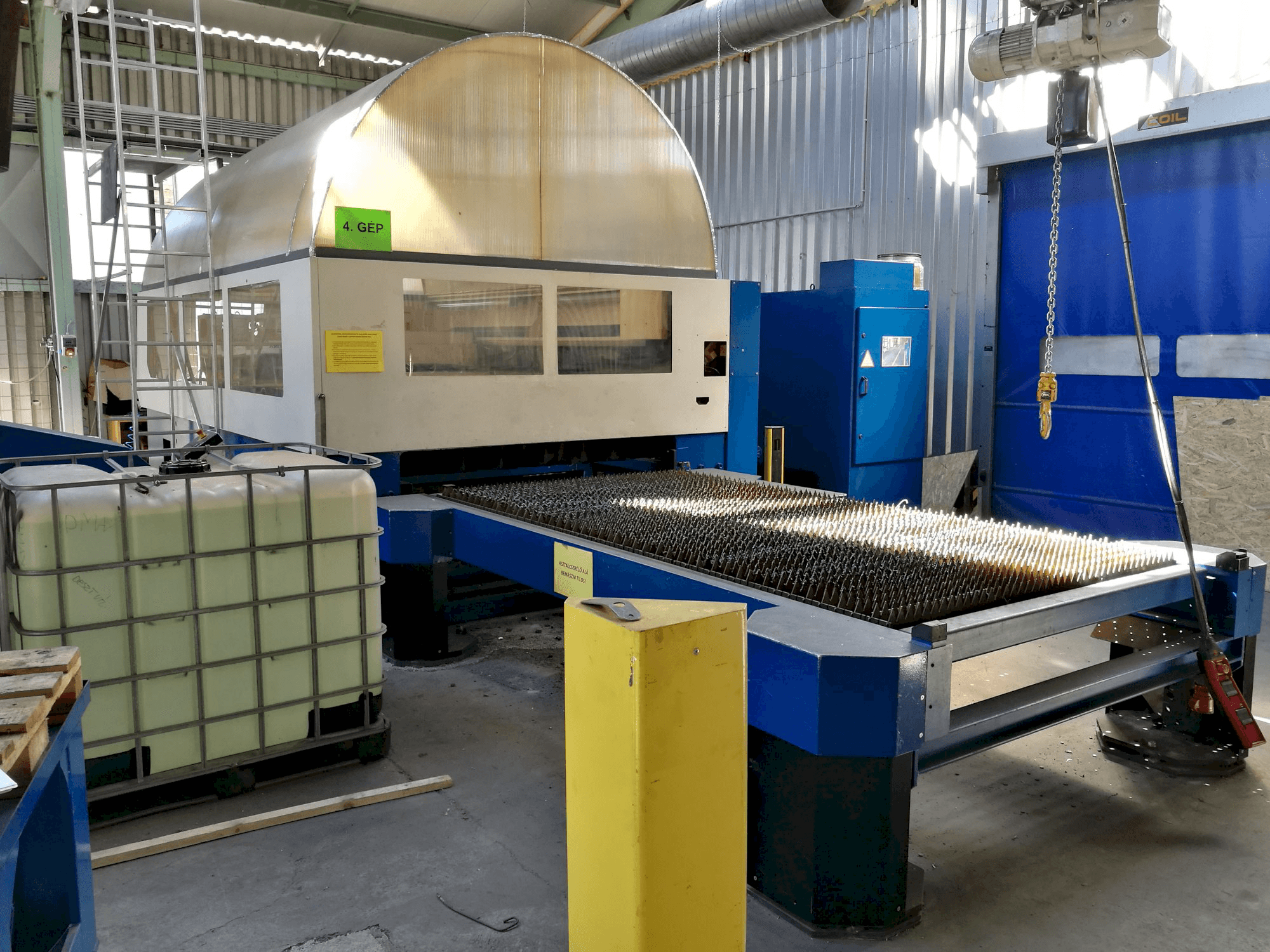

Trumpf Trumatic L3030 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L3030 Laser Cutting Machine was manufactured in 1999 in Germany and counts with a production time of 44290 laser hours and 23114 beam hours respectively. Equipped with a SIEMENS SINUMNERIK 840D Control unit, this machine has mainly worked with steel, stainless steel and aluminum sheets in the past.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic L3030
production hours: 44290
application type: Cutting
Location: Hungary
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3030

General Data

Measurements width: 9800 mm
Measurements depth: 5300 mm
Measurements height: 2000 mm
Machine weight: 11500 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: English/ German
Brand: SIEMENS

Main drive

Laserpower: 4 kW
Laser brand: Trumpf

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 20 mm
Aluminum: 20 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 88 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
