Trumpf Trumatic L3030 Laser Cutting machine

Show in original language

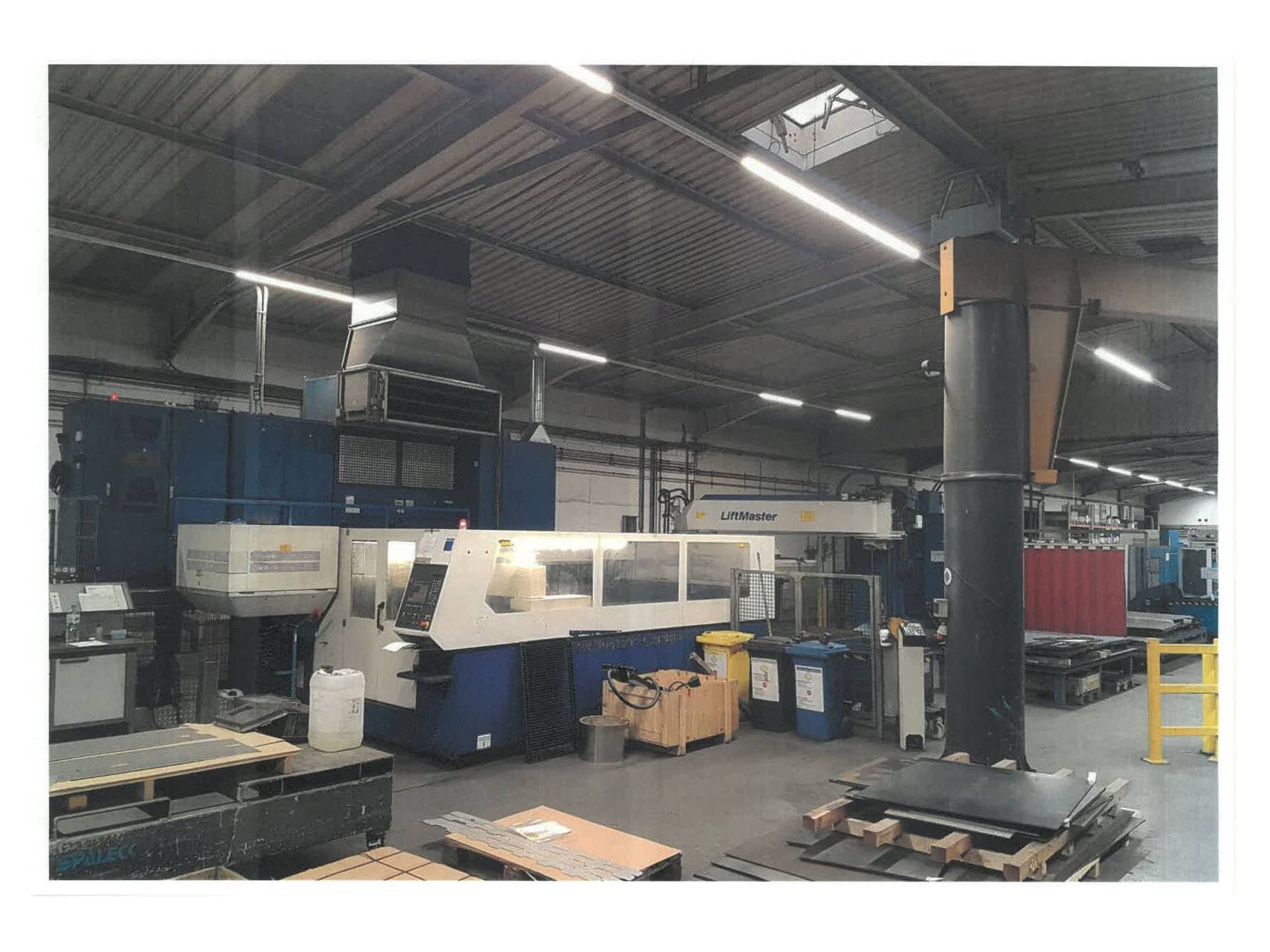

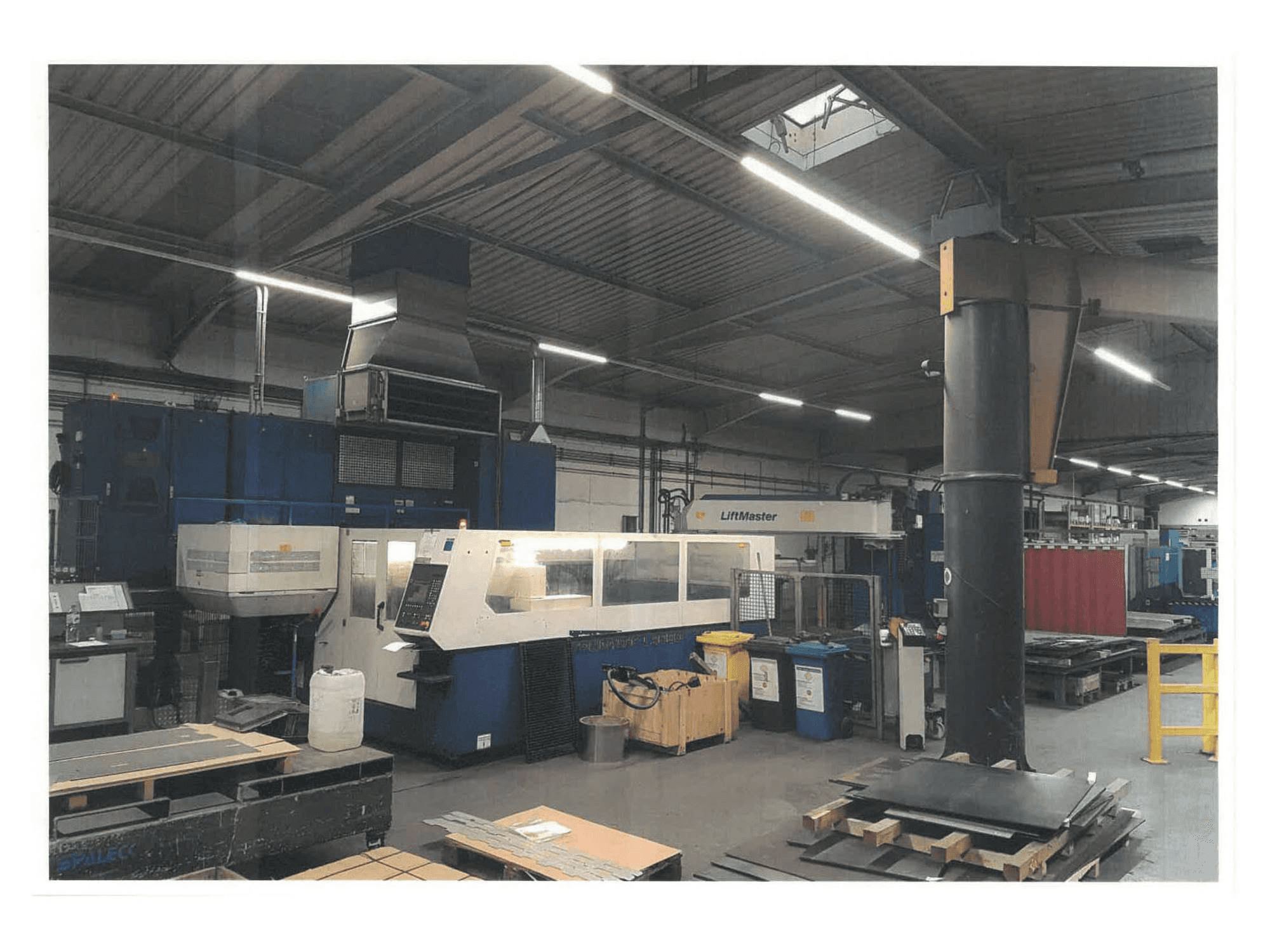

This TRUMPF Trumatic L3030 Laser Cutting machine was manufactured in the year 2005 and has 92004 production hours, of which 46380 are cutting hours. It is equipped with a Siemens Sinumerik 840 D control unit. The machine has a laser power of 3 kW.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic L3030
production hours: 92004
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3030

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Laserpower: 3 kW
Laser type: CO2

Workpiece

Workpiece weight: 900 kg

Table

Outer length: 3000 mm
Outer width: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Speed: 135 m/min, cutting speeds up to 15 m/min
- - Cutting head: universal cutting head
- - Feeding: automatic pallet changer (liftmaster)
- - Incl. Unloading rake and suction frame up to 900 kg
- - Material supply: automatic via sheet storage
- - Cutting capacity: mild steel up to 20 mm
- - Stainless steel up to 12 mm
- - Aluminum up to 8 mm
Qualitative Machine Benefits:
- - Liftmaster included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
