Trumpf Trumatic L 6050 Laser Cutting Machine

Show in original language

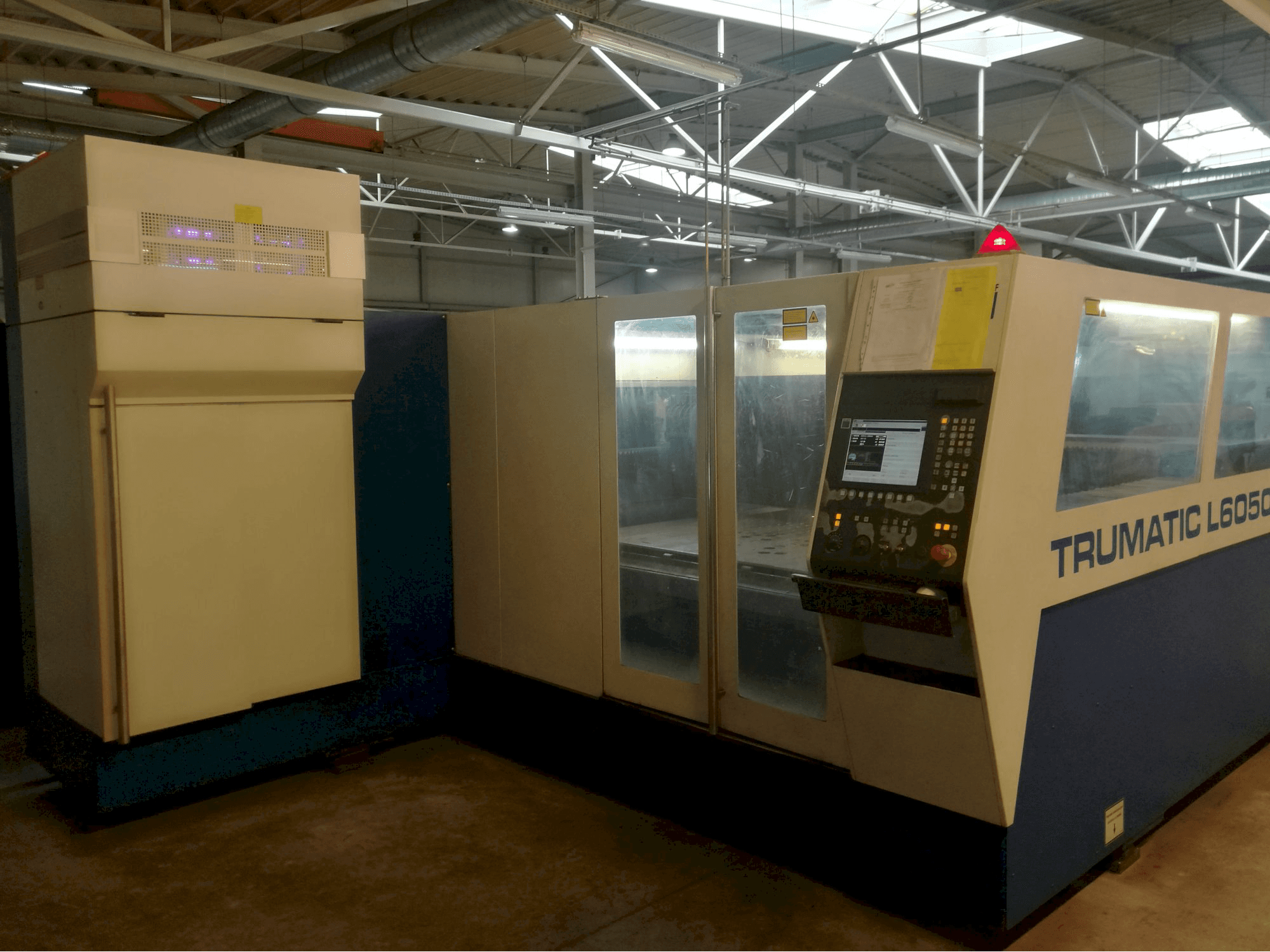

This Trumpf Trumatic L 6050 Laser Cutting Machine from 2006 was manufactured in Switzerland and has a working history of 52680 laser hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this 5 kW Laser Cutter can process sheets with up to 25 mm of thickness. This machine excels for its good working conditions, for being very fast and for its loadmaster. Several additional equipment including pallet changers and a conveyor are included among other accessories.

Overview

brand: TRUMPF
year: 2006
MODEL: Trumatic L 6050
production hours: 52680
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L 6050

General Data

Measurements width: 5500 mm
Measurements depth: 16950 mm
Measurements height: 2550 mm
Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 5 kW
Laser type: TTLF 5000TM
Laser brand: Trumpf

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece weight: 2800 kg

Max Material thickness

Steel: 25 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 105 kVA

Additional equipment

- Automatic Pallets Changer
- Loadmaster (9 plates, 2000x6000mm)
- Conveyor
- Plasma Line
- Sprint Line

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
