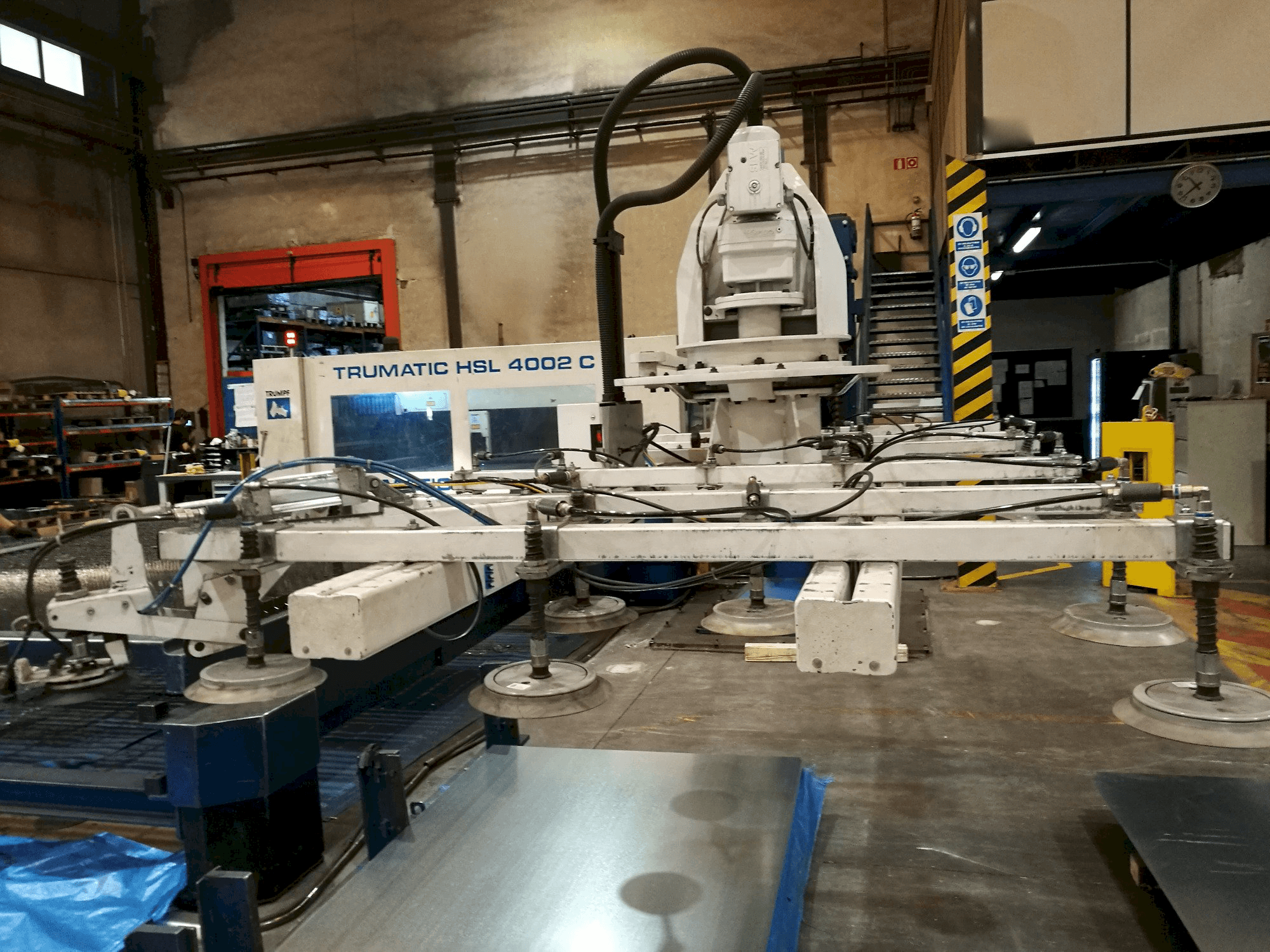

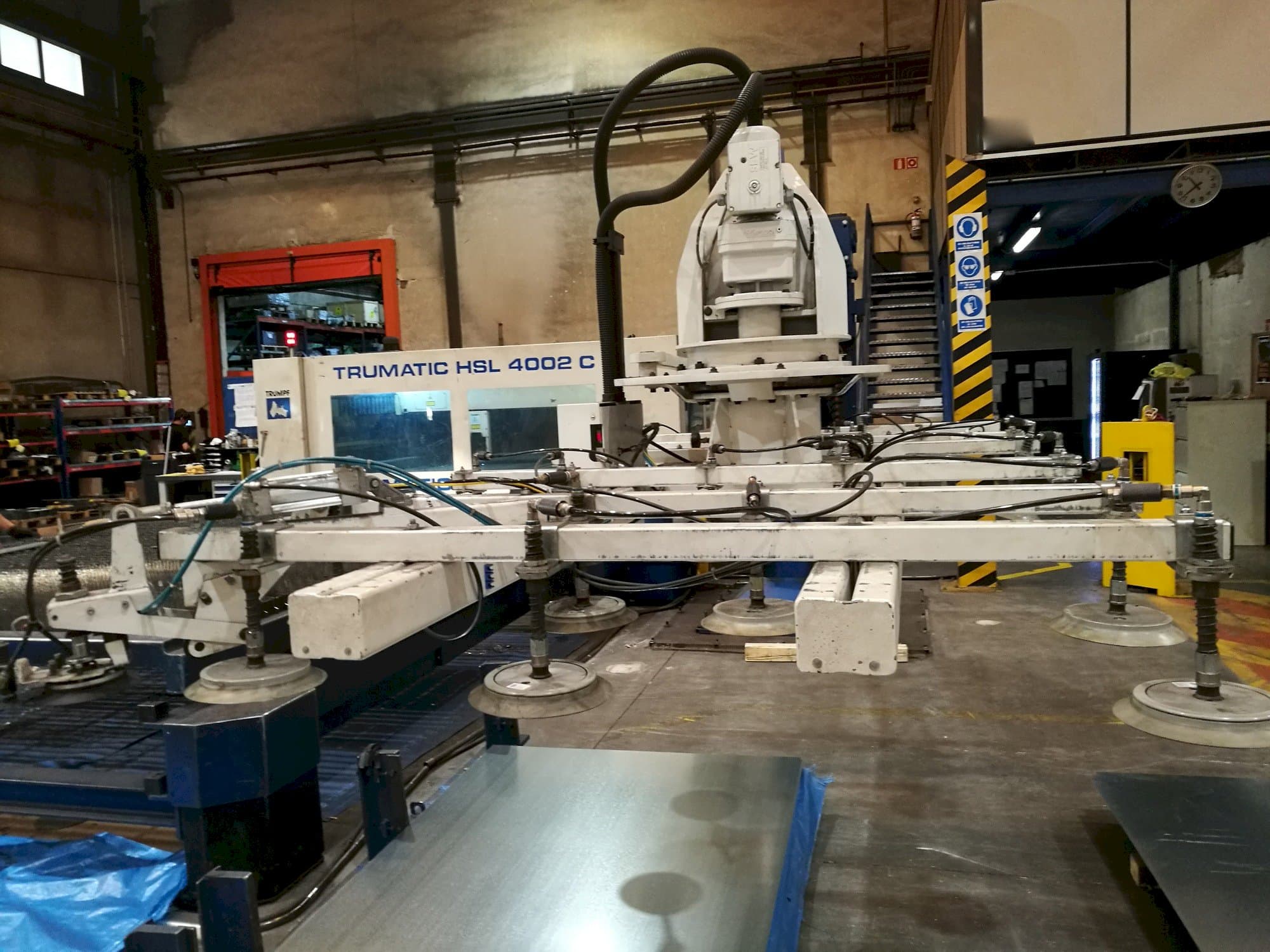

Trumpf TRUMATIC HSL 4002 C Laser cutting machine

Show in original language

This Trumpf TRUMATIC HSL 4002 C Laser cutting machine was built in Germany in 2005. It has about 28000 working hours per resonator. It is equipped with a new Siemens 840 D control unit. It operates with 2 laser power of 3.6 kW each one. A sheet loader included.

Overview

brand: TRUMPF
year: 2005
MODEL: TRUMATIC HSL 4002 C
production hours: 56000
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TRUMATIC HSL 4002 C

General Data

Measurements width: 12300 MM
Measurements depth: 4020 MM
Measurements height: 2370 MM
Machine weight: 14000 KG

Control Unit

Model: 840 D
CNC main language: Spanish
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 2 x 3.6 kW
Laser type: TLF 3600t

Movement

X-AXIS Movement: 2050 mm
Y-AXIS Movement: 4000 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 2050 mm
Workpiece y: 4000 mm
Workpiece weight: 1600 KG

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 143 kVA

Additional equipment

- Sheet loader

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
