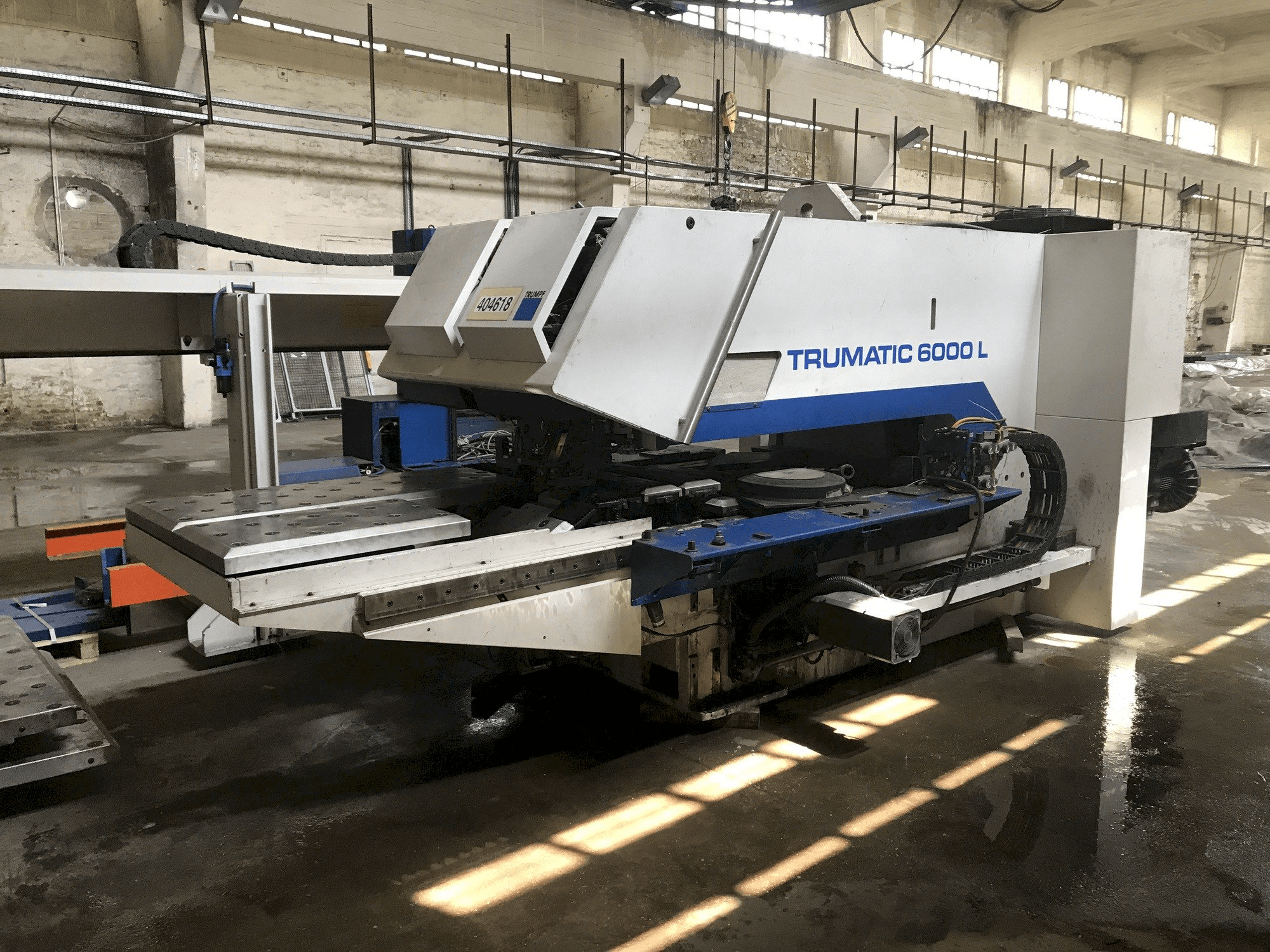

Trumpf Trumatic 6000 L Laser Punch Combination Machine

Show in original language

This Trumpf Trumatic 6000 L Laser Punch Combination Machine from 2002 was manufactured in Germany. It has a production time of approximately 58000 working hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This machine works with a laser power of 2,7 kW and a punching force of 220 kN.

Overview

brand: TRUMPF
year: 2002
MODEL: TRUMATIC 6000 L
production hours: 58000
application type: Punching
Location: Hungary
machine type: Punch-Laser Combination
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TRUMATIC 6000 L

General Data

Measurements width: 7500 mm
Measurements depth: 8100 mm
Measurements height: 2400 mm
Machine weight: 16000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laser type: TLF 2700TM
Punching force: 220 kN
Maximum sheet thickness: 8 mm
Laser brand: TRUMPF

Movement

X-AXIS Movement: 2585 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece weight: 200 kg

Tools

Number of stations: 19

Media

Main electronic connection: 400 V
Power consumption: 73 kVA

Additional equipment

- TRUMALIFT SheetMaster
- TRUMAGRIP

Additional Information

Machine history

End product: Furniture parts, rack parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
