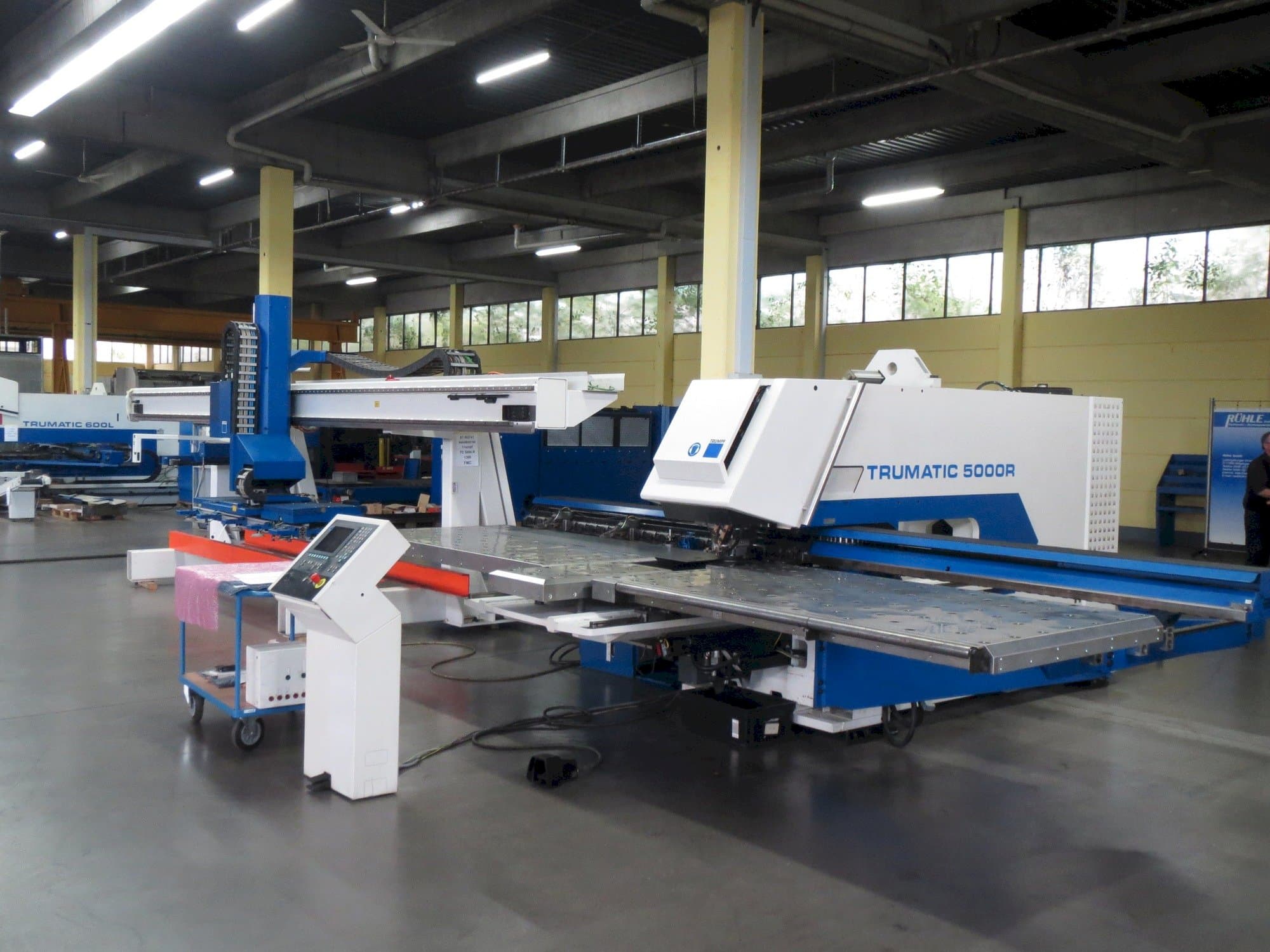

TRUMPF - Trumatic 5000 RZA-PUN-TRU-2003-00001

Additional equipment

• - Working Range 2500 x 1250 mm
• - Stable C-frame for easy access
• - Coordinate guide for high precision machining
• - Linear magazine with 18 tool stations and 3 clamps
• - Drives with maintenance-free 3-phase servo motors
• - Repositioning unit with programmable stripper
• - Ball-fitted tables
• - Parts chute 500 x 500 mm
• - Good parts container
• - Chip container

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Working area x x y: 2535 x 1280 mm
  • - Max. Tool diameter: 76,2 mm
  • - Movement speed x/y: 100/60 m/min
  • - Number of tool station: 18
  • - Automatic shut down mechanism
  • - First oil fillings
  • - Transport and assembly device punching head
  • - Hydraulic punching head
  • - Rotatable single tool adapter
  • - Manual adjustable presser foot force
• Qualitative Machine Benefits:
  • - Programmable presser foot
  • - Tool length compensation
  • - Spray lubrication for punches
  • - Vacuum slug removal
  • - Forming control
  • - Controller based on sinumerik 840d
  • - Control panel with tft screen 12"
  • - Nc program management
  • - Integrated technology data
  • - Teleservice via internet

Extra information

• - - Integrated e-Shop - Production plan - Slug remove conveyer chute Safety - CE-marking - Two-beam light barriers - Rapid hydraulic shutdown - Sheet collision detection Extended equipment Punching Options - Function MultiTool - Function MultiShear - Function MultiBend - Function deburring and roll technology - StripLine - Active die Machine Options - Repositioning cylinders - Sensor for part chute Programming - Work Shop Programming based in TruTops Punch Basic Data transmission - USB interface and network connection
