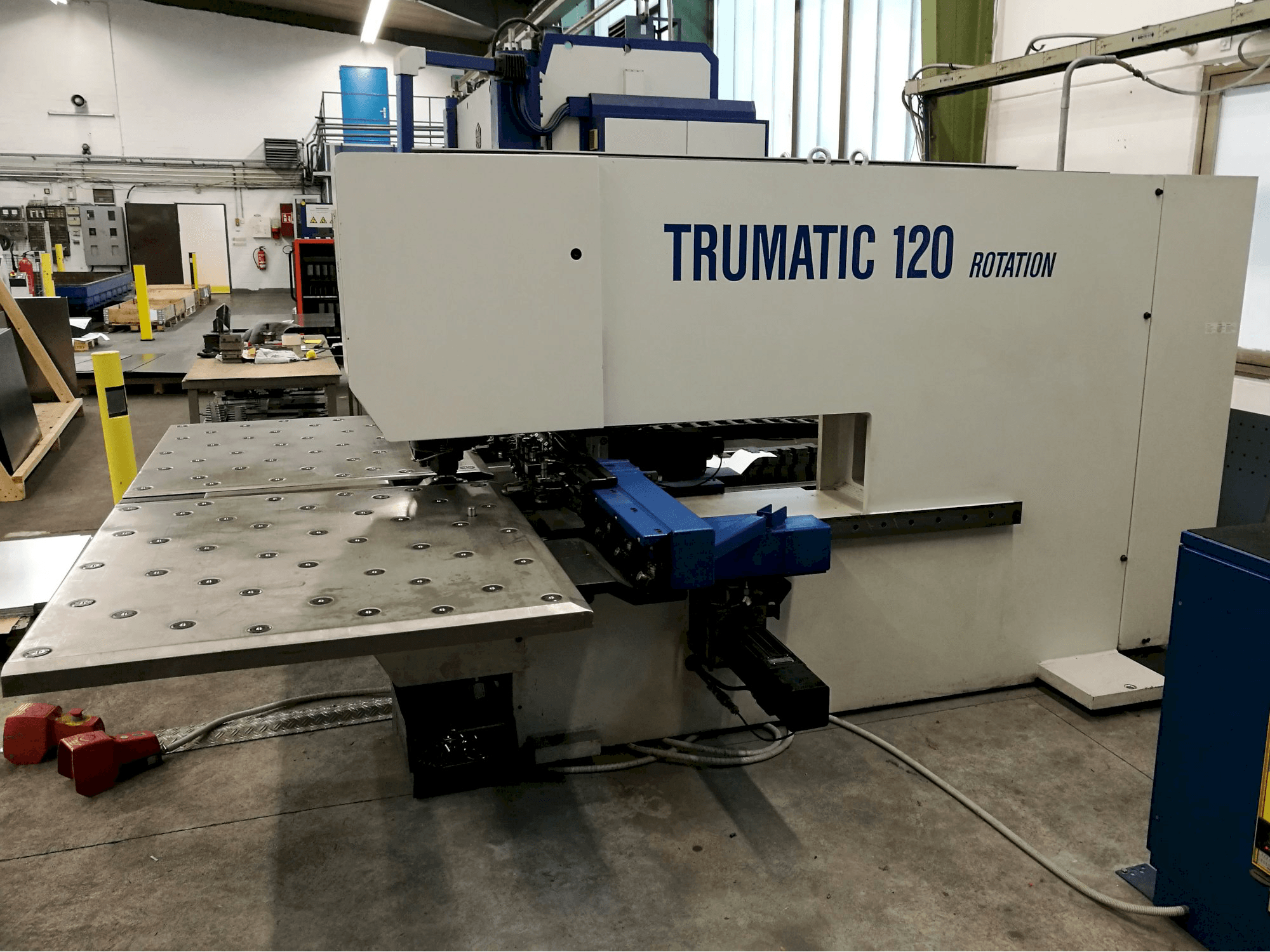

Trumpf Trumatic 120R Punching Machine

Show in original language

This Trumpf Trumatic 120R Punching Machine was manufactured in the year 1993 in Germany and has a working record of 2570 production hours. Equipped with a Bosch Trumagraph Control unit, this machine stands out due to its easily expandable working table. In the past, this unit has mainly processed steel, stainless steel and aluminum sheets up to 3 mm of thickness.

Overview

brand: TRUMPF
year: 1993
MODEL: Trumatic 120R
production hours: 2570
application type: Punching
Location: Germany
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 120R

General Data

Measurements width: 2360 mm
Measurements depth: 3300 mm
Measurements height: 2195 mm
Machine weight: 4300 kg

Control Unit

Model: Trumagraph
CNC main language: German
Brand: BOSCH

Main drive

Stamping force: 150 kN

Table

Outer length: 2000 mm
Outer width: 1000 mm

Media

Main electronic connection: 380 V
Power consumption: 9 kVA

Additional equipment

- NC DataDrive GNT 7102

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
