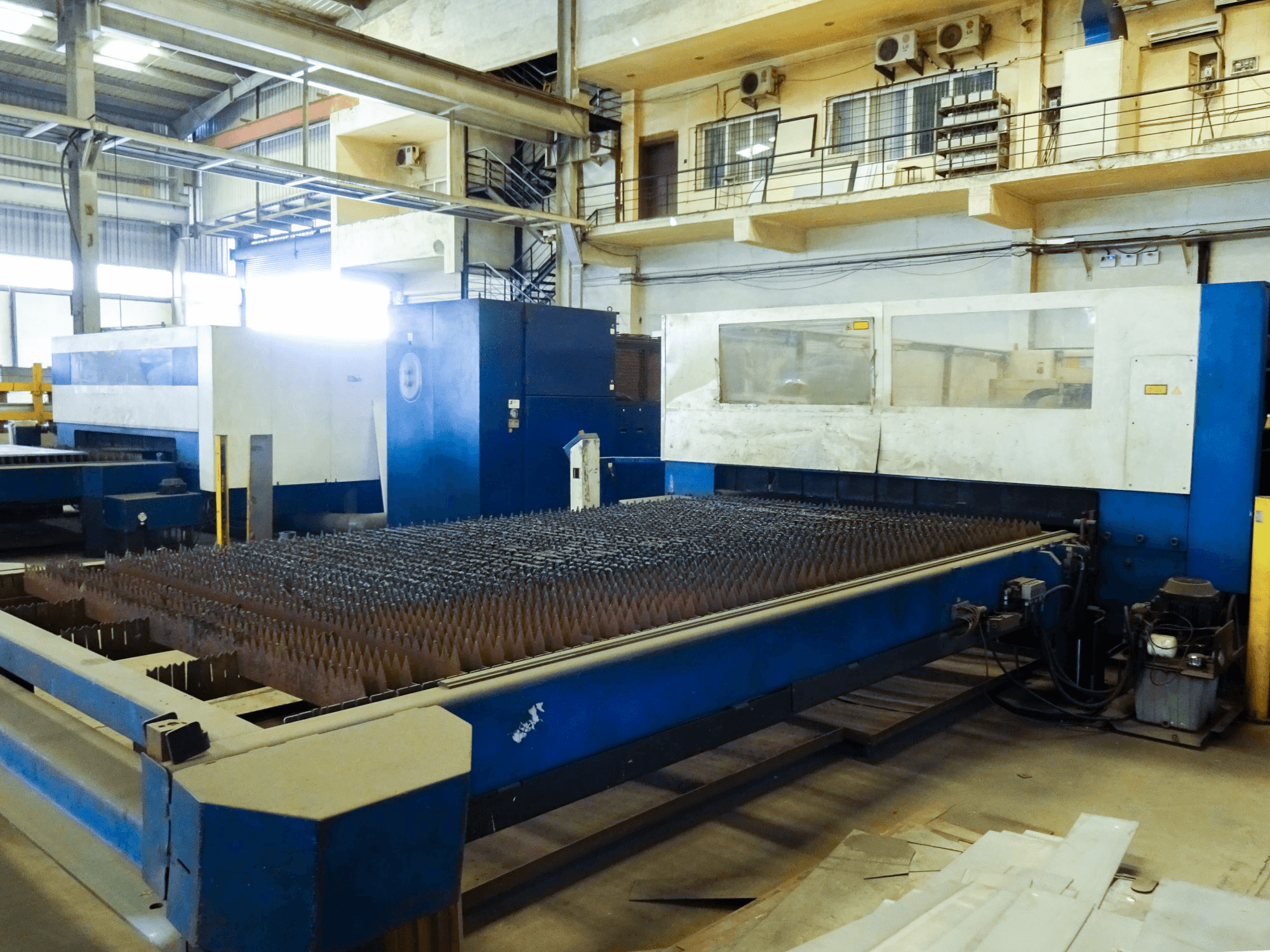

Trumpf TruLaser 3040 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 3040 Laser Cutting Machine from 2007 is operated through a Siemens SINUMERIK 840D with Ethernet Interface Control unit and has a record of estimated 40000 production hours. In the past, this equipment has handled mostly mild steel of up to 6 mm of thickness, and was utilized for Job Shop tasks. The TruLaser 3040 is a robust equipment, with a highly competitive price in the Laser Cutting market. Additionally, a UPS is included as extra equipment.

Overview

brand: TRUMPF
year: 2007
MODEL: TruLaser 3040
production hours: 40000
application type: Cutting
Location: India
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3040

General Data

Measurements width: 6500 mm
Measurements depth: 12300 mm
Measurements height: 2000 mm
Machine weight: 11500 kg

Control Unit

Model: SINUMERIK 840D
Interface: Ethernet
Brand: SIEMENS

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Max Material thickness

Steel: 15 mm
Stainless steel: 8 mm
Aluminum: 4 mm

Machine specific data

Number of cutting heads: 2
Size of cutting head 1: 5"
Size of cutting head 2: 7.5"
Laser turbine details: Turbine with magnetic Bearing
TASC Version: 4

Media

Main electronic connection: 400 V
Power consumption: 73 kVA
Air pressure: 10 bar

Additional equipment

- UPS

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
