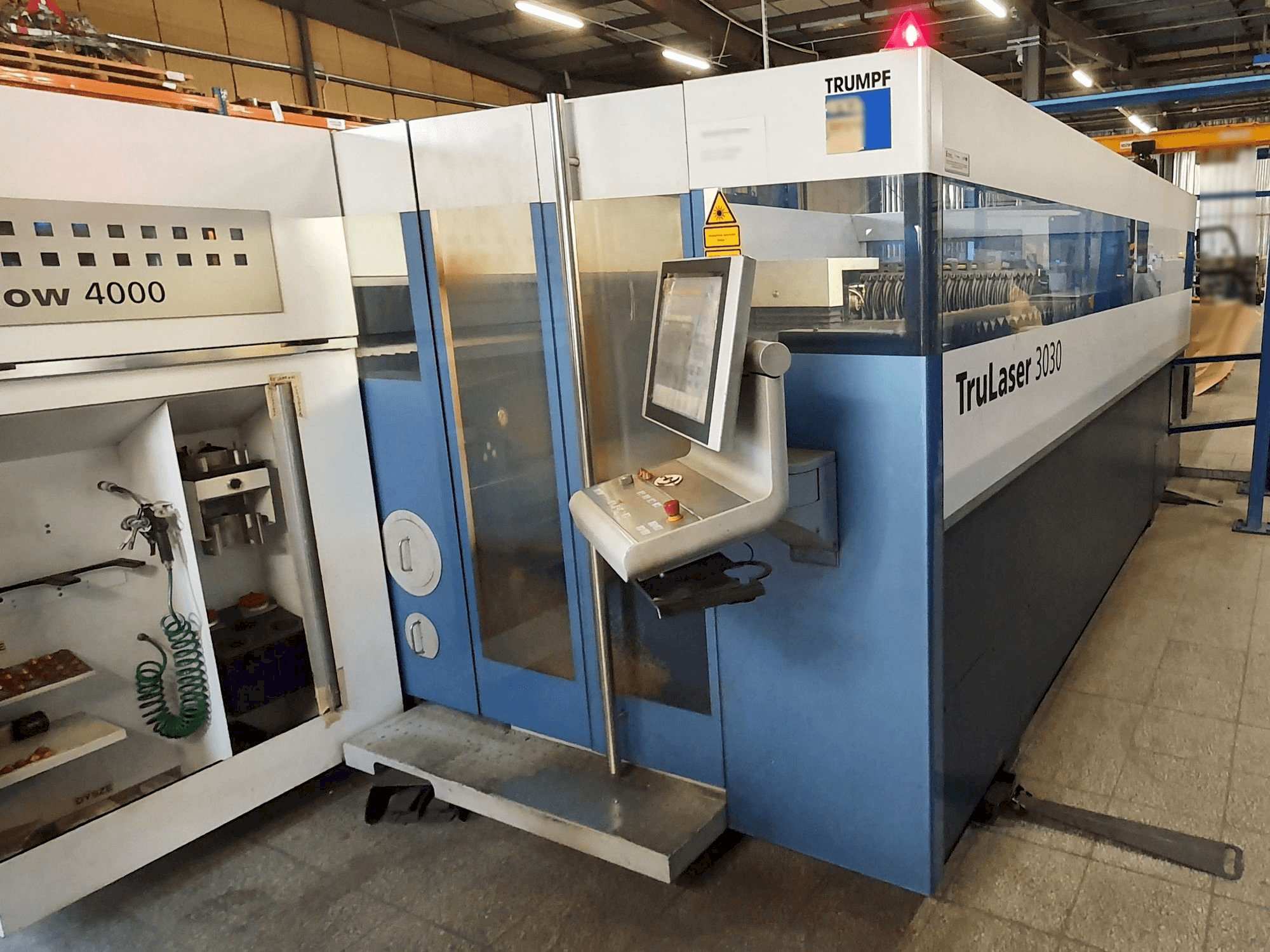

This Trumpf TruLaser 3030 2D Laser Cutting Machine from 2012 was built in Switzerland. It has accumulated a production record of 42000 hours, of which 24500 are laser beam on hours. It is operated thourgh a SINUMERIK 840 D Control unit. This machine works with a TruFlow resonator power 4 kW. It includes several options as a RotoLas tube cutting device for tubes and an automatic nozzle cleaning. This machine is in perfect condition and ready for tests. All the documentation of this machine is available. It has always been serviced by Trumpf service.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 3030
production hours: 42000
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF TruLaser 3030

General Data

Measurements width: 9300 mm
Measurements depth: 4700 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Model: SINUMERIK 840 D

Main drive

Laserpower: 4 kW

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Max Material thickness

Steel: 20 mm (o2)
Stainless steel: 15 mm (n2)
Aluminum: 10 mm (N2)

Machine specific data

Number of cutting heads: 2

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 88 kVA

Additional equipment

- 2 pcs of tables with automatic change: RotoLas tube cutting device for tubes
- LensLine lens inspection system
- ControlLine; DetectLine; PierceLine; FocusLine; NitroLine; PlasmaLine
- Automatic position of the sheet
- Oil spraying device
- Microweld
- Automatic nozzle cleaning; Nozzle changer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 3 axis laser cutting machine + 1 rotary axis for tubes
- - Max. Weight material: 900 kg
- - Tubes wall thickness structural steel (o2): 12 mm; stainless steel (n2): 6 mm; aluminum (n2): 5 mm
- - Tube weight 200 kg
- - Trutops laser software
- - Teleservice via the internet
Qualitative Machine Benefits:
- - Machine in perfect condition.
- - Ready for tests
- - Serviced always by trumpf service.
- - All documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
