Trumpf TruLaser 1030 Laser Cutting Machine

Show in original language

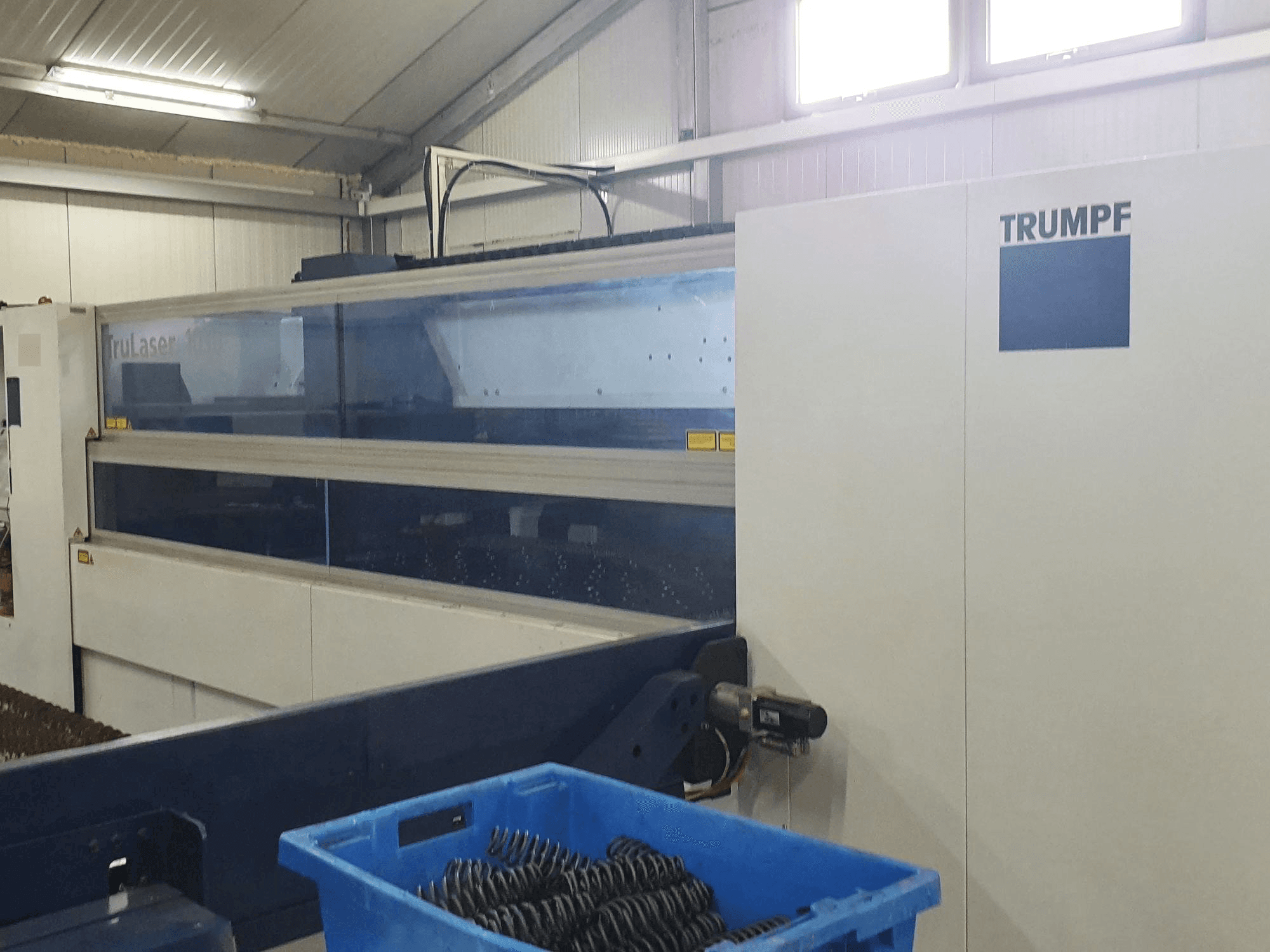

This Trumpf TruLaser 1030 Laser Cutting Machine was manufactured in 2012 in the United States. This machine can operate with a laser power of 2,5 kW. It has been working for 9848 hours. It is equipped with fully automatic pallet changer and TruCoax 2500 Resonator. It is in very good working condition, ready for tests, always serviced by Trumpf service.

Overview

brand: TRUMPF
year: 2012
MODEL: TruLaser 1030
production hours: 9848
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - TRUMPF TruLaser 1030

General Data

Measurements width: 7400 mm
Measurements depth: 2800 mm
Measurements height: 2300 mm
Machine weight: 8900 kg

Main drive

Laserpower: 2500 W KW
Laser type: CO2

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 75 mm

Workpiece

Workpiece weight: 575 kg

Table

Outer length: 1524 mm
Outer width: 3048 mm

Max Material thickness

Steel: 16 mm
Stainless steel: 8 mm
Aluminum: 6 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 72 kVA

Additional equipment

- Fully automatic pallet changer
- Lens cutting head with 7.5"
- TruCoax 2500 Resonator

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max material size: 3000 x 1500 mm
Qualitative Machine Benefits:
- - The machine is in very good working condition, ready for testing.
- - Serviced by the trumpf service.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
