Trumpf Lasercell TLC 1005 Laser Cutting Machine

Show in original language

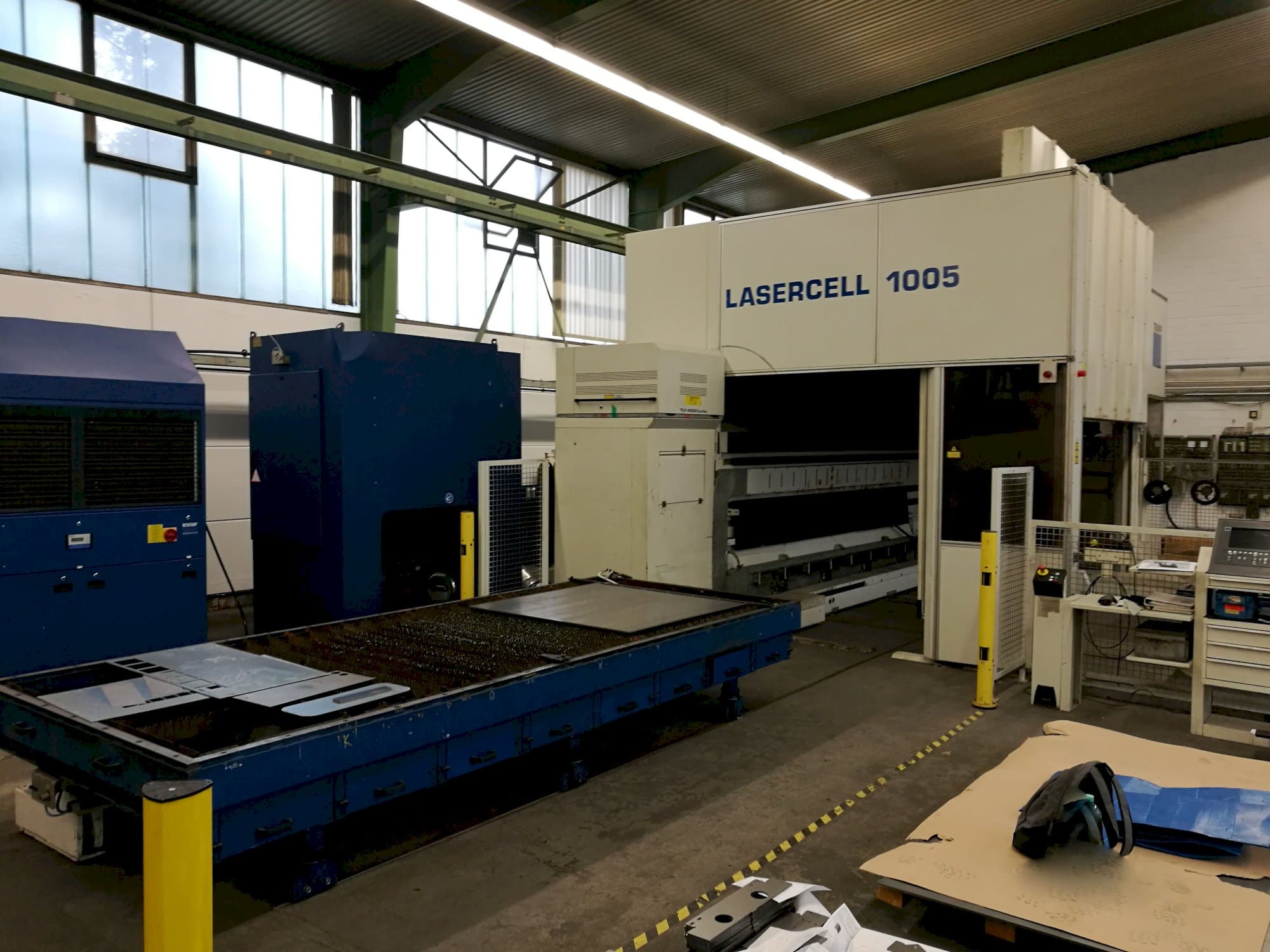

This Trumpf Lasercell TLC 1005 Laser Cutting Machine from 2001 was made in Germany and counts a production time of 38548 laser hours, of which 7040 are beam hours. Operated through a SIEMENS SINUMERIK 840 D Control unit, this versatile 6 axis machine can do laser cutting, laser welding and tube cutting. It stands out for its big working table (4000x1500mm), which incorporates an automatic table changing system. Its overall conditions are excellent and it includes several additional equipment.

Overview

brand: TRUMPF
year: 2001
MODEL: Lasercell TLC 1005
production hours: 7040
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Welding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Lasercell TLC 1005

General Data

Measurements width: 10000 mm
Measurements depth: 7000 mm
Measurements height: 4000 mm
Machine weight: 12600 kg

Control Unit

Model: SINUMERIK 840 D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 4 kW
Laser type: CO2
Laser brand: Trumpf

Movement

X-AXIS Movement: 4100 mm
Y-AXIS Movement: 1600 mm
Z-AXIS Movement: 750 mm
V-Axis Movement: 360° MM
U-Axis Movement: 360° MM

Workpiece

Workpiece drm: 400 mm
Workpiece x: 4000 mm
Workpiece y: 1500 mm
Workpiece z: 750 MM
Workpiece weight: 1000 kg

Machine specific data

Laser Cutting Head: Trumpf
Last performed resonator maintenance: 2018

Media

Main electronic connection: 400 V
Power consumption: 90 kVA

Additional equipment

- 2x Working Table
- Gas Bottle Cage
- Air Filter System
- Laser Resonator Air cleaning station
- 2x Laser Cutting Heads
- 2x Laser Welding Heads

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
