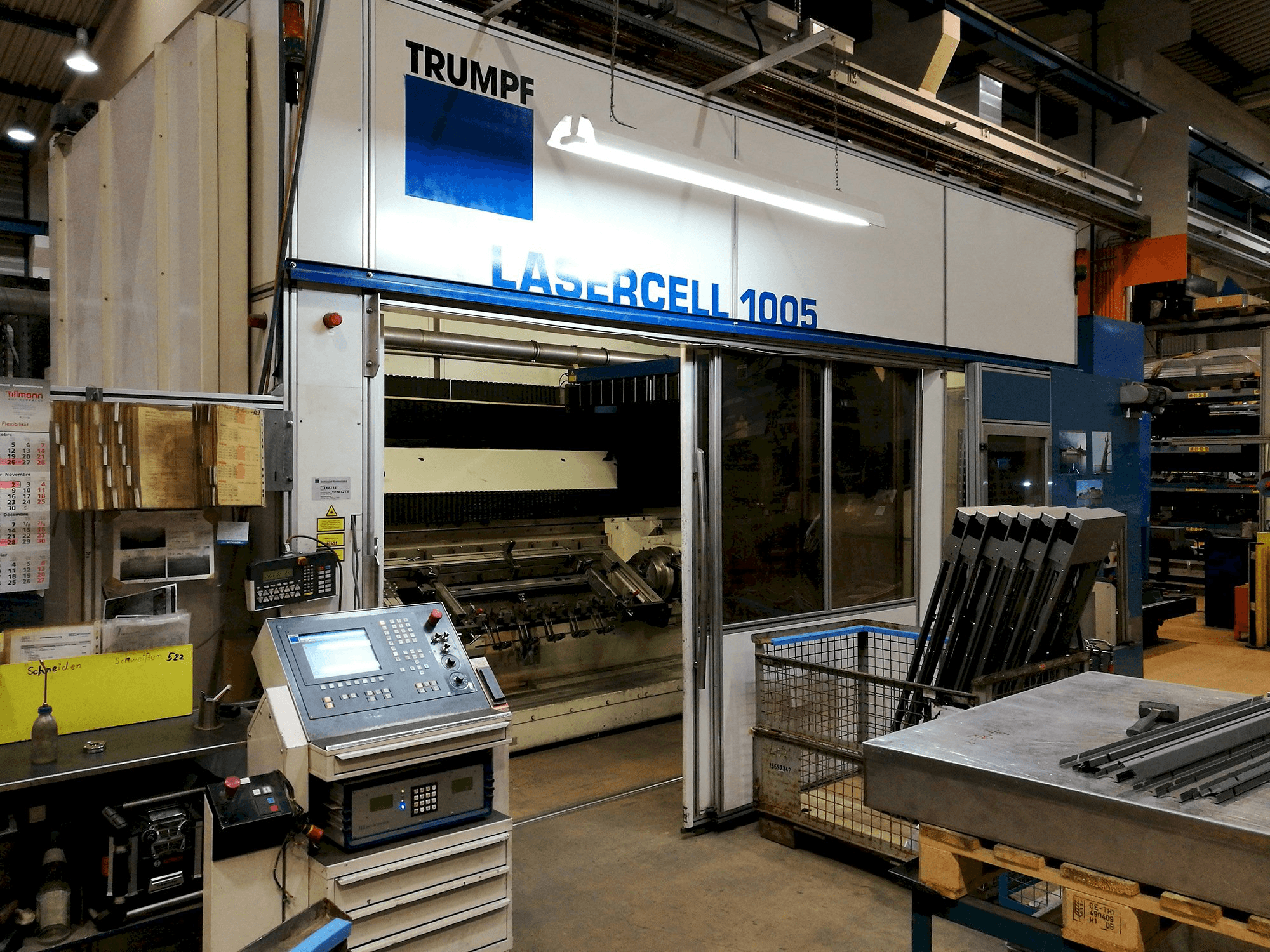

Trumpf Lasercell TLC 1005 Laser Welding Machine

Show in original language

This Trumpf Lasercell TLC 1005 Laser Welding Machine from 2000 was produced in Germany and has been operative for 78000 hours. Equipped with a SIEMENS 840 D Control unit, this machine stands out for its powerful 6 kW laser. It incorporates two tables in X-way and includes 2 HF generators that make the system stable. During the past, it has mainly been cutting 3D steel and stainless steel up to 4 mm of thickness for the automotive and train machinery industry. It presents excellent conditions, as it has been given maintenance.

Overview

brand: TRUMPF
year: 2000
MODEL: Lasercell TLC 1005
production hours: 78000
application type: Other Sheet Metal Machinery
Location: Germany
machine type: Laser Welding Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Lasercell TLC 1005

General Data

Measurements width: 5000 mm
Measurements depth: 3000 mm
Measurements height: 3000 mm
Machine weight: 11000 kg

Control Unit

Model: 840 D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 6 kW
Laser type: CO2
Laser brand: Trumpf

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 750 mm
B-AXIS Movement: 120 -+ ° MM
C-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 400 mm
Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 750 mm
Workpiece weight: 1000 kg

Media

Main electronic connection: 400 V
Power consumption: 130 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
