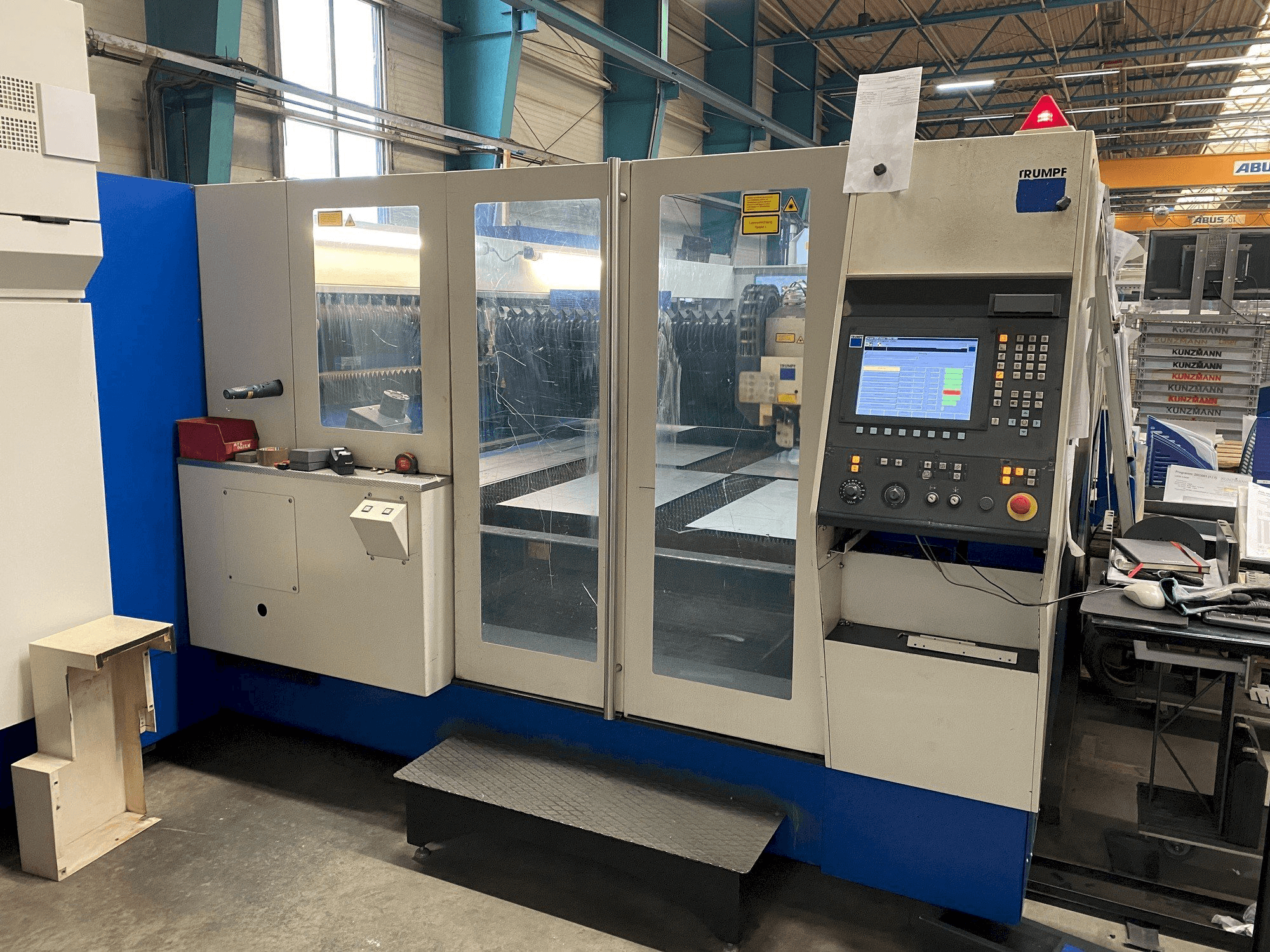

Trumpf laser 5040 Laser Cutting machine

Show in original language

This Trumpf laser 5040 Laser Cutting machine was manufactured in the year 2008 and has 32093 production hours. It is equipped with a Trumpf control unit. The machine has a laser power of 5,0 kW.

Overview

brand: TRUMPF
year: 2008
MODEL: laser 5040
production hours: 32093
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF laser 5040

Control Unit

Model: Sinumerik 840D
Brand: TRUMPF

Main drive

Laserpower: 5,0 kW

Table

Outer length: 4000 mm
Outer width: 2000 mm
Height adjustment: 115 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine is for oversize panels (4x2m)
- - Incl. Ball joints for tube lasering
- - Closed machine frame with the integrated laser unit
- - Motion unit for high precision machining
- - Automatic pallet changer
- - Longitudinal conveyor belt
- - Gantry drive in combination with linear direct drives
- - Cutting head quick-change unit
- - Laser cutting head with 7. 5" and 10" lens on truflow 6000
- - Laser cutting head with 5" and 7. 5" lens on truflow 5000
Qualitative Machine Benefits:
- - Cooling unit
- - Laser control tasc 3
- - Nitroline, focus line, plasma line
- - Closed beam guidance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
