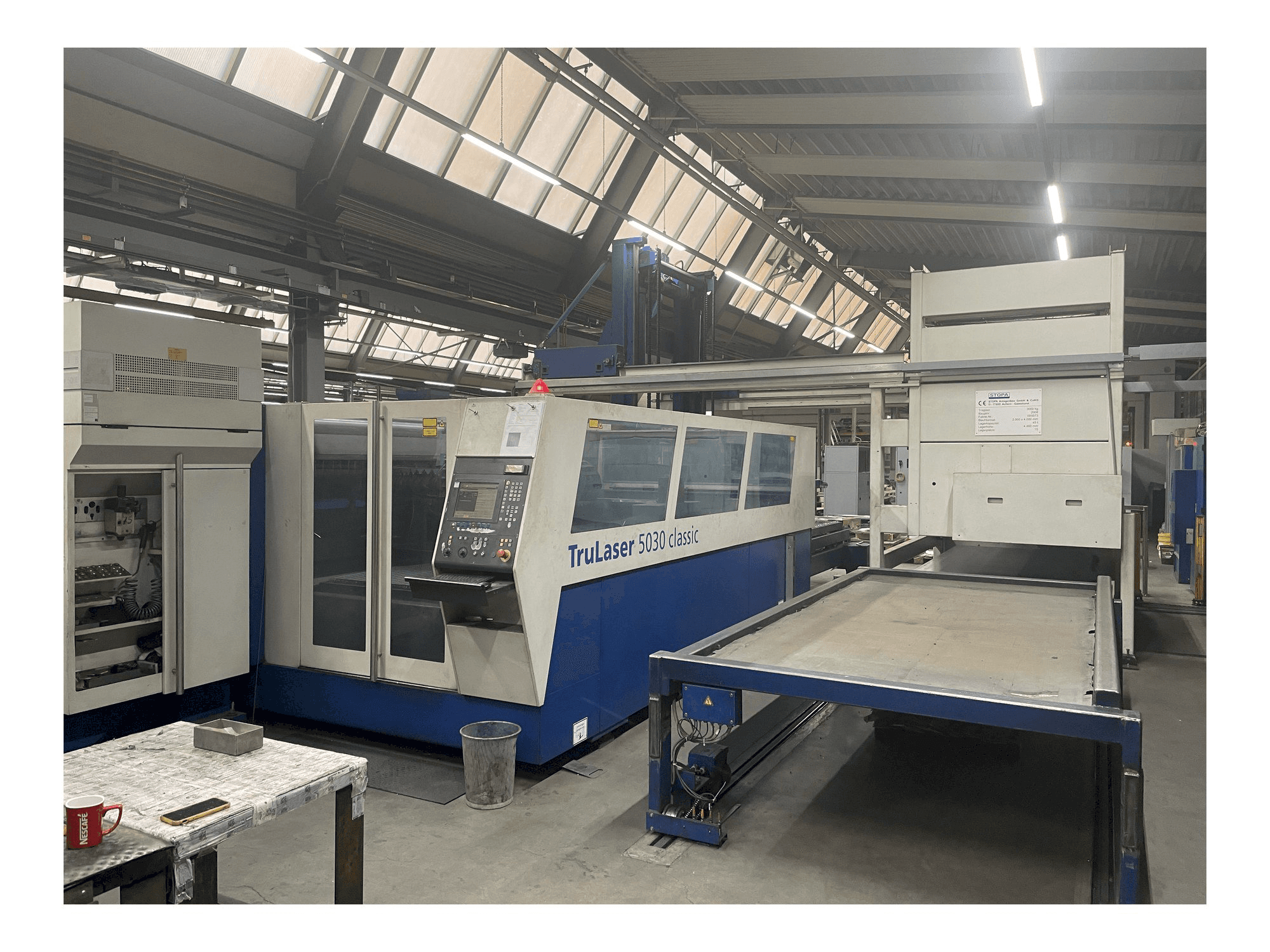

TRUMPF L5030 Classic + Pallet Master Laser cutting machine

Show in original language

This TRUMPF L5030 Classic + Pallet Master Laser cutting machine was manufactured in the year in Switzerland and has 76018 Operating hours laser on, of which 41047 are operating hours beam on. It is equipped with a TAST TERMINAL control unit. The machine has a laser power of 5,0 kW.

Overview

brand: TRUMPF
year: 2007
MODEL: L5030 Classic + Pallet Master
production hours: 76018
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF L5030 Classic + Pallet Master

General Data

Measurements width: 11100 mm
Measurements depth: 4600 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Laserpower: 5,0 kW

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Power consumption: 105 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working area laser operation: 3000 x 1500 x 115 mm
- - Standard equipment - closed machine frame with integrated laser unit - gantry drive in combination with linear drives - automatic pallet changer - longitudinal conveyor belt
- - Work area lighting - pcs position laser diode - oil spraying device - hi-las - hi-las plus - pms trumpf laser: - co2 laser tfl 5000
- - Cooling unit - high-frequency excitation - laser power control - programmable cutting gas pressure setting - dias iii
- - Autolas plus - oil spraying device for safe thick sheet processing - automatic switch-off - programmable power cycles
- - Logbook function laser control: - siemens sinumerik 840 d - automatic switch-off - capacitive height control
- - Contourlas - sprintlas - teleservice - 3. 5" floppy disc drive - rj-45 connection safety: - light barriers
- - Automation: palletmaster (stopa) - 10 storage locations - 10 auxiliary machine pallets - vacuum suction cups for loading raw sheet metal - clearance station, spare control cabinet and spare control unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
