TRAUB TNL 32G Lathe

Show in original language

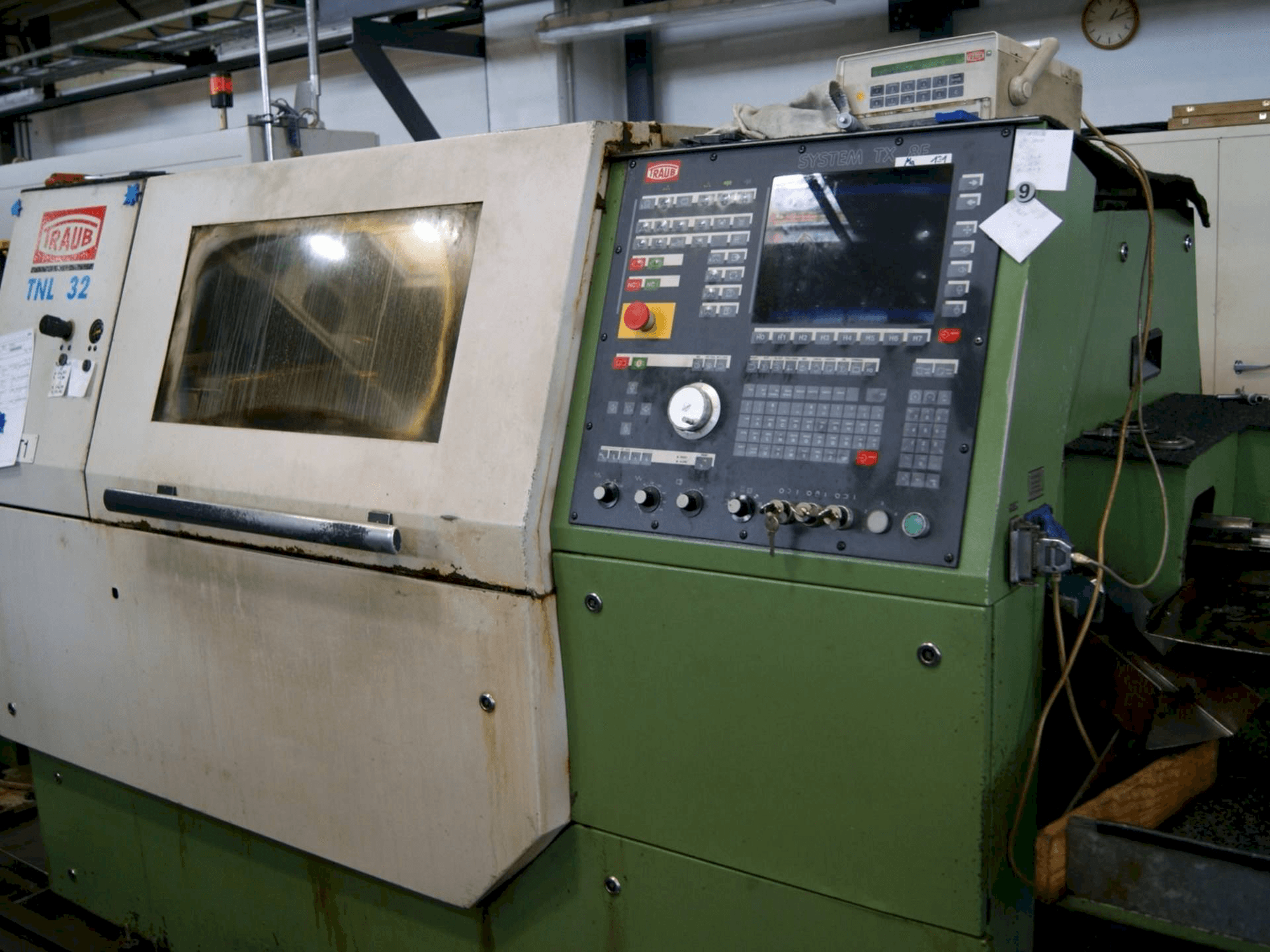

This TRAUB TNL 32G Lathe was manufactured in Germany in 1994 and has been working for 20150 hours since then. Equipped with a Traub System TX 8F Control unit, this machine incorporates 2 spindles and 2 turrets.

Overview

brand: TRAUB
year: 1994
MODEL: TNL 32G
production hours: 20150
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Sold

Technical Information - TRAUB TNL 32G

General Data

Machine weight: 4800 kg

Control Unit

Model: System TX 8F

Main drive

Number of spindles: 2

Movement

X-AXIS Movement: 60/180 mm
Z-AXIS Movement: 320/1200 mm

Workpiece

Workpiece drm: 300 mm

Turret

Number of turrets: 2

Additional equipment

- Bar Feeder LNS

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hole thru spindle 32 mm
- - Turret head 1: x - 60mm, z - 320mm
- - Turret head 2: x - 180mm, z 1200mm
- - Main spindle 6. 9 kw, c axis
- - Sudspindle 4. 4kw - c axis
Qualitative Machine Benefits:
- - Regularly maintained, good condition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
