TRAUB TNC 65 DGY Lathe

Show in original language

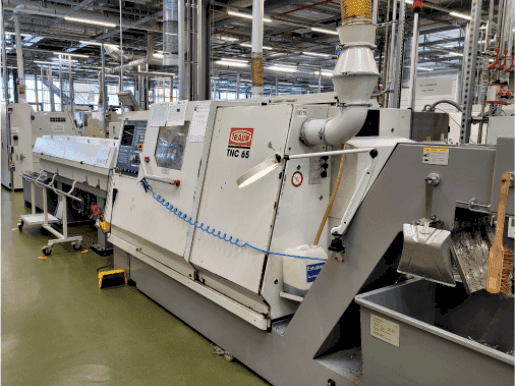

This TRAUB TNC 65 DGY Lathe was made in the year 1996 and has 37912 production hours. It is equipped with a Traub TX8F control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: TRAUB
year: 1996
MODEL: TNC 65 DGY
production hours: 37912
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - TRAUB TNC 65 DGY

General Data

Machine weight: 4725 kg

Control Unit

Model: TX8F

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 140 mm
X-AXIS Rapid traverse: 15000 mm/min
Y-AXIS Movement: ±35 MM
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 30000 mm/min

Tools

Type of tool holder: DIN 69693 - VDI 25

Media

Power consumption: 54 kW / 85 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity: 65 mm
- - Counter spindle: 4. 000 1/min
- - Pneumatic gripper unit
- - Stamag dn61 3m length
- - Collet chuck hainbuch
- - 2 turrets a 14 tools
- - Ikz unit
- - Coolant tank

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
