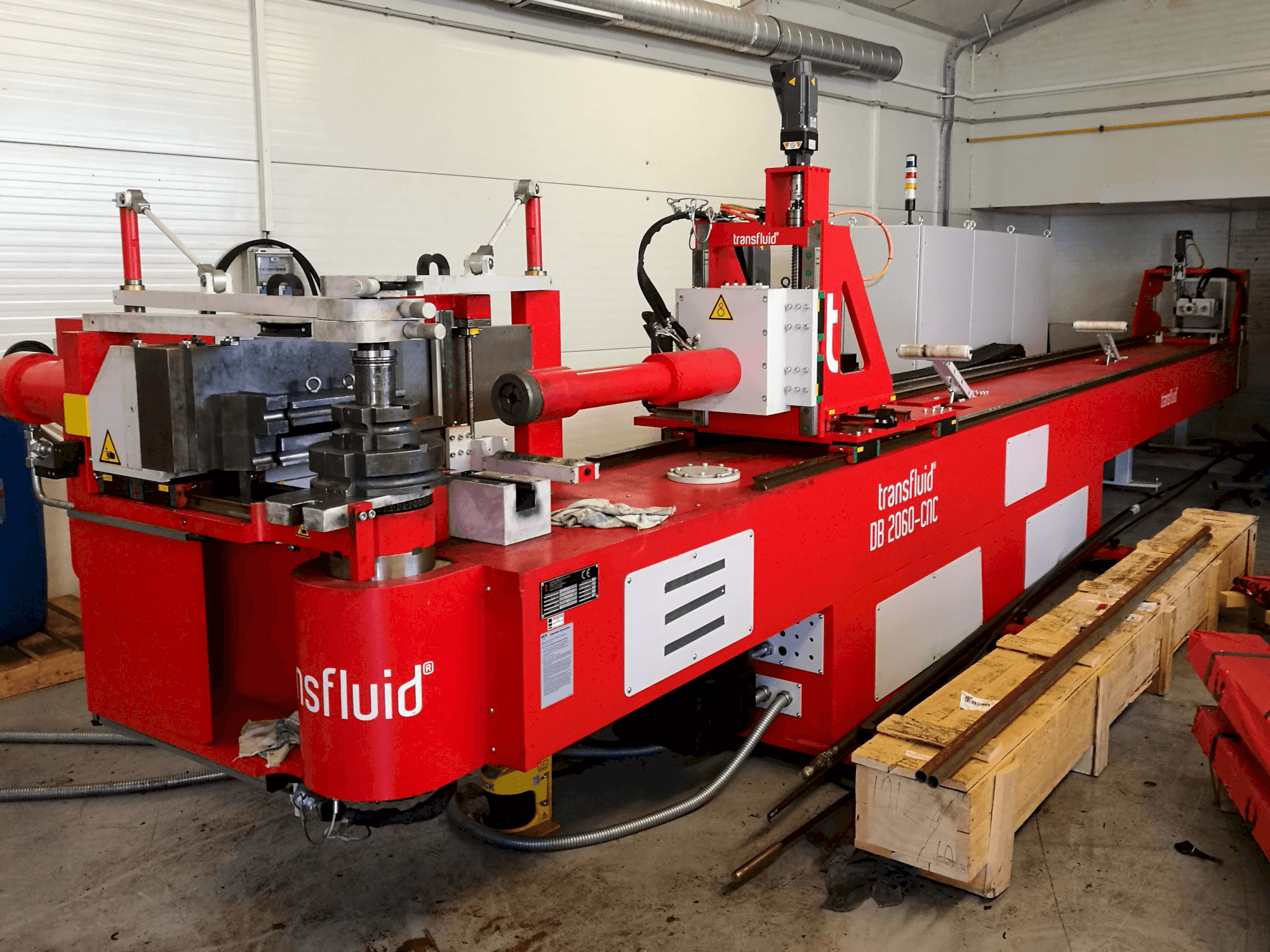

Transfluid DB 2060 Bending Machine

Show in original language

This Transfluid DB 2060 Bending Machine from Germany was built in 2011 and has an overall production time of only 251 working hours. Operated through a SIEMENS Multi Panel, this almost new model counts with a bending speed of 65° per second and a tool changer with 3 positions. Furthermore, it has a tube feed rate of 1200 mm/sec, with an extra tube length up to 6500 mm. This machine comes equipped with various rich accessories.

Overview

brand: Transfluid
year: 2011
MODEL: DB 2060
production hours: 251
application type: Bending
Location: Czech Republic
machine type: Roll Bending Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Transfluid DB 2060

General Data

Measurements width: 8600 mm
Measurements depth: 1800 mm
Measurements height: 1500 mm
Machine weight: 6200 kg

Control Unit

Model: Simatic Mulit Panel
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Bending length: 6500 MM

Max Material thickness

Steel: 60x5 mm
Stainless steel: 60x3 mm

Media

Main electronic connection: 400 V

Additional equipment

- Set of mandrels for tube walls (1.5 - 2 mm)
- tube Ø 25mm R 80,125
- tube Ø 32mm R 100
- tube Ø 34mm R 125
- tube Ø 60,3mm R 100, 190, 250
- tube Ø 60,3mm, free bending 8xD
- square tube 25x25x2 R 75 mandrel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
