➤ Used TORNOS EvoDECO 16/10 For Sale | gindumac.com

Show in original language

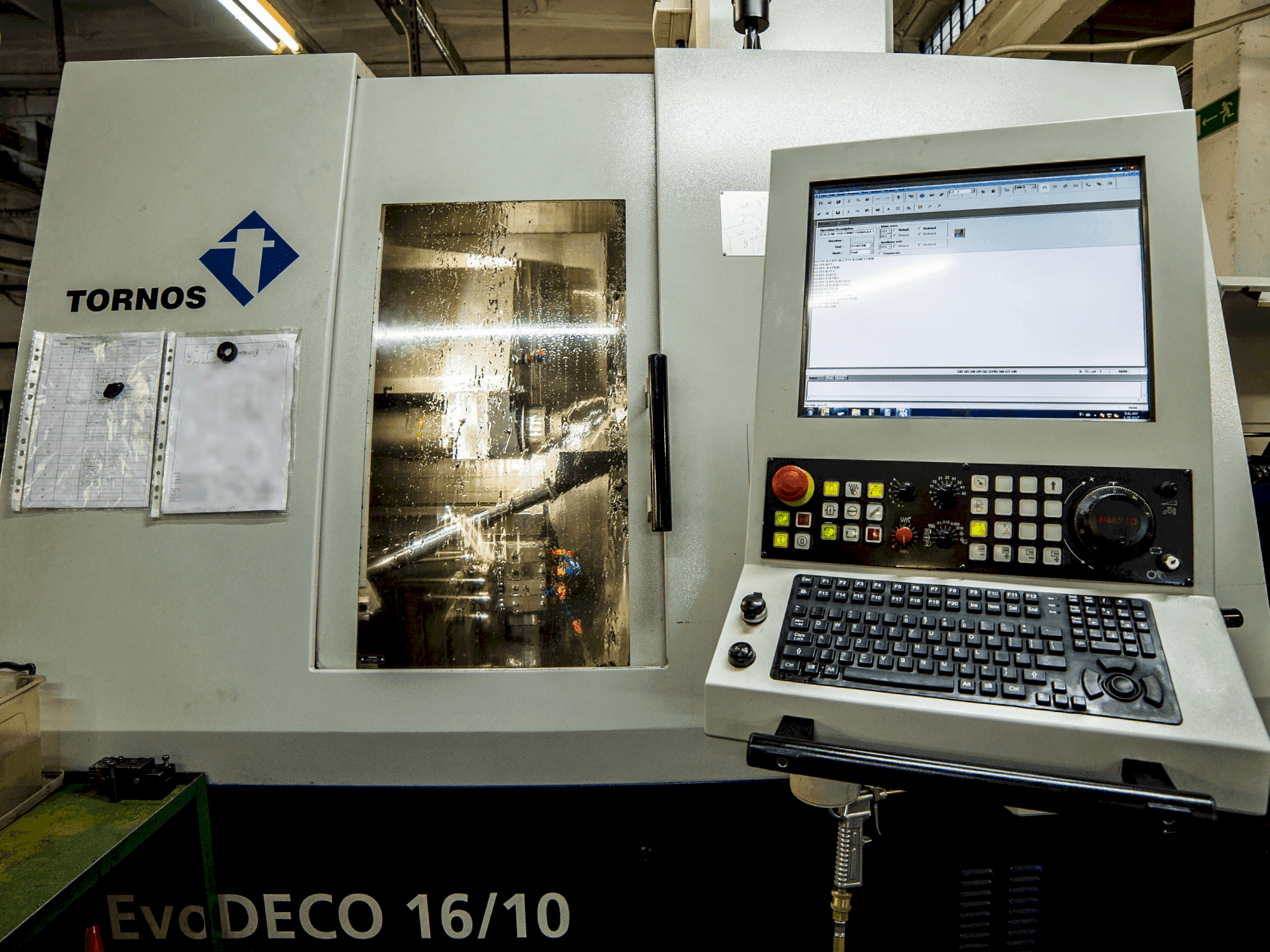

This 10-axis Tornos EvoDECO 16/10 was manufactured in 2015, featuring a bar capacity of Ø2-16 mm and up to 27 tools, including 21 rotating tools. It operates with a main spindle power of 98 kW and a counter-spindle power of 12 kW, achieving spindle speeds up to 8000 rpm. Suitable for short workpieces, it includes a 3 meters bar feeder Tornos SBF-216. For more information about this swiss type turning machine, please reach out to us.

Overview

brand: TORNOS
year: 2015
MODEL: EvoDECO 16/10
production hours: 36800
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - TORNOS EvoDECO 16/10

Control Unit

Model: 31i
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 98 / 12 kW

Additional equipment

- 3 meters bar feeder Tornos SBF-216 (2015)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque on main spindle and counter-spindle: 121 / 158 nm
- - Max bar diameter: Ø2-16 mm
- - Independent tool systems: 4 systems, simultaneous operation of 4 tools
- - Operation without guide bush: suitable for short workpieces with a length-to-diameter ratio of less than 3
- - Bar remnant length: minimum of 41 mm (approximately 100 mm shorter than with guide bush)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
