- Takamaz mini-TURN Lathe

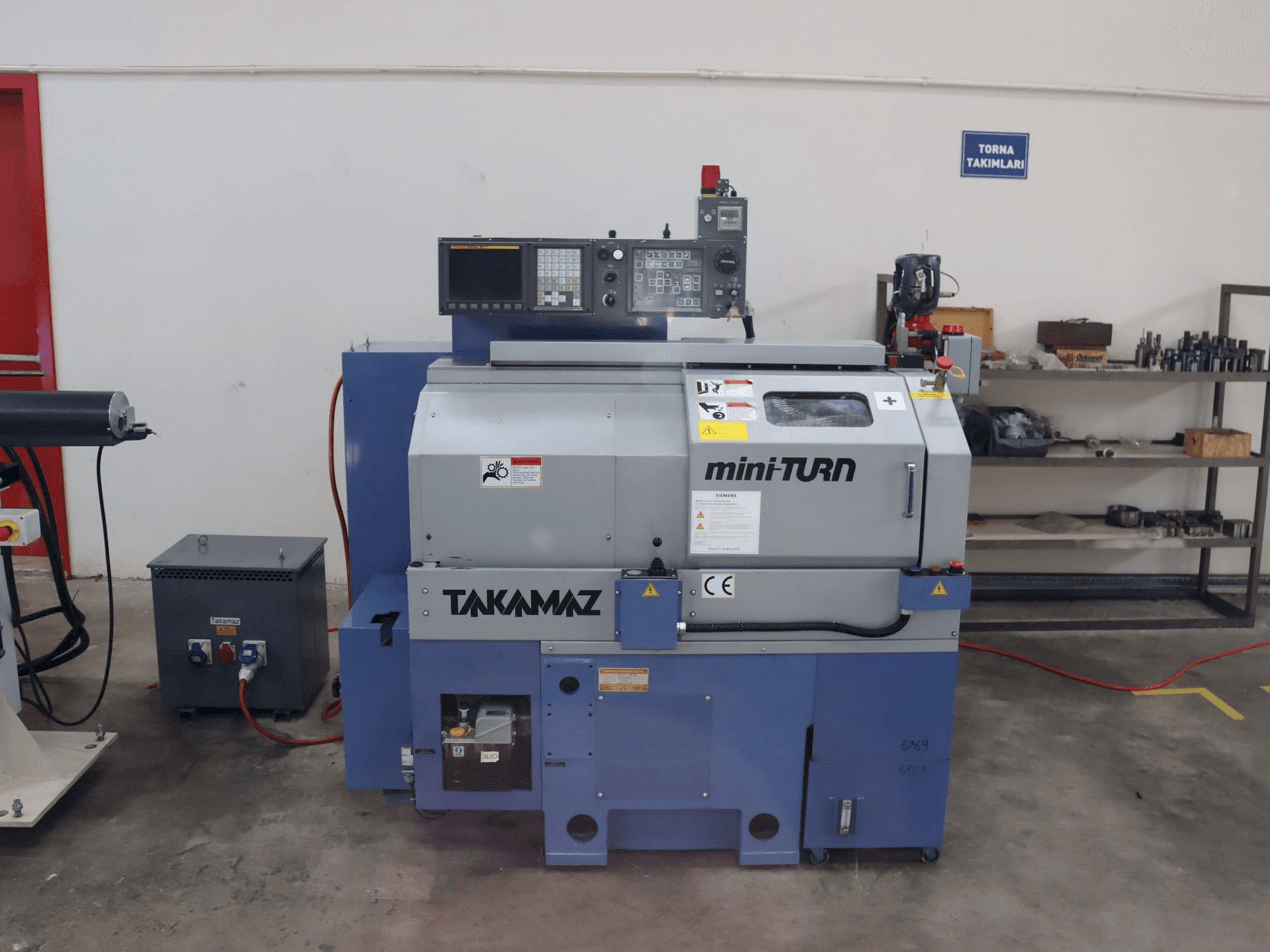

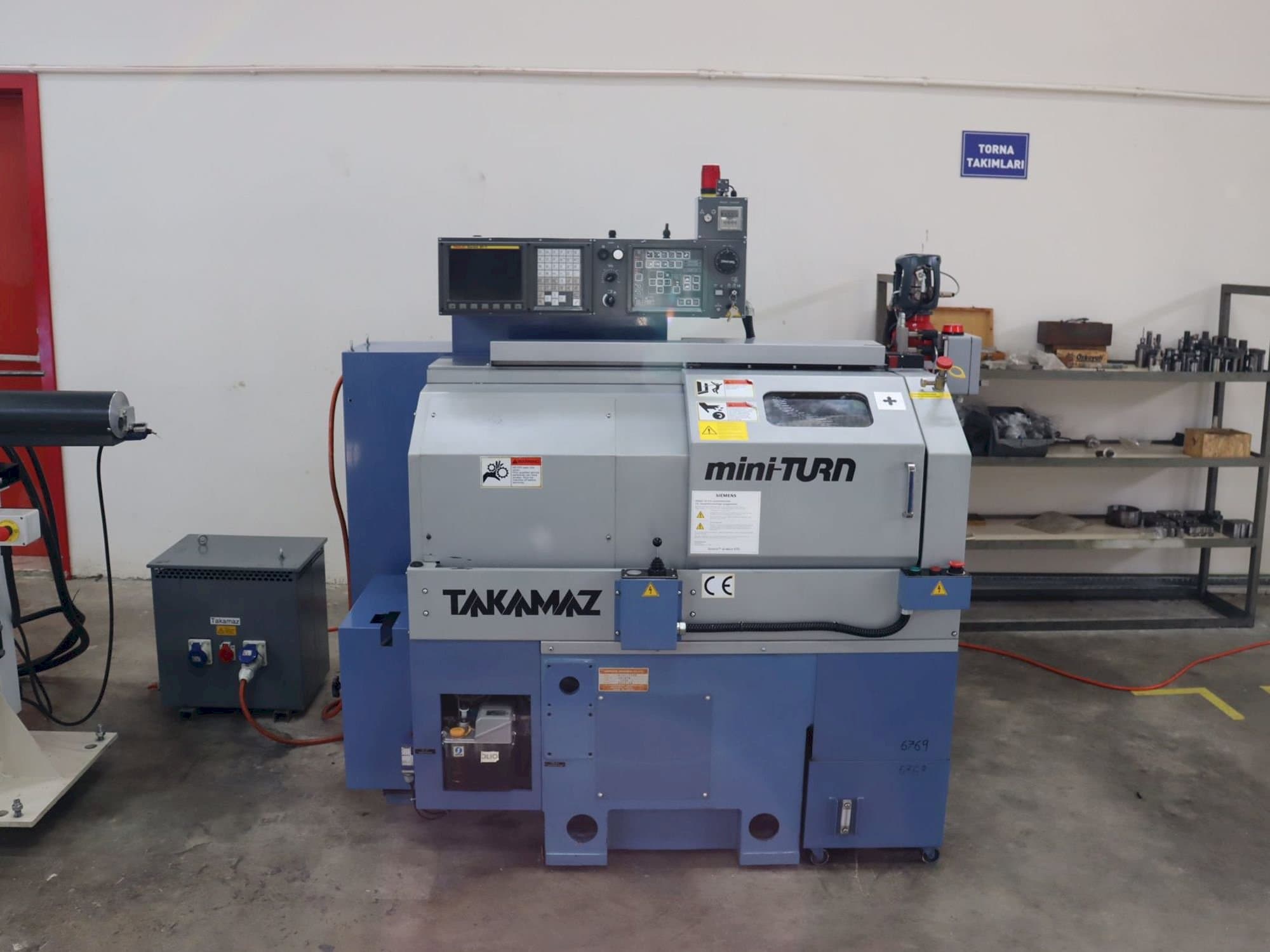

This Takamaz mini-TURN Lathe was manufactured in the year 2010. It is equipped with a FANUC 21T-B control unit. It can works with spindle speed range 250 - 4500 rpm. The machine is suitable for cortical screw manufacturing, has an automatic download available and 2 nakanishi 60000 rev live tools.
Overview
- brand: Takamaz
- year: 2010
- MODEL: mini-TURN
- application type: Turning
- Location: Turkey
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - Takamaz mini-TURN
General Data
- Measurements width: 1300 mm
- Measurements depth: 1050 mm
- Measurements height: 1435 mm
- Machine weight: 1080 KG
Control Unit
- Brand: FANUC
- Model: 21T-B
Main drive
- Spindle speed range: 250 - 4500 1/MIN
- Spindle motor power: 2.2 / 3.7 kW (inverter)
Additional Information
- Technical Machine Benefits:
- - Suitable for cortical screw manufacturing
- - Automatic download available
- - Includes 2 nakanishi 60000 rev live tools
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
