Suprema DX510 - SupremDE-WAT-WAT-2017-00001
Do you have further questions? Contact us.
![sales contact](https://storage.googleapis.com/gindumac-public/team/sergi_guardia.jpg)
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Sheet Metal Machinery
- Waterjet Suprem Waterjet cutting machine

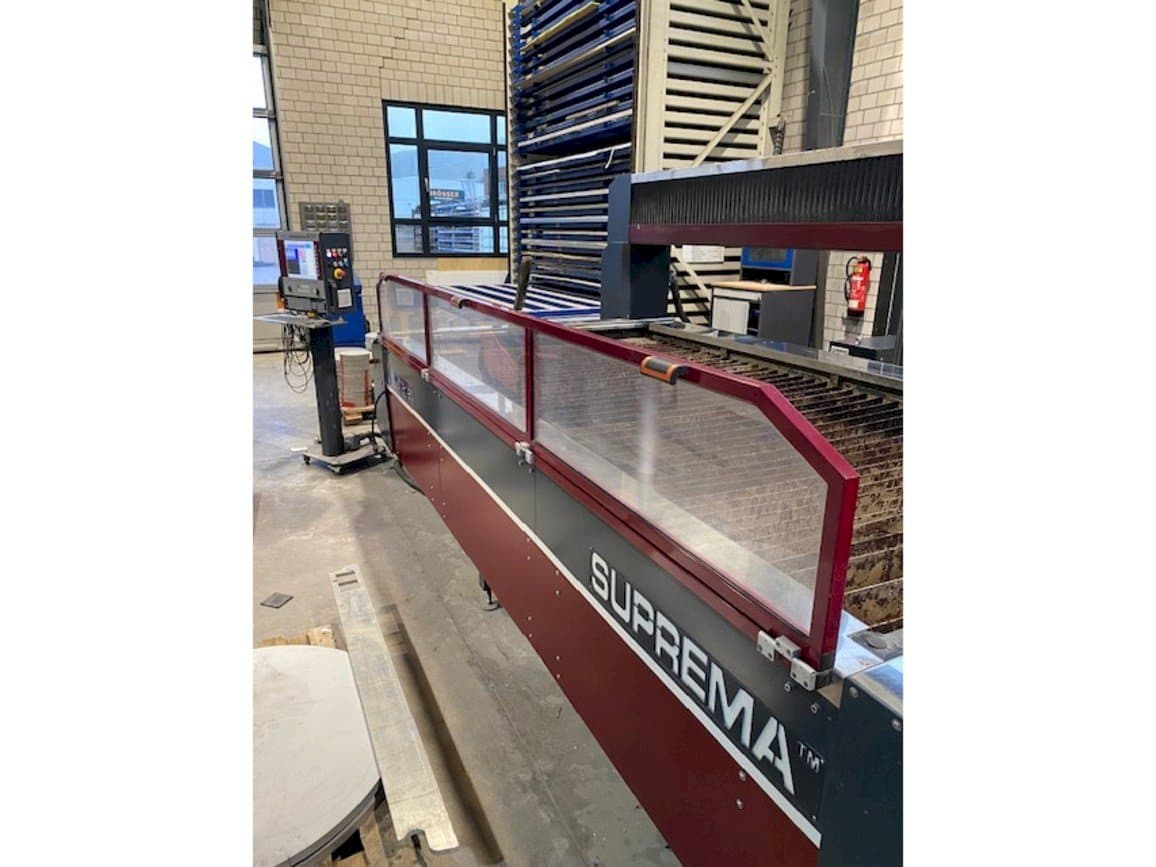

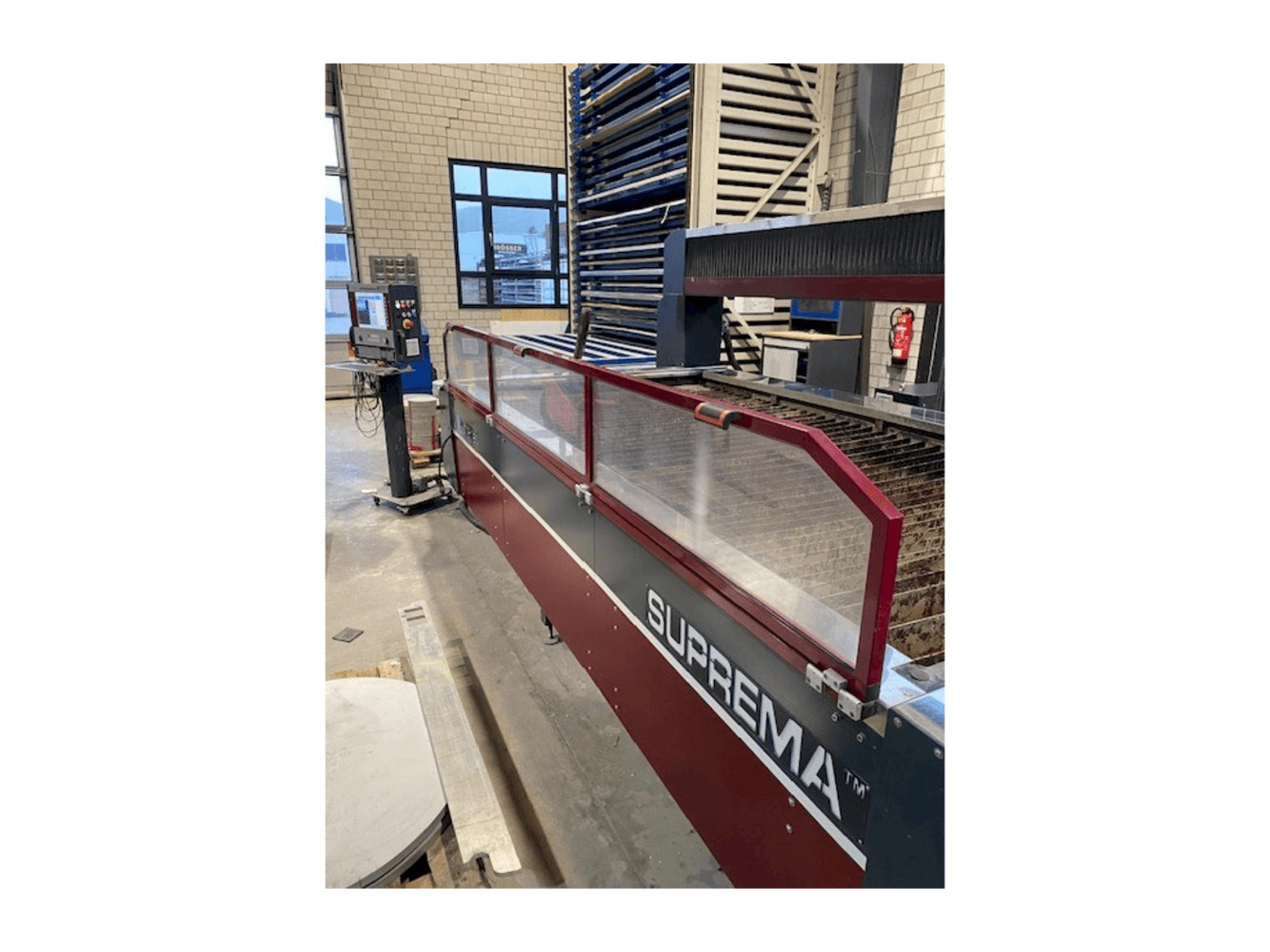

This Waterjet Suprem Waterjet cutting machine was manufactured in the year 2017 in Italy and has 662 production hours. It is equipped with a Waterjet control unit.
Overview
- brand: Suprema DX510
- year: 2017
- MODEL: Suprem
- production hours: 662
- application type: Cutting
- Location: Germany
- machine type: Water Jet Cutting Machine
- availability: Sold
- control unit brand: WATERJET
Technical Information - Suprema DX510 Suprem
Control Unit
- Brand: WATERJET
Additional Information
- Technical Machine Benefits:
- - Worktable dimensions: x 3,350 mm y 1,600 mm z 180 mm // work table height x-y 800 mm
- - Loading zone dimensions x 3,675 mm y 1,900 mm
- - External table dimensions: x-axis 4,460 mm y-axis 2,300 mm z-axis 1,800 mm
- - Mechanical accuracy x-y ± 0. 05 mm
- - Repeat accuracy: x-y ± 0. 025 mm
- - Ball bar: x-y ± 0. 05 mm (Ø 300 mm)
- - Maximum speed ± 20 mt/min
- - Programming software from ‘igems’
- - 4,130 bar high-pressure pump 37kw
- - The sand storage container was enlarged to approx. 2 cbm
- - machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
