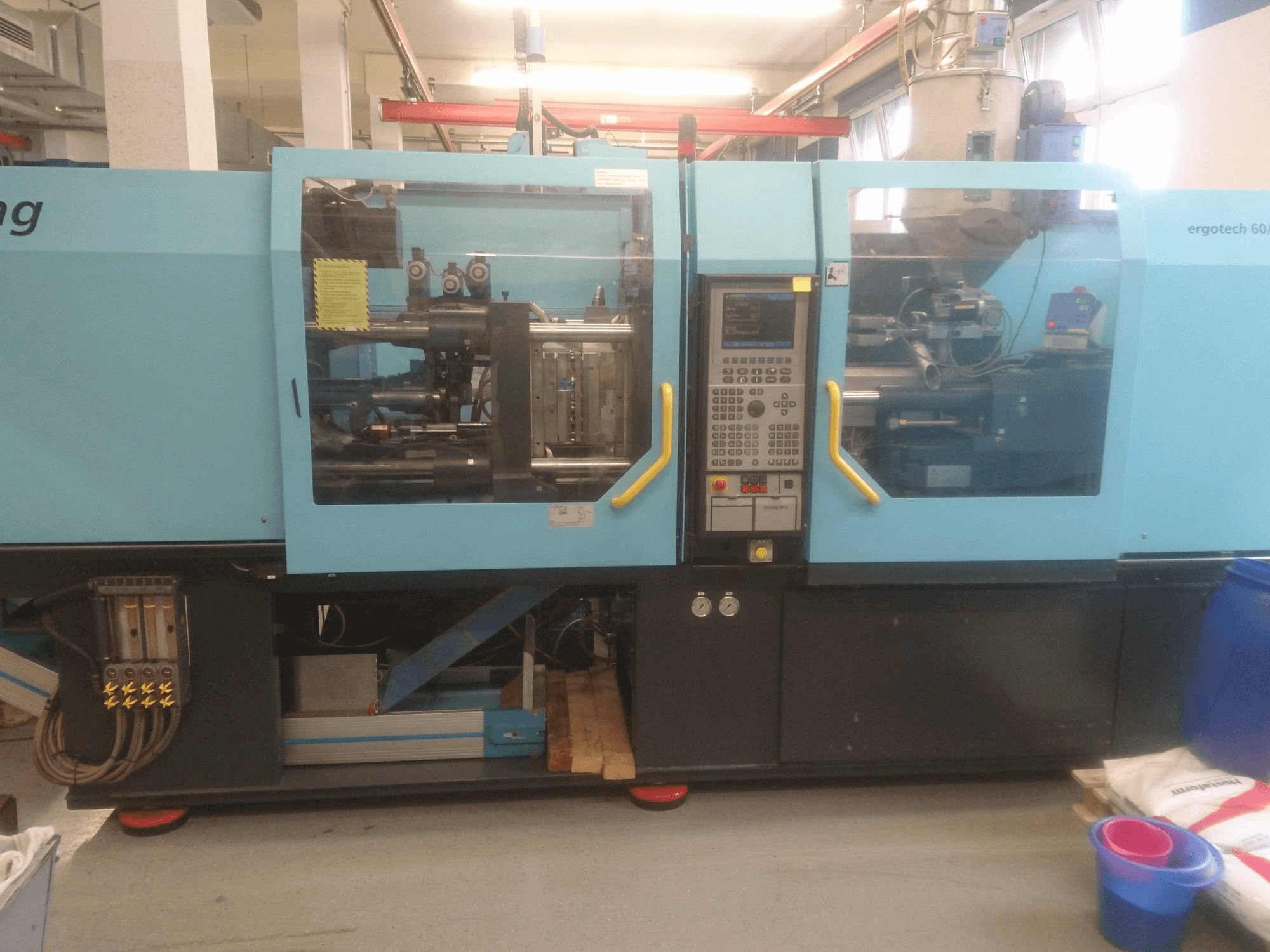

DEMAG Ergotech 60/370-310 EL EXIS E Injection Moulding Machine

Show in original language

This DEMAG Ergotech 60/370-310 EL EXIS E Injection Moulding Machine was built in 2001 in Germany and has been working for 83000 hours. This well maintained machine works with a clamping force of 660 kN and an in injection pressure of 1865 bar.

Overview

brand: SUMITOMO SHI DEMAG
year: 2001
MODEL: Ergotech 60/370-310 EL EXIS E
production hours: 83000
application type: Injection Moulding
Location: Germany
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 60/370-310 EL EXIS E

General Data

Measurements width: 4600 mm
Measurements depth: 1500 mm
Measurements height: 2100 mm
Machine weight: 5500 kg

Injection Unit

Screw diameter: 35 mm
Shot weight: 150 g/PS
Stroke volume: 168 cm³
Injection pressure: 1865 bar
Heating capacity: 9.4 kW

Clamping unit

Clamping force: 660 kN
Opening stroke: 350 mm
Distance between bars: 710 mm
Mould height min: 160 mm
Mould height max: 360 mm
Size of mold platens: 600x600 mm
Ejector stroke: 100 mm
Ejector force for / back: 34 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spruce picker
Qualitative Machine Benefits:
- - Very good condition, well maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
