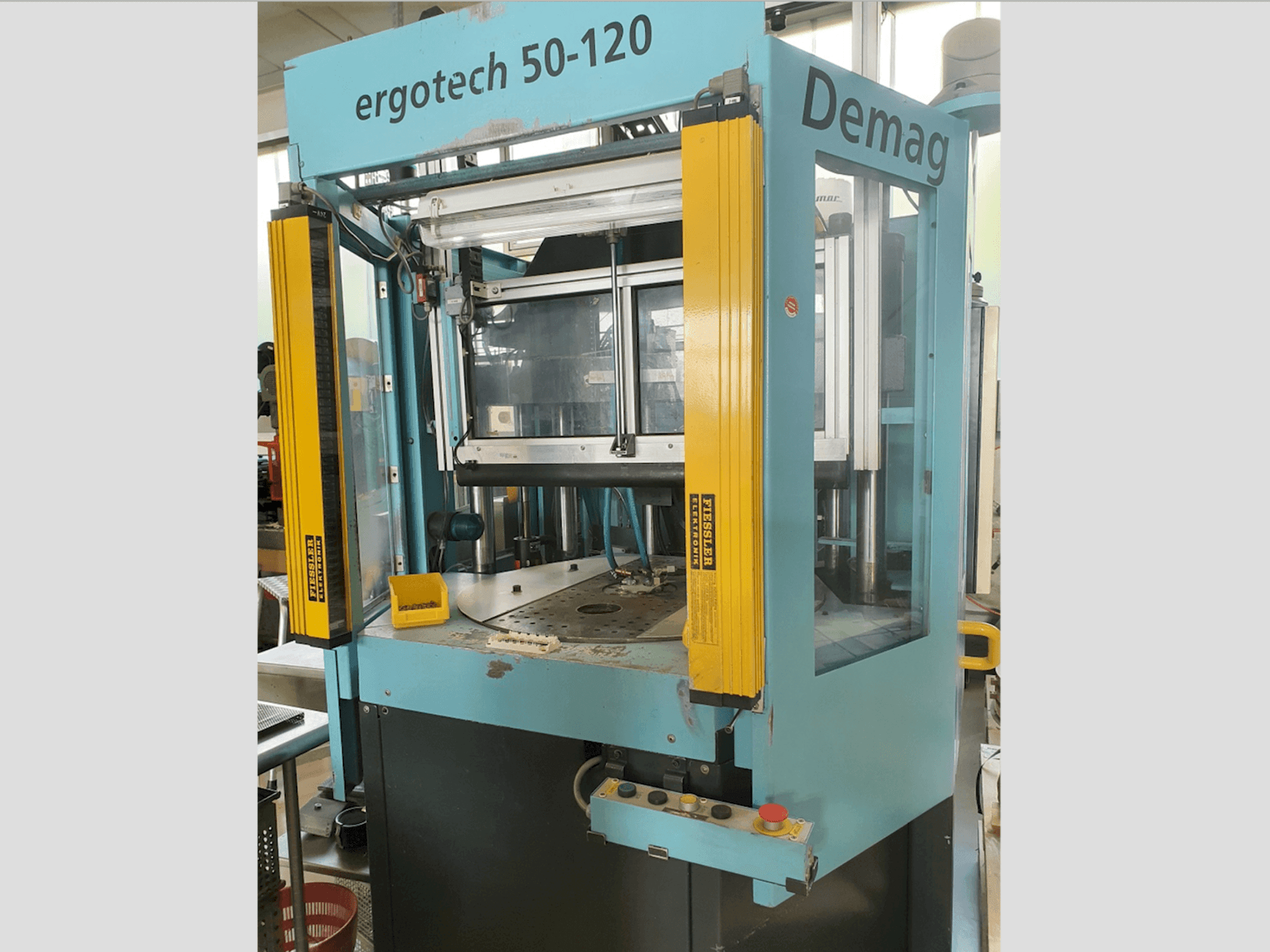

This DEMAG Ergotech 50-120 Injection Moulding Machine was built in 2001. This machine can perform with a clamping force of 500 kN and a screw diameter of 25 mm.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2001
- MODEL: Ergotech 50-120
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - SUMITOMO SHI DEMAG Ergotech 50-120
General Data
- Measurements width: 3650 mm
- Measurements depth: 1450 mm
- Measurements height: 1800 mm
- Machine weight: 3100 kg
Main drive
- Main motor power: 15 kW
Injection Unit
- Injection pressure: Injection Pressure: 2400 bar
Clamping unit
- Clamping force: 500 kN
- Opening stroke: 400 mm
- Max open daylight: 610 mm
- Distance between bars: 355 mm x 355 mm
- Mould height min: 210 mm
Additional Information
- Technical Machine Benefits:
- - Screw diameter: 25 mm
- - Injection volume: 61 ccm / 54 gram ps
- - Heating power: 5,1 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
