SUMITOMO SHI DEMAG - Ergotech 200-840 CompactIE-INJ-DEM-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG Ergotech 200-840 Compact Injection Moulding Machine

Show in original language

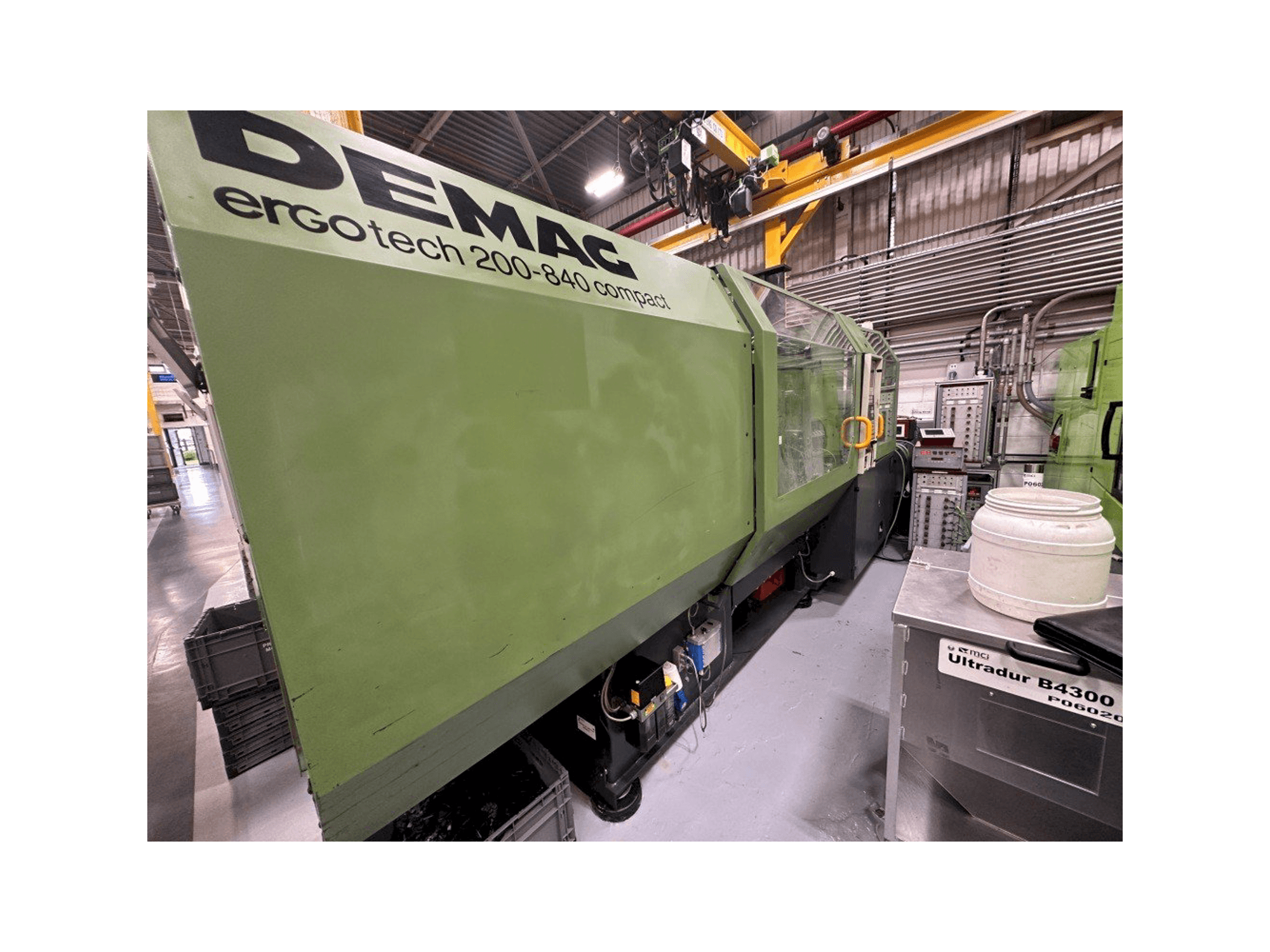

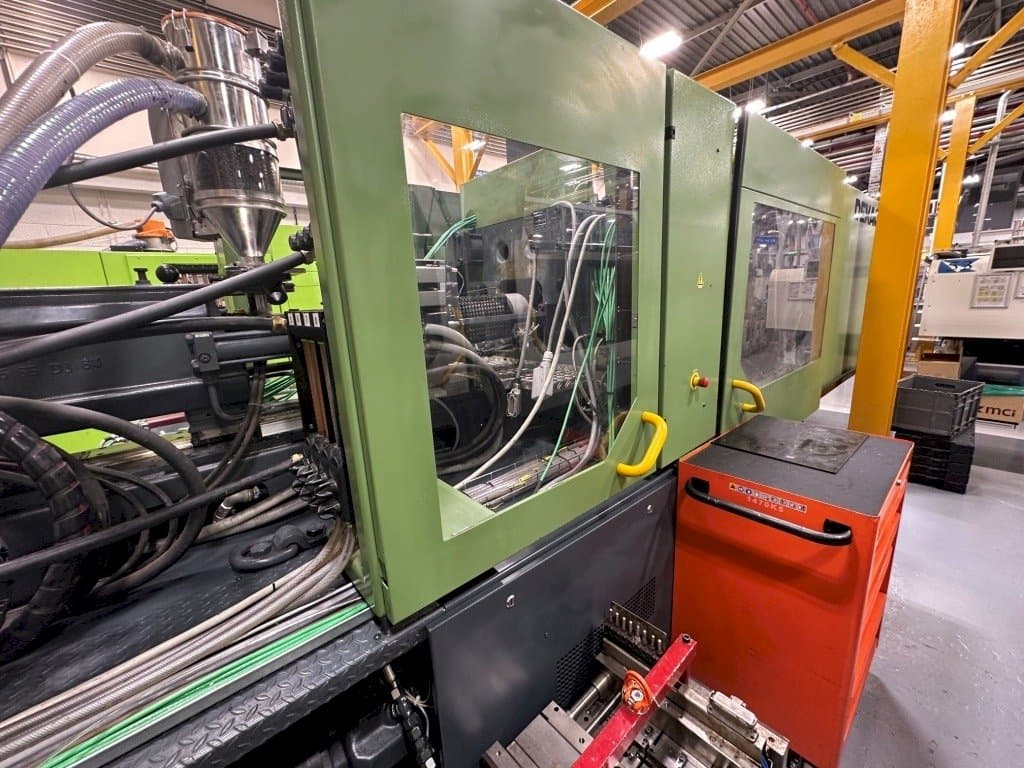

This DEMAG Ergotech 200-840 Compact Injection Moulding Machine was made in 1997 in Germany and has 123000 hours. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 2000 kN, a screw diameter of 45 mm and it is in very good condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 1997
MODEL: Ergotech 200-840 Compact
production hours: 123000
application type: Injection Moulding
Location: Ireland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 200-840 Compact

General Data

Measurements width: 5700 mm
Measurements depth: 1700 mm
Measurements height: 2100 mm
Machine weight: 10000 kg

Control Unit

Model: NC4
CNC main language: English
CNC language customizable: Yes

Injection Unit

Screw diameter: 45 mm
Shot weight: 326 g/ps
Stroke volume: 358 CM³
Injection pressure: 2400 bar

Clamping unit

Clamping force: 2000 kn
Opening stroke: 575 mm
Max open daylight: 1235 mm
Distance between bars: 560 mm
Mould height min: 310 mm
Size of mold platens: 830 mm
Ejector stroke: 180 mm
Ejector force for / back: 69 kn

Media

Main electronic connection: 400 V

Additional equipment

- Conveyor

Additional Information

Machine history

Material type: Plastic
End product: Automotive parts
Industries: Automotive industry

Machine Benefits

Technical Machine Benefits:
- - 200t machine
Qualitative Machine Benefits:
- - Very good condition
- - Well maintained

Extra information

- Hopper and Kistler Unit in photos not included in sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
