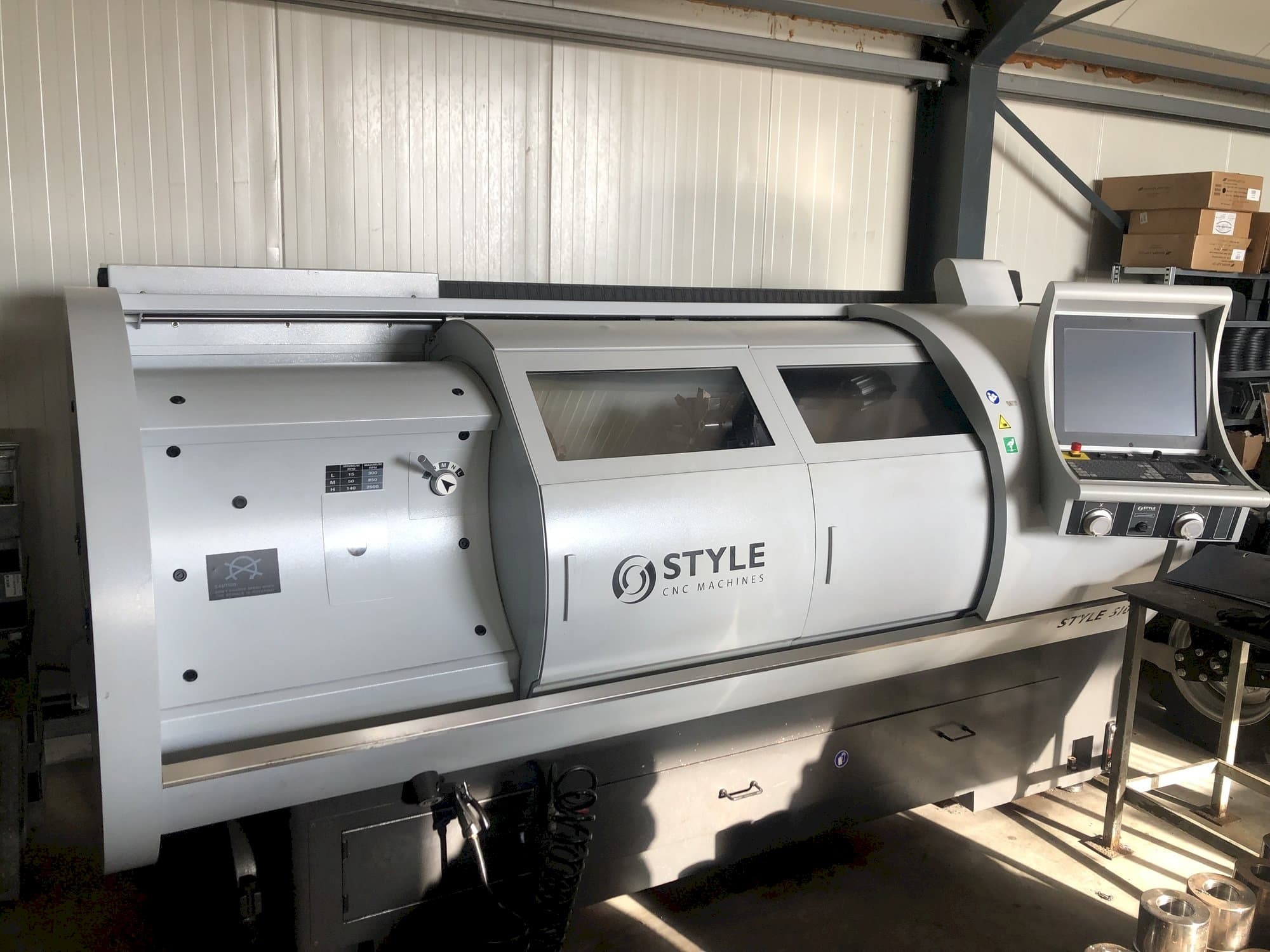

This Style 510 Lathe was manufactured in the year 2018 in The Netherlands and has 1434 hours, of which 457 are spindle hours. It is equipped with a Style control unit. The machine has a spindle speed of 2500 rpm.

Overview

brand: STYLE
year: 2018
MODEL: 510
production hours: 1434
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - STYLE 510

General Data

Measurements width: 3200 mm
Measurements depth: 1800 mm
Measurements height: 1800 mm
Machine weight: 2700 kg

Main drive

Spindle speed range: 2500 1/MIN

Additional equipment

- Automatic tool changer, 8 positions, VDI-40
- 11 kW main engine
- Stronger cooling pump incl. spray gun
- Coolant switch
- Speed potentiometer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter over bed: 510 mm
- - Turning diameter over support: 300 mm
- - Distance between centers: 1350 mm
- - Bed width: 330mm
- - Max. Weight between centers: 600 kg
- - Passage spindel: 80mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
