Starrett AVR 300 Measuring Machine

Show in original language

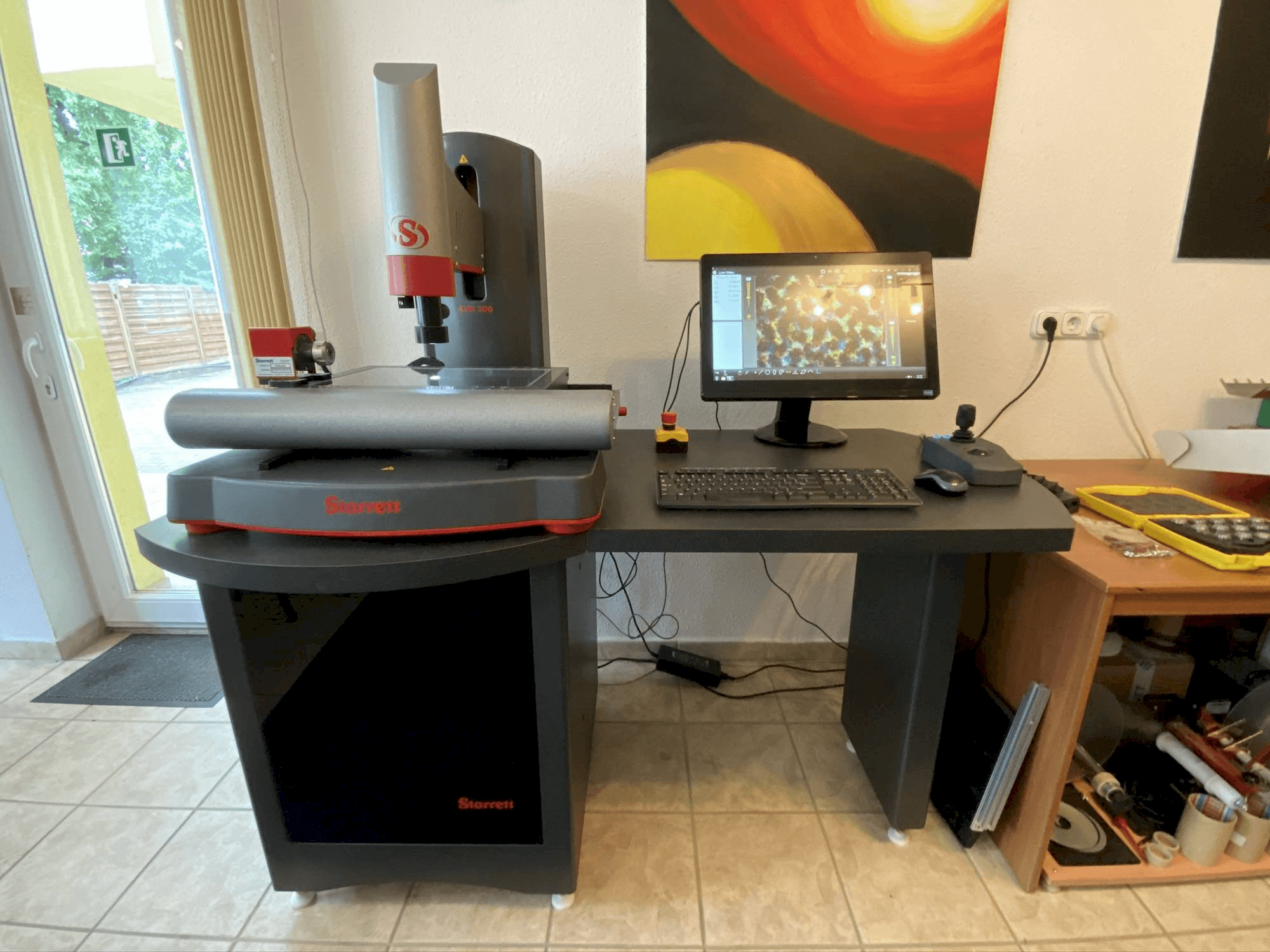

This Starrett AVR 300 Measuring Machine was manufactured in the United States in the year 2015. It is equipped with a software M3 control system. This model comes with a Measurement range of X = 300mm, Y=200mm, Z =200mm. It is equipped with an extra index axle. The machine is brand new, never used.

Overview

brand: Starrett
year: 2015
MODEL: AVR 300
production hours: 0
application type: Measuring
Location: Hungary
machine type: Optical Measurement Machine
availability: Sold

Technical Information - Starrett AVR 300

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 200 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Display: 21" touchscreen pc
- - Digital video camera: 1 mp color std. 2mp with telecentric
- - System type: bench top
- - Part view orientation: vertical
- - Z axis measuring: standard
- - X-y accuracy (µm): e2 = 1. 9 µm + 5l/1000
- - Z accuracy (µm): e1 = 2. 5 µm + 5l/1000
- - Scale resolution: 0. 1 µm
- - Zoom optics - standard: 6. 5:1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
