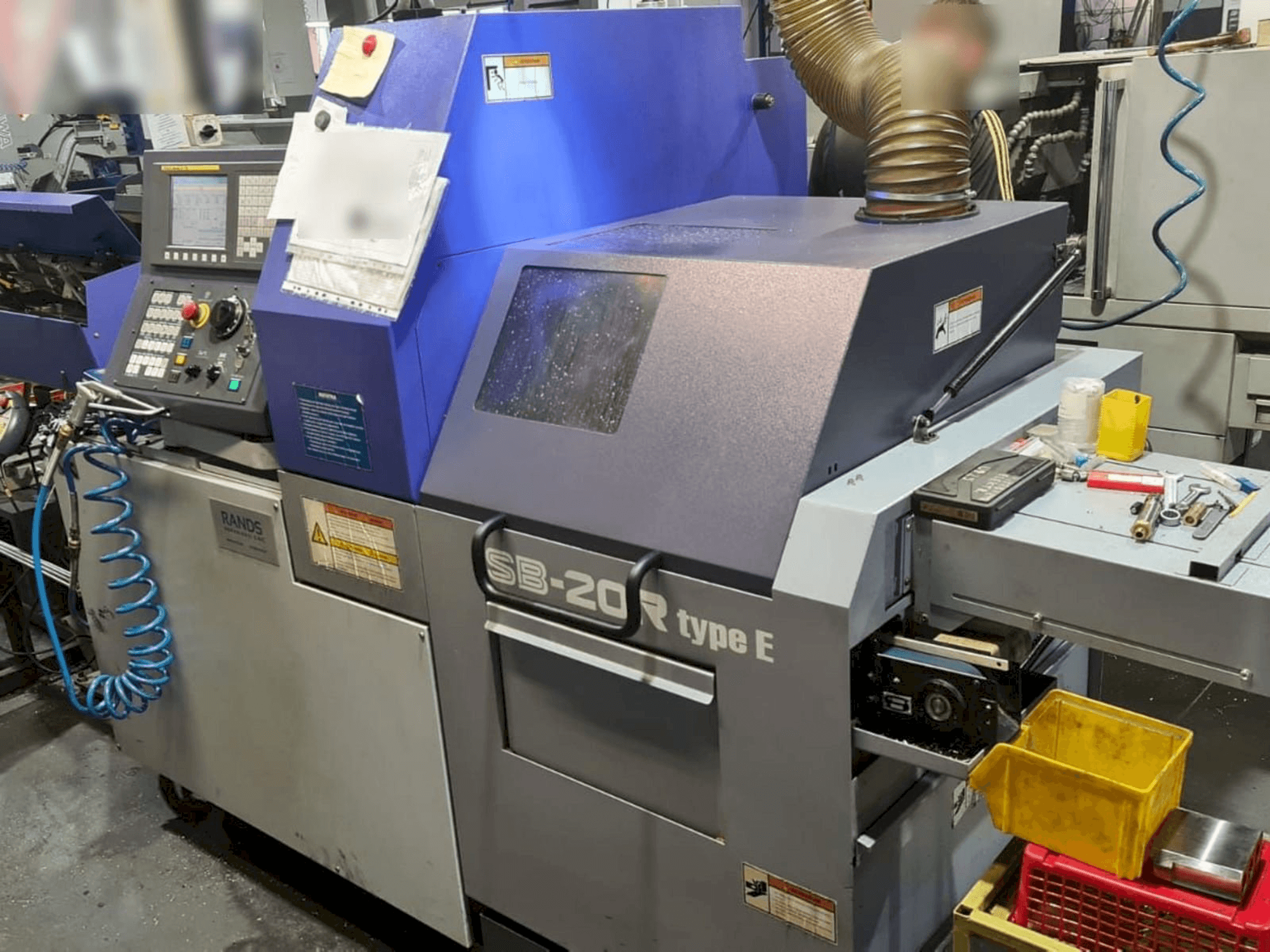

Star - SB-20R type EPL-TUR-STA-2014-00001

Additional equipment

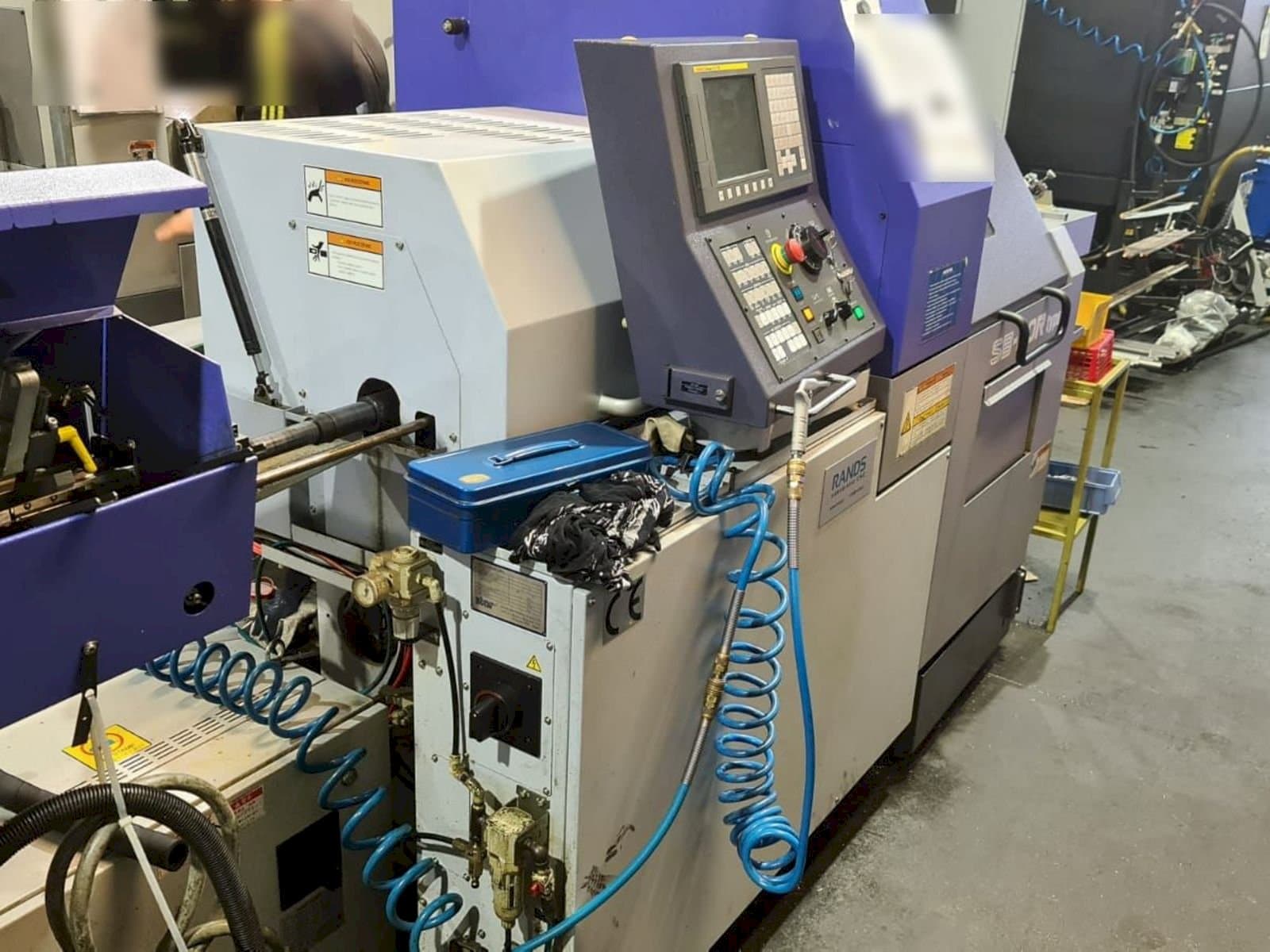

• - FMB Minimag 3200/20 - automatic bar loading magazine feeder: 1 pc
• - Toolholder for boring bars dia. 6mm - 2 pcs
• - Sleeve set - 1 set
• - Driven holder for milling and drilling ER16: 1 pc
• - Interception ER16 driven holder: 1 pc
• - Ejector for long workpieces with a guide tube 21 mm F25: 1 pc
• - Long workpiece ejector housing: 1 pc
• - Belt conveyor of details: 1 pc
• - High pressure pump NJ500-E 30 bar, 12 l / min: 1 pc
• - A kit with spare parts (all brand new)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Machining diameter: dia. 20 mm
  • - Max. Headstock stroke: 205 mm
  • - Rapid feed rate: 35m/min (x1, y1, z1, x2, z2)
  • - Counter spindle: yes
  • - Drive motor: 1. 0 kw (continuous) / 1. 2 kw (5min. / 30%ed)
  • - Number of turning tools: 6 pcs // number of driven tools: 4 pcs // number of drilling tools: 4 pcs for both spindles // additional drilling and milling tools for the counter spindle: 4 pcs
  • - Sub spindle speed: 9000 rpm
  • - Sub spindle motor: 0. 55 kw / 1. 1 kw (15min. / 40%ed)
  • - Main spindle indexing angle: c-axis control
  • - Sub spindle indexing angle: c-axis control
• Qualitative Machine Benefits:
  • - Machine in good working condition and still at the production
  • - 3 pcs of filters for the pump
  • - 1 pc. Roller shutter covering the z axis guides for the counter spindle
  • - 2 pcs of belts for the main spindle, a socket with bearings for the guide sleeve
  • - Set of rebound springs collets for both spindles
  • - Set of fingers to clamp the collets for both spindles
