STAR MICRONICS - SB-16DE-TUR-STA-2005-00001

Name: STAR MICRONICS SB-16
Brand: STAR MICRONICS
SKU: DE-TUR-STA-2005-00001
Price: 2603500 INR
Availability: InStock

Rs. 2,603,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used STAR MICRONICS SB-16 Lathe For Sale | gindumac.com

Show in original language

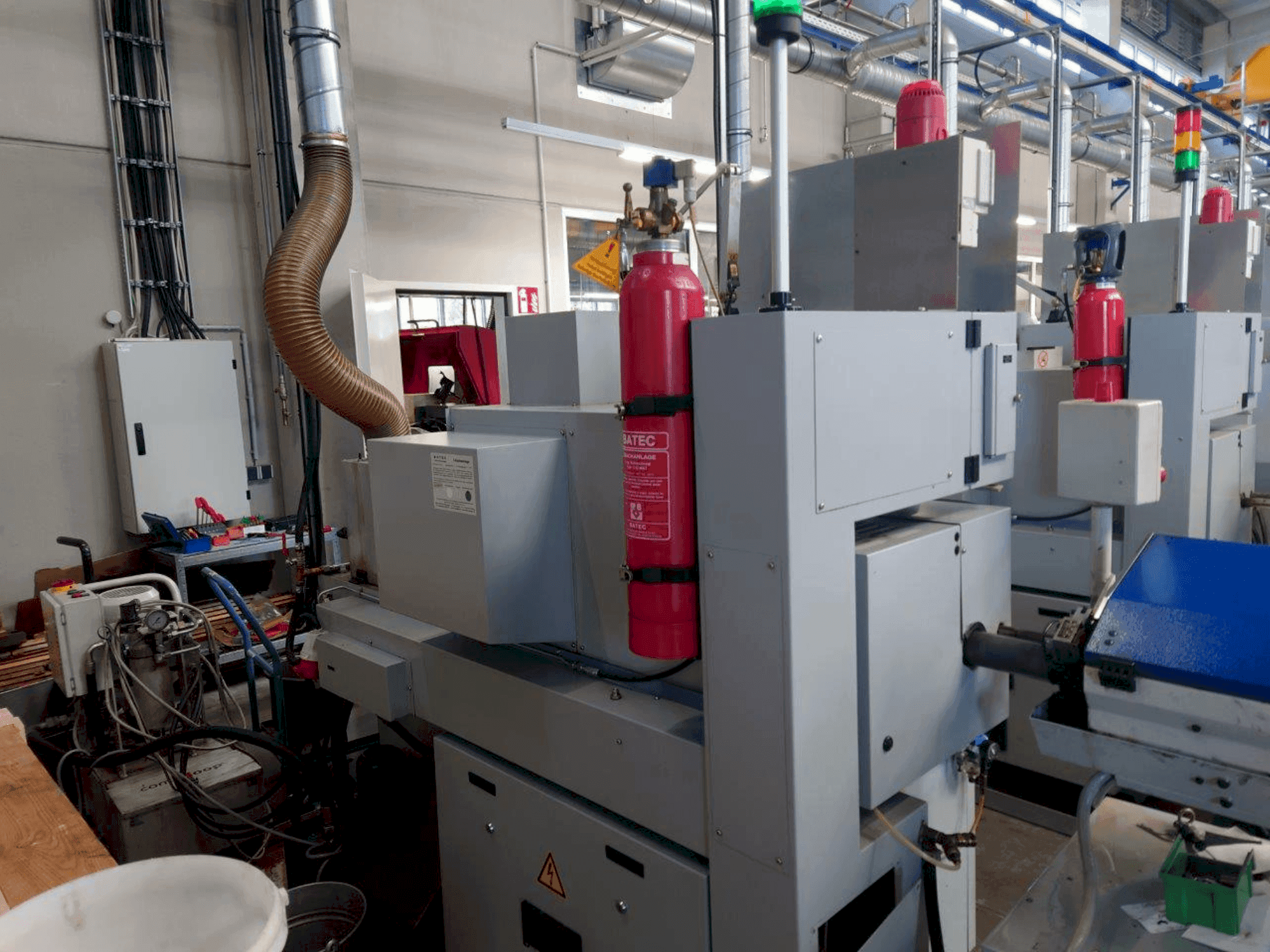

This STAR MICRONICS SB-16 lathe was manufactured in 2005. It features a Fanuc 18i-TB control, operates under oil, and includes a Batec extinguishing system. Equipped with a high-pressure Müller Combilop CL2 system at 70bar and an Iemca CH220/32L loading magazine for bar lengths up to 3.2m. Max. passage is ø16mm. It also has a parts conveyor belt and a counter spindle with Z-axis for versatile machining. For more information about this lathe, please reach out to us.

Overview

brand: STAR MICRONICS
year: 2005
MODEL: SB-16
production hours: 42012
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: Fanuc

Technical Information - STAR MICRONICS SB-16

General Data

Machine weight: 1600 kg

Control Unit

Brand: Fanuc
Model: 18i-TB

Main drive

Number of spindles: 1
Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 3.7 kW
Stroke: 205 mm

Workpiece

Workpiece x: 3200 mm

Tools

Number of stations: 10

Additional equipment

- Runs under oil
- Batec extinguishing system
- High pressure system Müller Combilop CL2, 70 bar
- Iemca CH220/32L loading magazine
- Parts conveyor belt
- Counter spindle with Z-axis, simple rear end machining

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6 stations for turning tools
- - 4 stations for front side machining
- - 2 driven tools for cross machining with 0. 4 kw, s max=7,500
- - Coolant system capacity: approx. 136 litres
- - Central lubrication: yes

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
