- SMERAL LDO 500S Stamping Machine

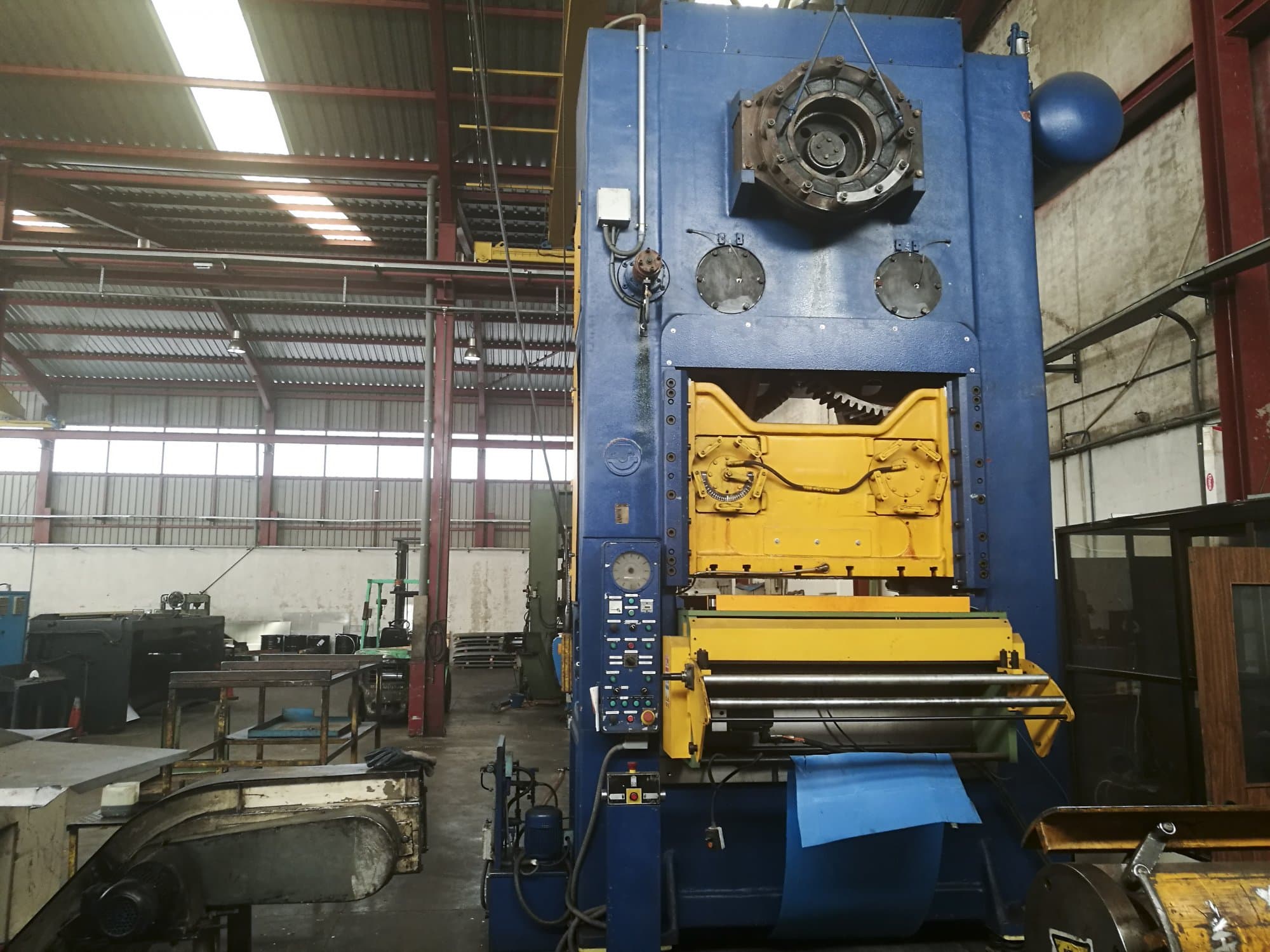

This SMERAL LDO 500S Stamping Machine from 1981 has a working record of about 10000 production hours since its manufacture and is operated through a SIEMENS Simatic Panel Control unit. This powerful 500 ton pressing machine stands out for incorporating a VIBRACHOC cushioning system. Upon request, a cutting line could be included as additional equipment.
Overview
- brand: SMERAL
- year: 1981
- MODEL: LDO 500S
- production hours: 10000
- application type: Stamping
- Location: Spain
- machine type: Hydraulic Stamping Press
- availability: Sold
- control unit brand: SIEMENS
Technical Information - SMERAL LDO 500S
General Data
- Measurements width: 2600 mm
- Measurements depth: 2450 mm
- Measurements height: 5650 mm
- Machine weight: 40000 kg
Control Unit
- Brand: SIEMENS
- Model: Simatic Panel
Main drive
- Stamping force: 4900 kN
- Distance between bars: 1600 mm
- Stroke: 50 mm
- Number of strokes: 43 1/min
Table
- Outer length: 1580 mm
- Outer width: 1100 mm
Additional equipment
- - Cutting line (upon request)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
