➤ Used RAVNE PRESSES Manzoni 315 For Sale | gindumac.com

Show in original language

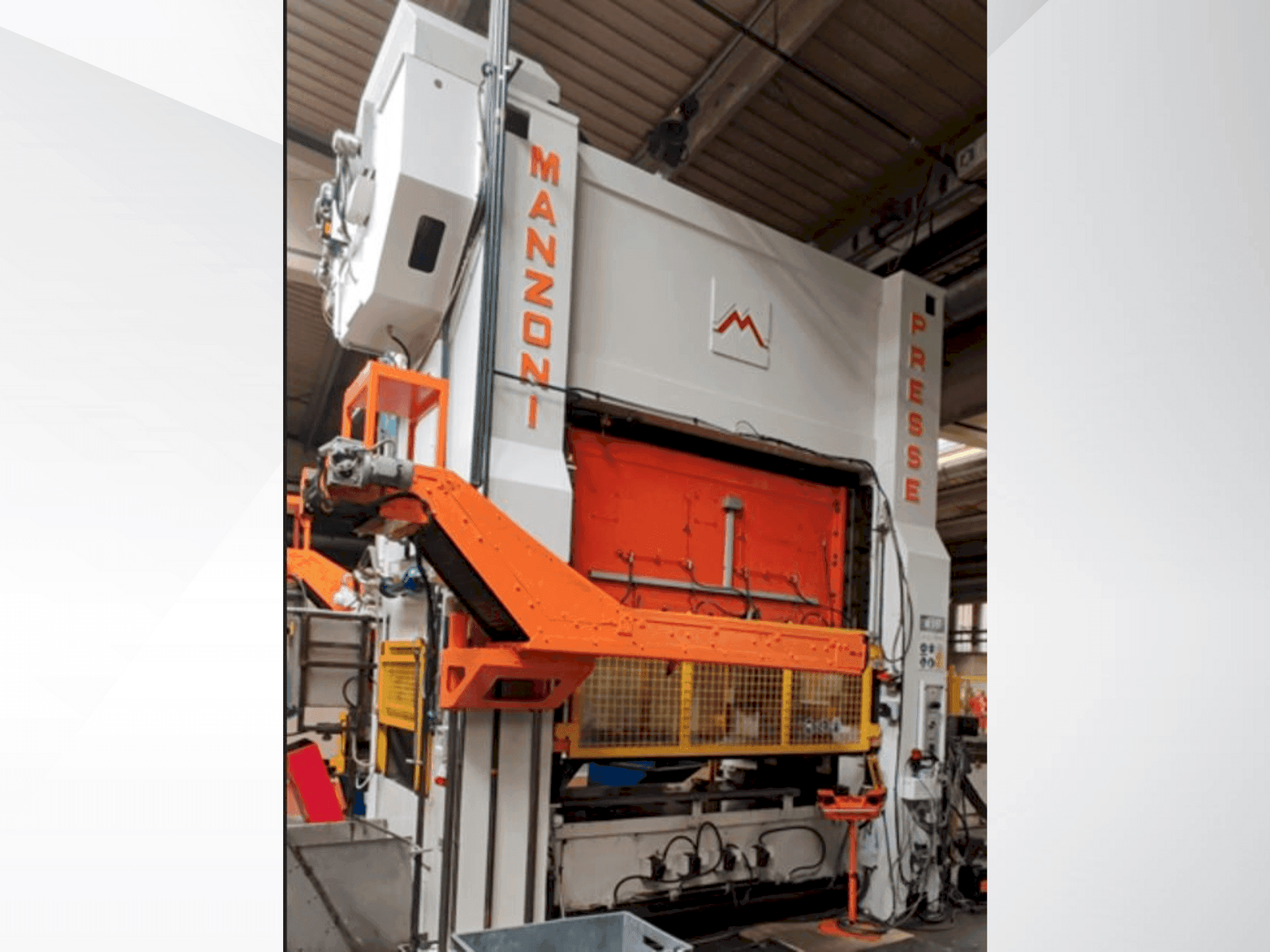

This RAVNE PRESSES Manzoni 315 stamping machine was manufactured in 1992. It features a robust eccentric H-frame, monoblock design with a press force of 3150 kN and a drive power of 60 kW. It has a fixed stroke of 200 mm and slide dimensions of 2550 x 1250 mm. If you are looking to get high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 315 machine we have for sale. Contact us for more information.

Overview

brand: RAVNE PRESSES
year: 1992
MODEL: Manzoni 315
application type: Stamping
Location: Slovenia
machine type: Mechanical Stamping Press
availability: Immediately

Technical Information - RAVNE PRESSES Manzoni 315

General Data

Machine weight: 58500 KG

Main drive

Pressing force: 3150 kn
Maximum sheet thickness: 6 mm
Main motor power: 60 kw
Stroke: 200 mm

Additional equipment

- Magnetic conveyor for scraps
- Quick die cart system
- New rails for die cart system
- Scissors for sheet cutting
- Scissors for sheet cutting
- Documentations and drawings included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Stroke rate: 10 – 65 /min
- - Slide adjustment: 200 mm
- - Number of pressure points: 2
- - Slide dimensions: 2550 x 1250 mm
- - Bed dimensions: 2650 x 1250 mm
- - Shut height: 500 – 700 mm
- - Side opening dimension: 1000 mm
- - Front opening dimension: 2810 mm
- - Number of straightener rolls: 9
- - Uncoiling speed: 2 - 25 m/min
Qualitative Machine Benefits:
- - Feeding speed: 2-96 m/min
- - Complete press line included
- - Press was rebuilt in 2017
- - All services are documented
- - Decoiler max. Sheet width: 500 mm
- - Max. Coil outer diameter: 1500 mm
- - Max. Coil outer diameter: 1500 mm
- - Feeder roll diameter: 127 mm
- - Feeder motor power: 75 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
