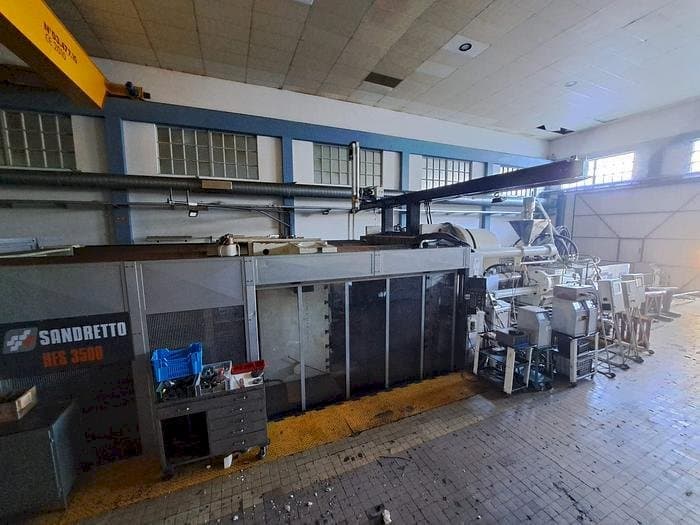

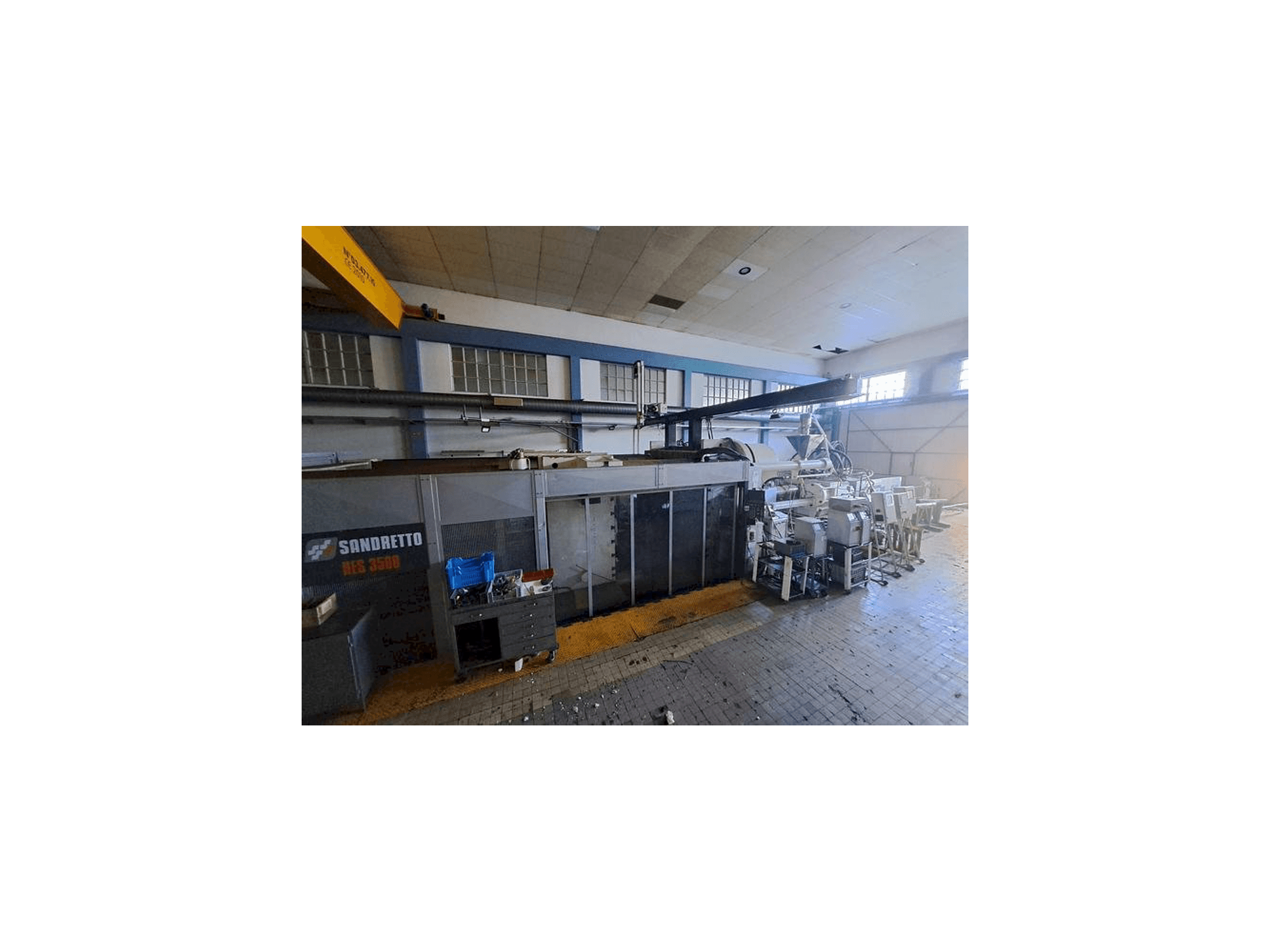

SANDRETTO HES 3500 injection moulding machine

Show in original language

This SANDRETTO HES 3500 injection moulding machine was built in the year 2010.

Overview

brand: SANDRETTO
year: 2010
MODEL: HES 3500
application type: Injection Moulding
Location: Portugal
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SANDRETTO HES 3500

Control Unit

Model: SEF 2000

Injection Unit

Screw diameter: 200 mm
Injection pressure: 1670 Bar

Clamping unit

Opening stroke: 2300 mm
Mould height min: 1000 mm
Mould height max: 2200 mm

Additional equipment

- MASTER MATTIC RB 500CN robot.
- Oil tank capacity: 8000 liters.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High plasticising capacity and speed, robust clamping force.
- - L/d ratio: 20.
- - Theoretical injection volume: 36110-18000 cm³.
- - Injection ratio: 3147 cm³/s.
- - Plasticising speed: 0-110 rpm. // plasticising speed with simultaneous plasticising: 0-55 rpm.
- - Total heating power: 174 kw.
- - Plate dimensions (horizontal x vertical): 3360x3060 mm.
- - Column diameter: 470 mm.
- - Pulling force: 550 kn.
- - Pull-out stroke: 600 mm.
Qualitative Machine Benefits:
- - Uniform heat distribution and quality in the injection molding process.
- - No load cycle (euromap): 3. 6 s.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
