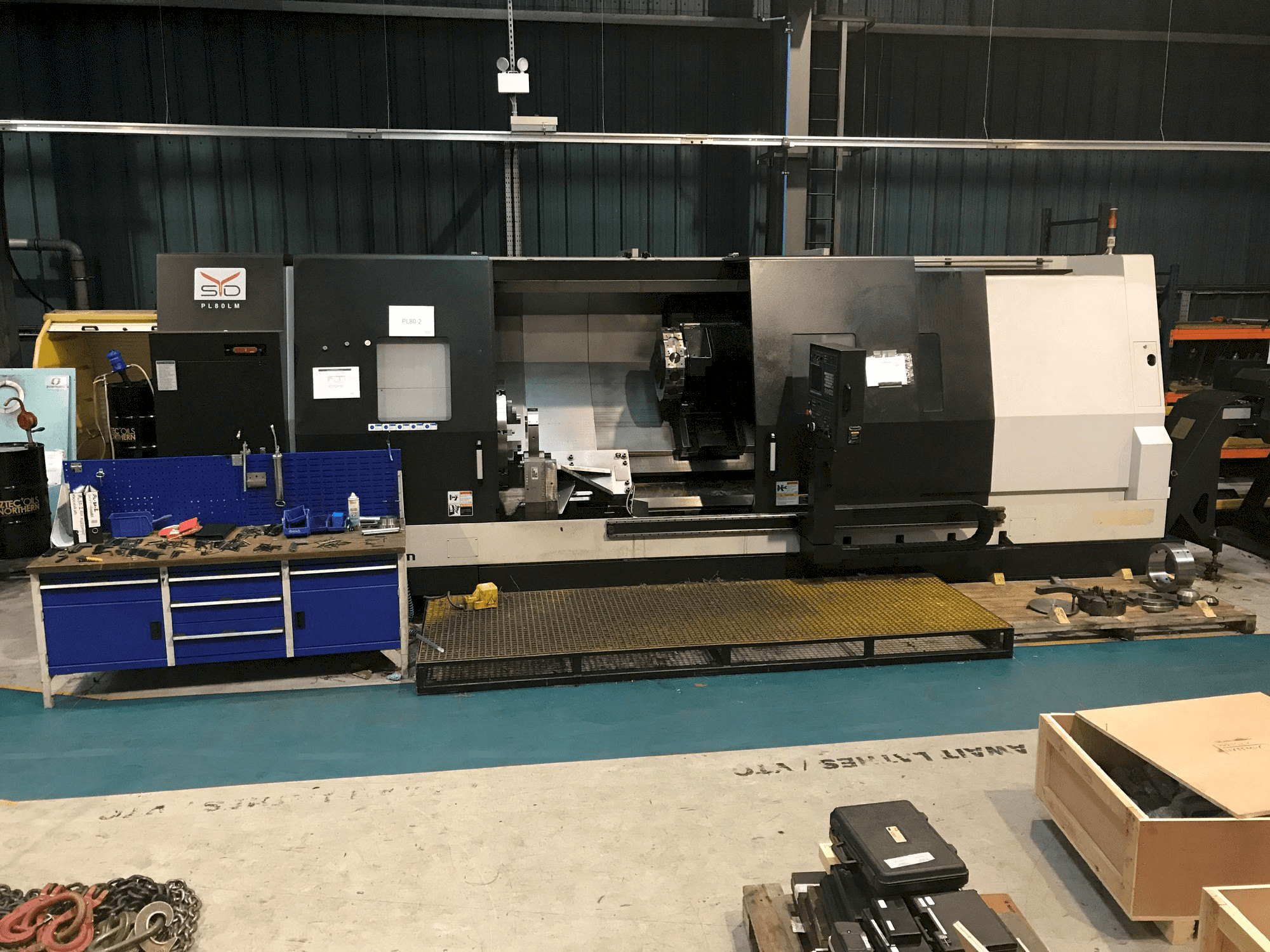

This Samsung PL 80 LM Lathe was manufactured in the year 2015 in South Korea. It has been working for 37861 hours, of which 4530 are cutting hours and 2979 are running time. This 3 axis machine is equipped with a FANUC 0i-TD control unit. It works with a spindle speed up to 500 rpm. This machine includes a good selection of Driven Tool Holders. It is in very good conditions.

Overview

brand: Samsung
year: 2015
MODEL: PL 80 LM
production hours: 37861
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Samsung PL 80 LM

Control Unit

Brand: FANUC
Model: 0i-TD

Main drive

Number of spindles: 1
Spindle speed range: 500 1/MIN
Spindle motor power: 45.0 / 37.0 KW
Spindle bore: 321 mm
Number of axis: 3

Movement

X-AXIS Rapid traverse: 12 M/MIN
Y-AXIS Rapid traverse: 12 M/MIN

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Heavy duty 3-axis extended slant bed cnc lathe with c-axis, driven tools, front & rear chucks, bmt85p turret
- - Swing over bed 1030 mm, over carriage 800 mm
- - Max. Turning length 3200 mm
- - Distance between centres 3250 mm
- - Chuck diameter 32" - 812 mm
- - C-axis indexing 0. 001 degree
- - Bar capacity 139. 5 mm
- - Driven tool motor 7. 5 kw
- - Smw hydraulic steady rest - model k6. 1 msw 215 ~ 510 mm dia. , 2 off (front & rear) 4 jaw manual chucks - diameter 32” with 310 mm bore size, heavy duty programmable tailstock - locking pin type, tool setting arm
Qualitative Machine Benefits:
- - Machine in very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
