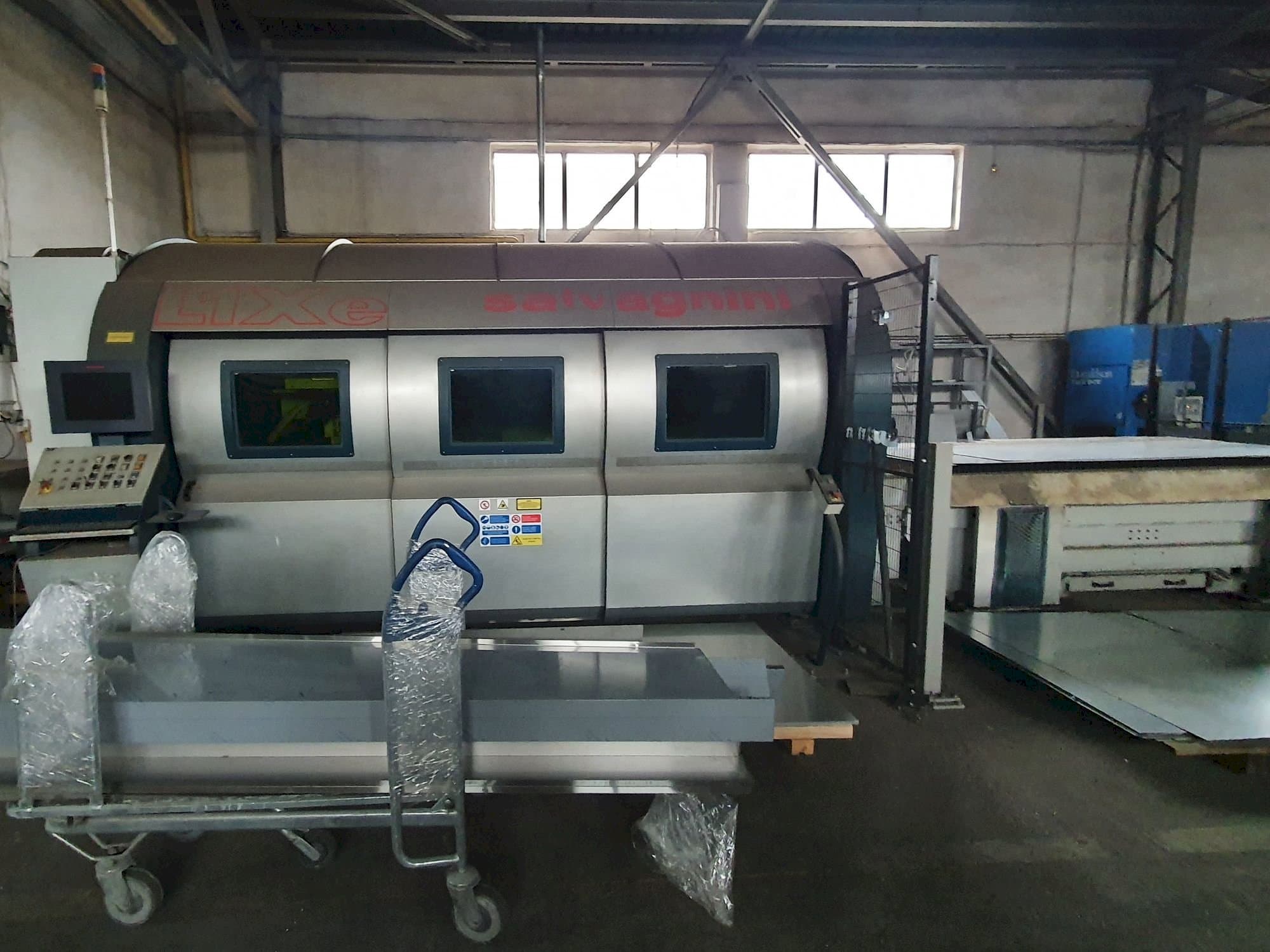

Salvagnini L1X Fiber Laser Cutting Machine

Show in original language

This Salvagnini L1X Fiber Laser Cutting Machine from Italy was built in the year 2009. It has been operative for approximately 15100 hours. This machine is equipped with a control unit of the same brand. It works with a laser power 2 kW. The laser source of this machine was replaced for a new one, a couple of years ago. It is in very good working conditions and it includes full documentation with manuals and service reports. This machine has been serviced by Salvagnini Poland service.

Overview

brand: Salvagnini
year: 2009
MODEL: L1X
production hours: 15100
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Salvagnini L1X

General Data

Measurements width: 4500 mm
Measurements depth: 3000 mm
Measurements height: 2500 mm
Machine weight: 15000 kg

Main drive

Laserpower: 2 kW
Laser type: Fiber
Laser brand: IPG

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1524 mm
Z-AXIS Movement: 150 mm

Max Material thickness

Steel: 18 mm
Stainless steel: 10 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 - 460 V / 50 - 60 Hz

Additional equipment

- Pallet changer
- Exhaust system
- Chiller
- Software

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Laser source: fiber yls-2000
- - Max material size: 3048 x 1524 mm
- - Max material weight: 750 kg
- - Cooper, brass: 5 mm
Qualitative Machine Benefits:
- - Machine in very good working conditions
- - Full documentation with manuals and service reports
- - Serviced by salvagnini poland service
- - Ready for tests
- - The laser source was replaced for a new a couple years ago.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
