Safan CNCL-K 120-3100 TS1 Bending Machine

Show in original language

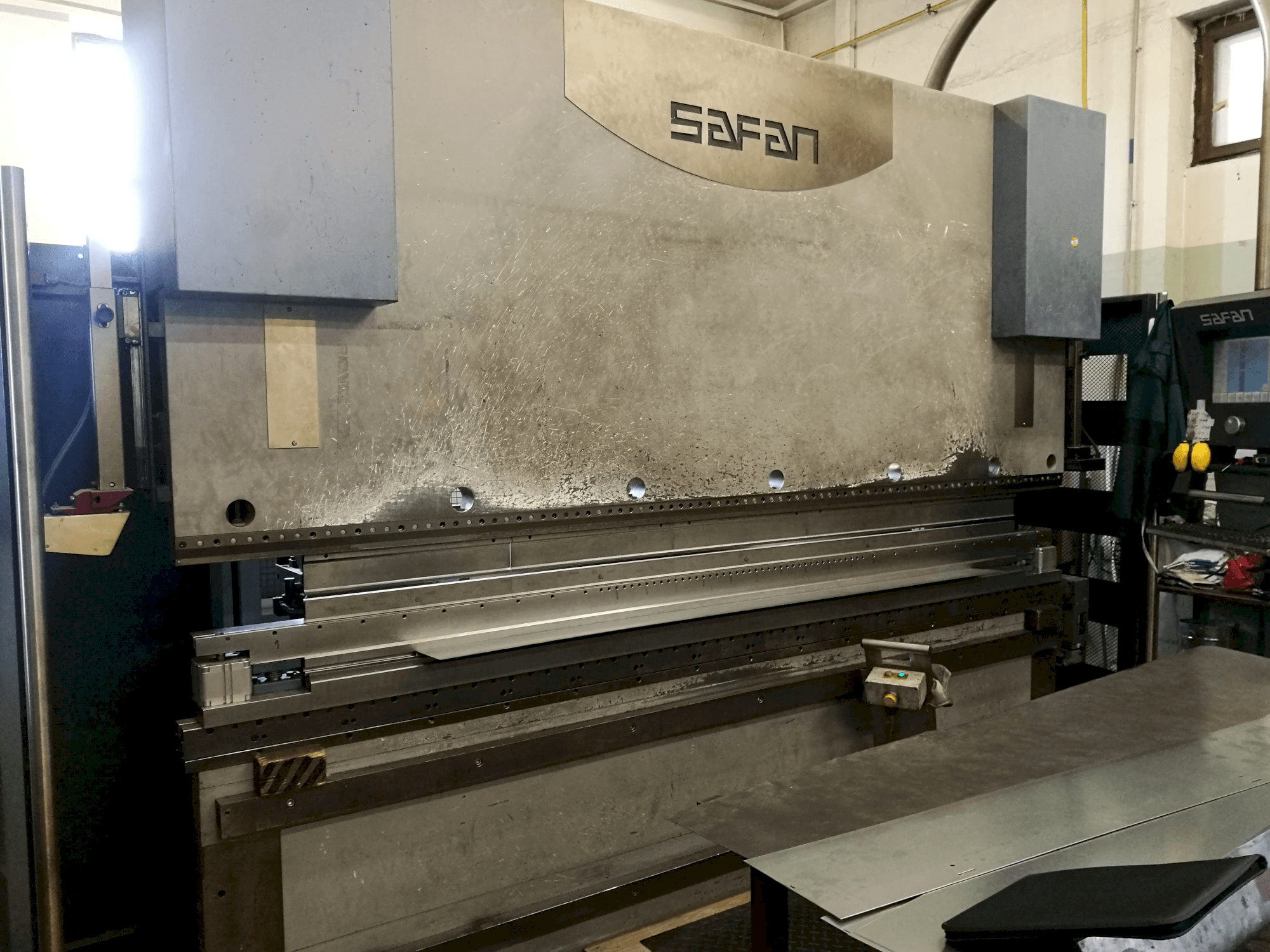

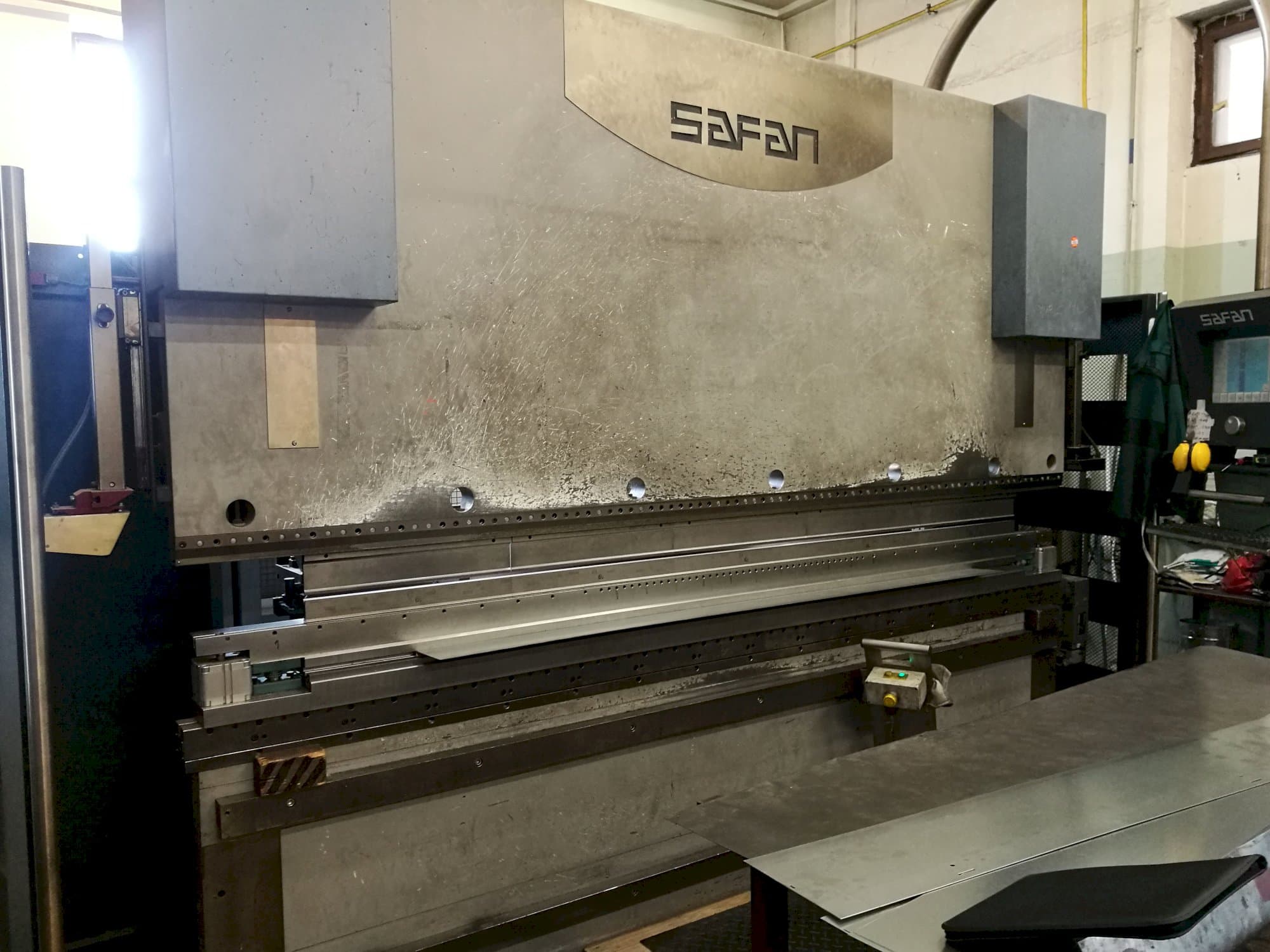

This Safan CNCL-K 120-3100 TS1 Bending Machine was made in 2002 in the Netherlands. Operated through a Safan TS1 Control unit, this model offers a pressing force of 1200 kN. This machine is controlled through Y1, Y2, X and R axes. It stands out due to its Backgauge and Crowning. It counts with a safety light guard and overall good working conditions. It has mainly worked with steel plates up to 1.5 mm of thickness during the past.

Overview

brand: Safan
year: 2002
MODEL: CNCL-K 120-3100 TS1
application type: Bending & Punching
Location: Czech Republic
machine type: Press Brake
availability: Sold

Technical Information - Safan CNCL-K 120-3100 TS1

General Data

Measurements width: 4200 mm
Measurements depth: 1650 mm
Measurements height: 2775 mm
Machine weight: 8700 kg

Control Unit

Model: TS1
CNC main language: Czech
CNC language customizable: Yes

Main drive

Pressing force: 1200 kN
Bending length: 3100 mm
Stroke: 180 mm

Additional equipment

- Basic tooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
