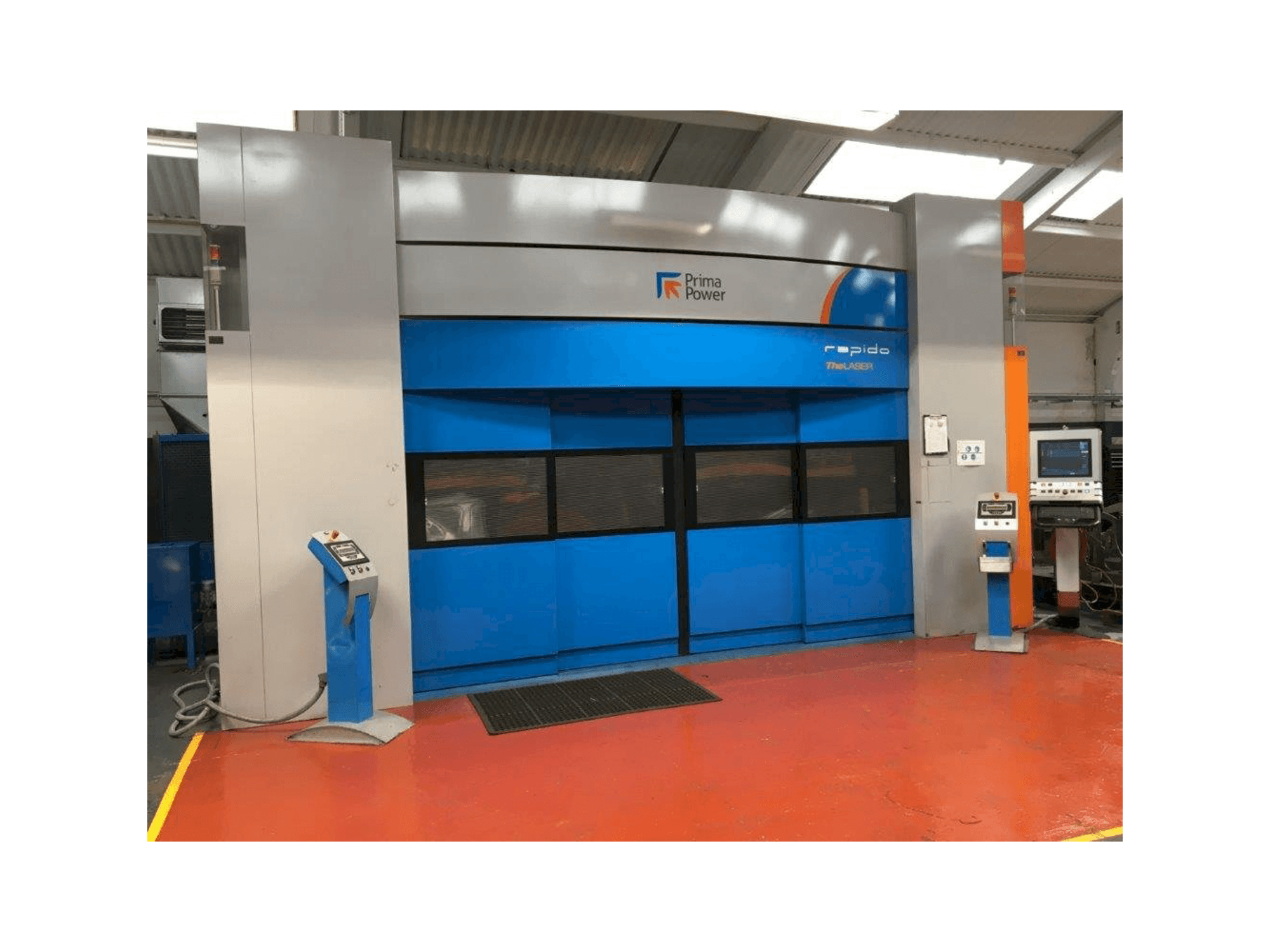

Prima Power RAPIDO CP 4000 Laser Cutting Machine

Show in original language

This Prima Power RAPIDO CP 4000 Laser Cutting Machine was built in 2014 and has been operative for 15500 laser hours. This 4kW laser machine stands out for its 3D cutting. Main features include: self-calibrating, hand teach box with joy stick, 3D editor, teleservice connection, full tracking, auto square cutting head, shape storing, split cabin facility, focal point control. It presents perfect conditions, as it counts with a full annual service.

Overview

brand: Prima Power
year: 2014
MODEL: RAPIDO CP 4000
production hours: 15500
application type: Cutting
Location: United Kingdom
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Prima Power RAPIDO CP 4000

General Data

Measurements width: 6950 mm
Measurements depth: 5650 mm
Measurements height: 3750 mm
Machine weight: 18700 kg

Main drive

Laserpower: 4 kW

Movement

X-AXIS Accuracy: 0.03 mm
Y-AXIS Accuracy: 0.03 mm
Z-AXIS Accuracy: 0.03 mm
A-AXIS Movement: 360º MM
B-AXIS Movement: +/- 135 º MM
C-AXIS Movement: +/- 10 mm

Table

Outer length: 4080 mm
Outer width: 1530 mm
Height adjustment: 765 mm

Media

Main electronic connection: 400 V
Power consumption: 106 kVA

Additional equipment

- Dust extractor
- Chiller

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 tables
- - Speed trajectory: 175 m/min
- - Acceleration trajectory: 1. 4 g
Qualitative Machine Benefits:
- - Full annual service
- - Complete documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
