Prima Power Platino 1530 Laser Cutting Machine

Show in original language

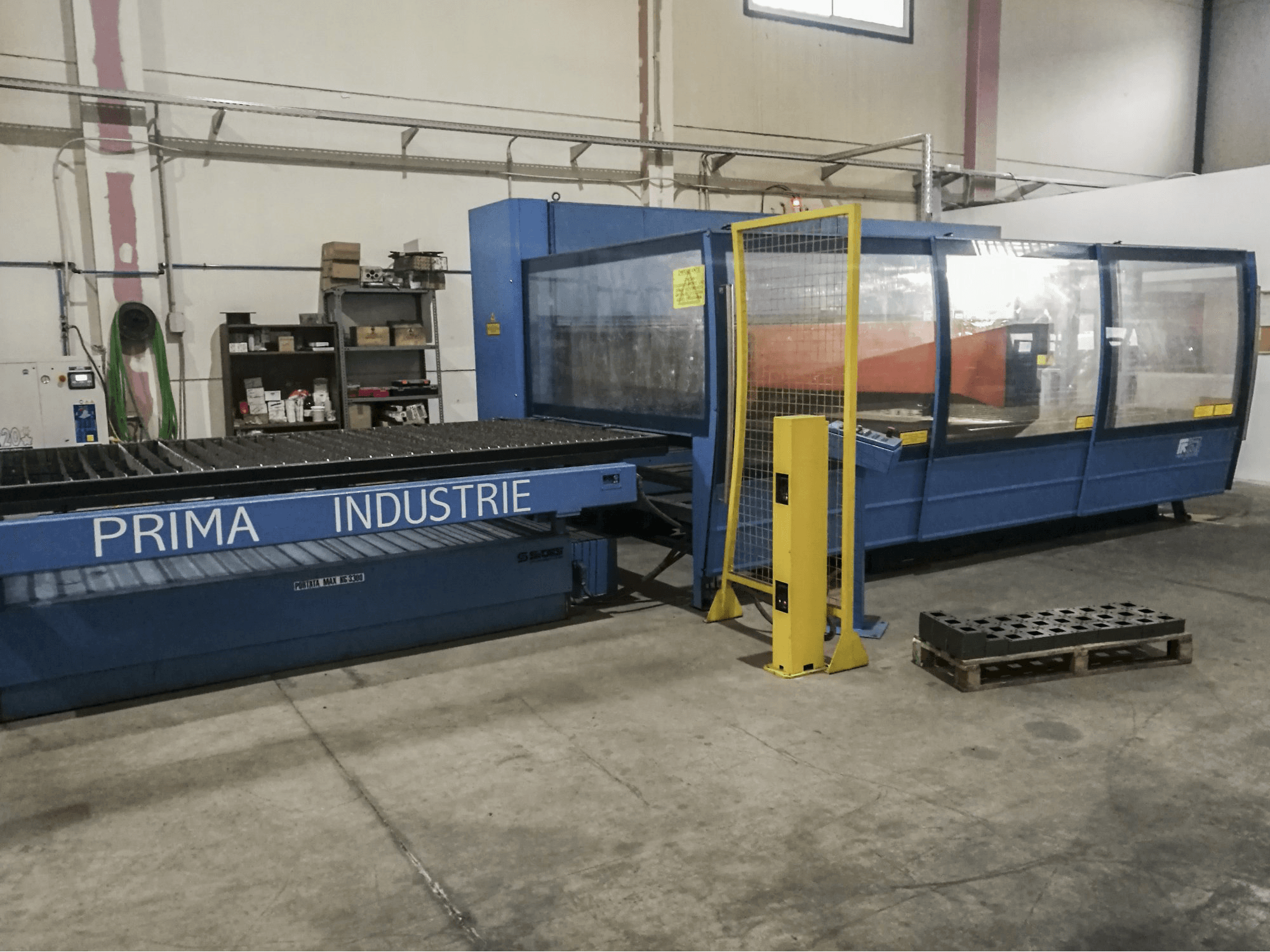

This Prima Power Platino 1530 Laser Cutting Machine was manufactured in 2000 in Italy and has a working record of 60974 production hours. Operated through a Primach 9000-L Control unit, this 3 kW machine stands in really good conditions as it received regular maintenance.

Overview

brand: Prima Power
year: 2000
MODEL: Platino 1530
production hours: 60974
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - Prima Power Platino 1530

General Data

Measurements width: 6200 mm
Measurements depth: 3800 mm
Measurements height: 2500 mm
Machine weight: 13000 kg

Control Unit

Model: 9000-L

Main drive

Laserpower: 3 kW
Laser type: CO2
Laser brand: PLS 3000

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 1500 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 150 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 15 mm

Max Material thickness

Steel: 15 mm
Stainless steel: 8 mm

Machine specific data

Size of cutting head 1: 5"
Size of cutting head 2: 7.5"

Media

Main electronic connection: 400 V
Power consumption: 63.3 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
