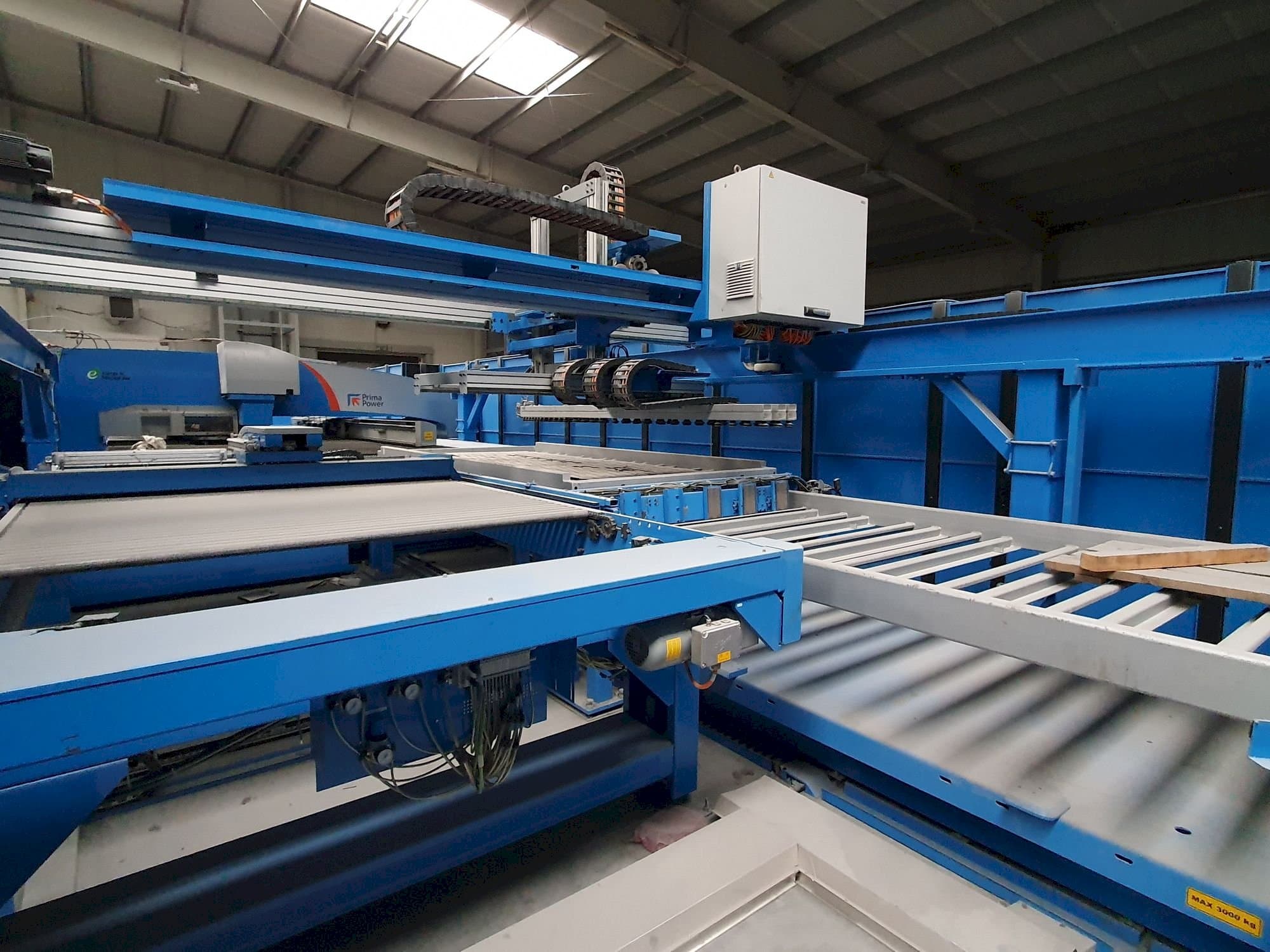

This Prima Power LPe6f Laser punch combination machine was manufactured in the year 2014 in Finland. This machine is equipped with a Prima Power CNC system control unit. It has been working for only 550 hours. This machine's laser power is of 3 kW and its punching force 294.2 kN. It is fully integrated installation of fiber laser cutting and punching machine width automatic loading/unloading, parts sorting robot and material storage.

Overview

brand: Prima Power
year: 2014
MODEL: LPe6f
production hours: 550
application type: Punching
Location: Poland
machine type: Punch-Laser Combination
availability: Sold
control unit brand: PRIMA POWER

Technical Information - Prima Power LPe6f

General Data

Measurements width: 23900 mm
Measurements depth: 8800 mm
Measurements height: 8405 mm

Control Unit

Model: CNC system
Brand: PRIMA POWER

Main drive

Laserpower: 3 kW
Laser type: YLS-3000 IPG
Punching force: 294.2 kn

Movement

X-AXIS Movement: 3144 mm
X-AXIS Rapid traverse: 120 m/min.
Y-AXIS Movement: 1615 mm
Y-AXIS Rapid traverse: 90 m/min.

Tools

Number of index: 6 pcs

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V / 50 Hz

Additional equipment

- Fourth sheet clamp
- Tool lubrication
- Scrap conveyor SC1T
- Lifting scrap conveyor SC2
- Lifting Laser Scrap Conveyor LSC2-L
- Uninterruptible Power System
- Work chute (500 x 500, includes slide plate) A side
- Part detection system for work chute
- Tapping unit TU6-H
- External laser cooling system, External exhaust system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Of sheet clamps: 4 pcs
- - 2 drop doors for parts, max size 800x800 mm
- - Part detection system for drop doors
- - Laser scrap conveyor, part conveyor
- - Video monitoring, safety system
- - Radiation protection for laser
- - Sorting unit for parts: su9-l
- - Loading and stacking robot: lsr6
- - Software: prima power nc express combi
- - Material storage: combo6 with one shelving unit, 25 pallets for material
Qualitative Machine Benefits:
- - Max punching speed (for 1 mm between holes): 1000/min
- - Max. Material size (x x y): 3074 x 1565 mm / max. Material weight: 200 kg
- - Everything ready for tests
- - Before selling the owner pays for full maintenance service and start-up of the system
- - Machine like new
- - Full documentation with manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
