Pinacho Smart-Turn 5/180 Lathe

Show in original language

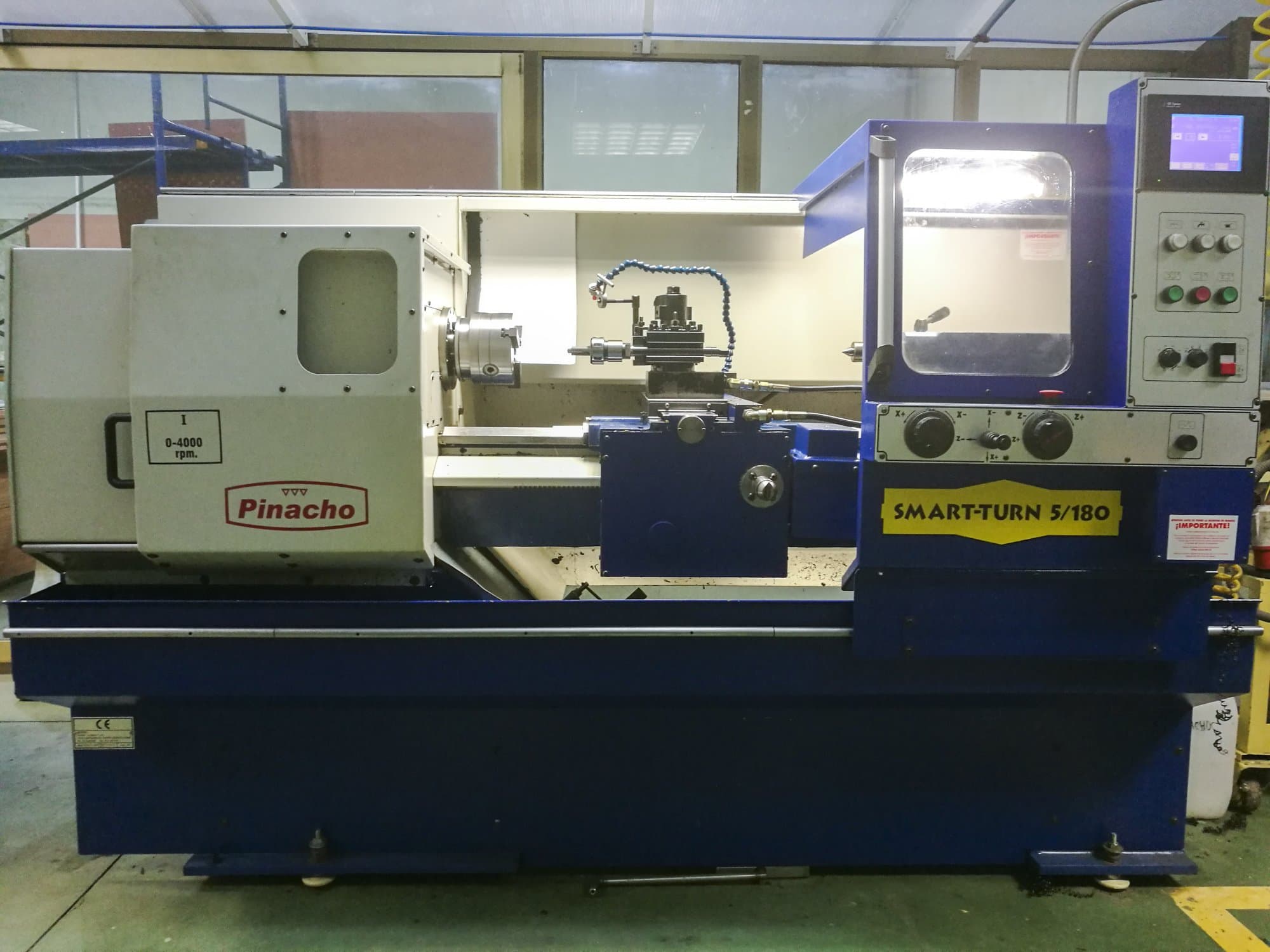

This Pinacho Smart-Turn 5/180 Lathe was manufactured in the year 2005 and has a working record of approximately 2000 production hours. This machine is equipped with a FANUC QuickPanel Control unit, is easy to operate and specially fit for repetitive production of parts. Due to its low working hours and the careful maintenance it received, this machine stands in a very good condition.

Overview

brand: Pinacho
year: 2005
MODEL: Smart-Turn 5/180
production hours: 2000
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Pinacho Smart-Turn 5/180

General Data

Measurements width: 2250 mm
Measurements depth: 1325 mm
Measurements height: 1540 mm
Machine weight: 1235 kg

Control Unit

Model: QuickPanel
Brand: FANUC

Main drive

Spindle speed range: 4000 1/min
Spindle motor power: 5.5 kW
Spindle bore: 42 mm

Movement

X-AXIS Movement: 1000 mm

Workpiece

Workpiece drm over bed: 360 mm
Workpiece drm over support: 335 mm

Tail Stock

Pinol diameter: 58 mm
Pinol way: 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
