OKUMA LB3000 EX II Lathe

Show in original language

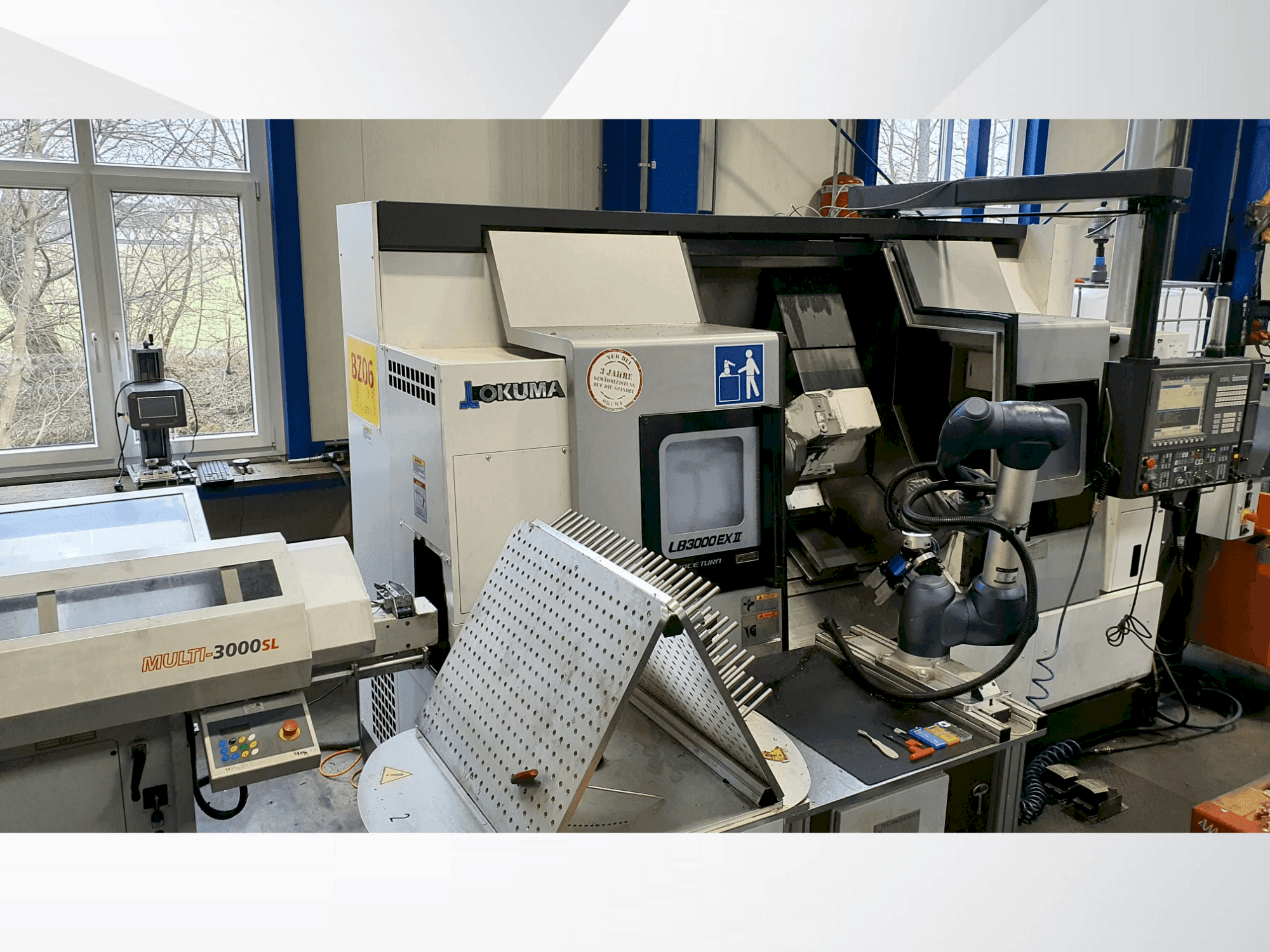

This OKUMA LB3000 EX II Lathe was manufactured in 2016 in Japan. It is equipped with an OKUMA OSP-P300L control unit. This machine has 5 axis.

Overview

brand: Okuma
year: 2016
MODEL: LB3000 EX II
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma LB3000 EX II

General Data

Measurements width: 3380 mm w/o chip conveyor
Measurements depth: 2040 mm w/o chip conveyor
Measurements height: 2455 mm
Machine weight: 6800 KG

Control Unit

Model: OSP-P300L
Brand: OKUMA

Main drive

Spindle motor power: 22 kW
Number of axis: 5

Movement

X-AXIS Movement: 260 MM
Y-AXIS Movement: 1010 MM
Z-AXIS Movement: 115 MM
C-AXIS Movement: 360 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions without chip conveyor 3,380 x 2,040mm
- - Rotation range up to 340 mm
- - Swing diameter over slide / bed 470/580 mm
- - Distance between centers or spindle noses w 1085mm
- - Rapid traverse c-axis 200 min-1
- - C-axis resolution 0. 001°
- - W-axis travel 825mm
- - Torque 350/ 700 nm
- - Speed (min-1) 45-5,000 / 42-4,200
- - Speed levels: 2 frequency-controlled
Qualitative Machine Benefits:
- - Counter spindle (6. 000 rpm)
- - Driven tools
- - Y-axis (+70/-45mm)
- - Bar loader included
- - 26x tool holder are included, bmt 60

Extra information

- Machine still under power // robot is not included and also not for sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
