OKUMA LB 300M Lathe

Show in original language

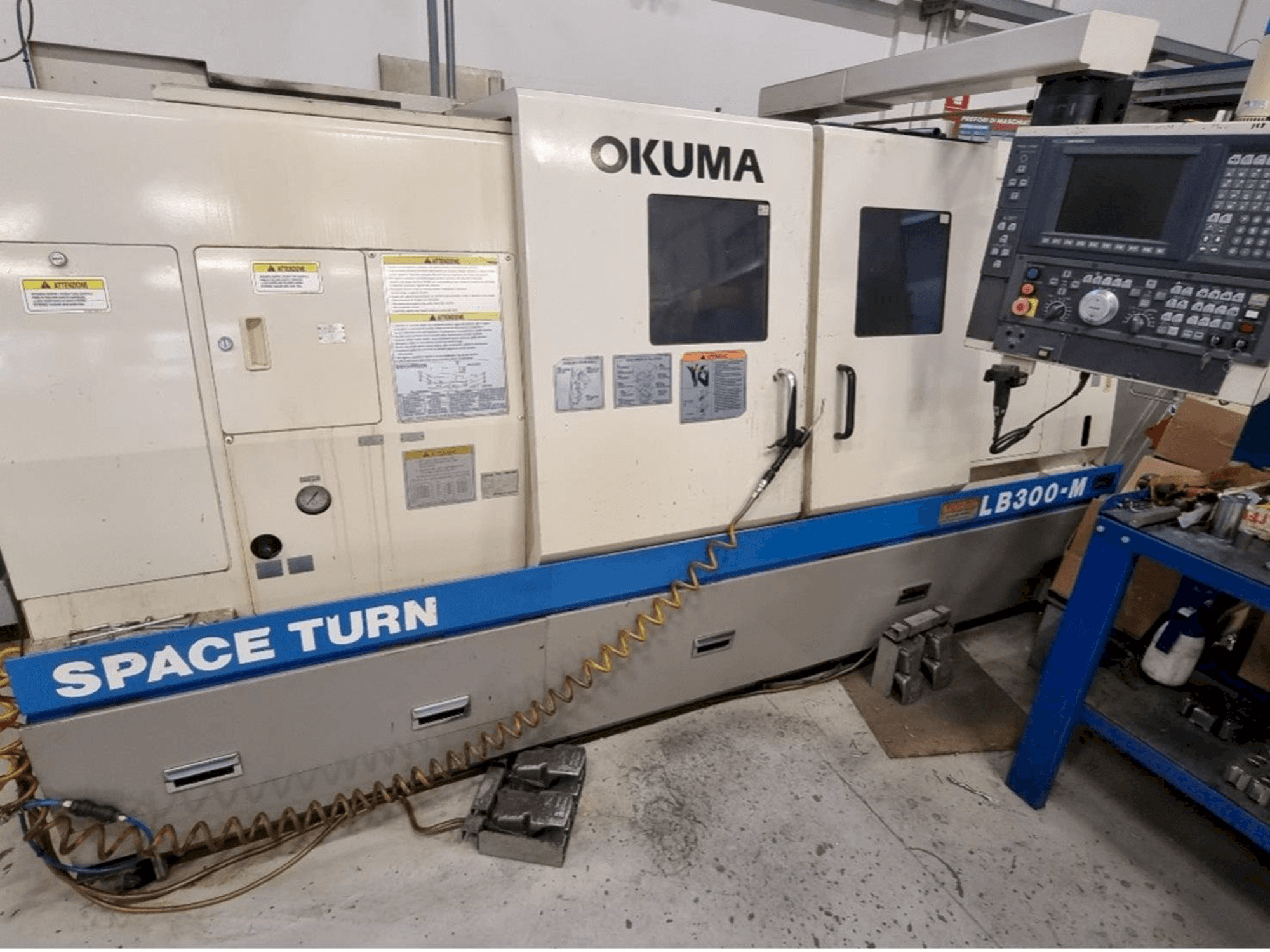

This OKUMA LB 300M Lathe was manufactured in the year 2001. It is equipped with an Okuma OSP-U100L control unit and has 45-4500 rpm, is in very good condition and well maintained.

Overview

brand: Okuma
year: 2001
MODEL: LB 300M
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: OKUMA

Technical Information - Okuma LB 300M

General Data

Measurements width: 3310 mm
Measurements depth: 1900 mm
Measurements height: 1930 mm
Machine weight: 5900 KG

Control Unit

Model: OSP U100L
Brand: OKUMA

Main drive

Spindle speed range: 45-4500 1/MIN

Movement

X-AXIS Movement: 260 MM
X-AXIS Rapid traverse: 20-25 M/MIN
Z-AXIS Movement: 1020 MM

Media

Power consumption: 28.16 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between the points 1020 mm.
- - Dia. Max rotating on the guards 530 mm.
- - Dia. Rotating between points 420 mm.
- - Dia. Max turning with std. Tools 340mm.
- - Spindle attachment asa 6”
- - Dia. Useful bar passage 52
- - Max power available kw 15/11
- - Motor power x – z axis drive kw bl 3,0/bl 4,0
- - X-axis push kfg 660
- - Z axis push kfg 640
Qualitative Machine Benefits:
- - Screws activation axis x – z dia. /pitch 32-40/16 mm, x, z axis positioning precision mm. 0,01/100 – 0,15/300, positioning repeatability x – z axis +/- 0. 001 – 0. 002 mm,
- - Turret for tools, station p/tools n. 12, attachment for vdi tools-mm. 40,
- - Index time (1 position) sec. 0,1, index time (6 position) sec. 0,36, rotary tools drive, , station for motorizable tools n. 12
- - Max power available kw 7/3. 3, max torque available nw 23. 7,
- - Tailstock, dia. 90 mm post, post stroke mm. 120
- - Cone attachment cm n. 5, maximum thrust allowed kfg 500,
- - Chips conveyor with exhaust belt right, tailstock
- - Autoc. Dia. 210mm.
- - Manual presetting
- - Static and motorized tool holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
