Netstal - Synergy 600-110CH-INJ-NET-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

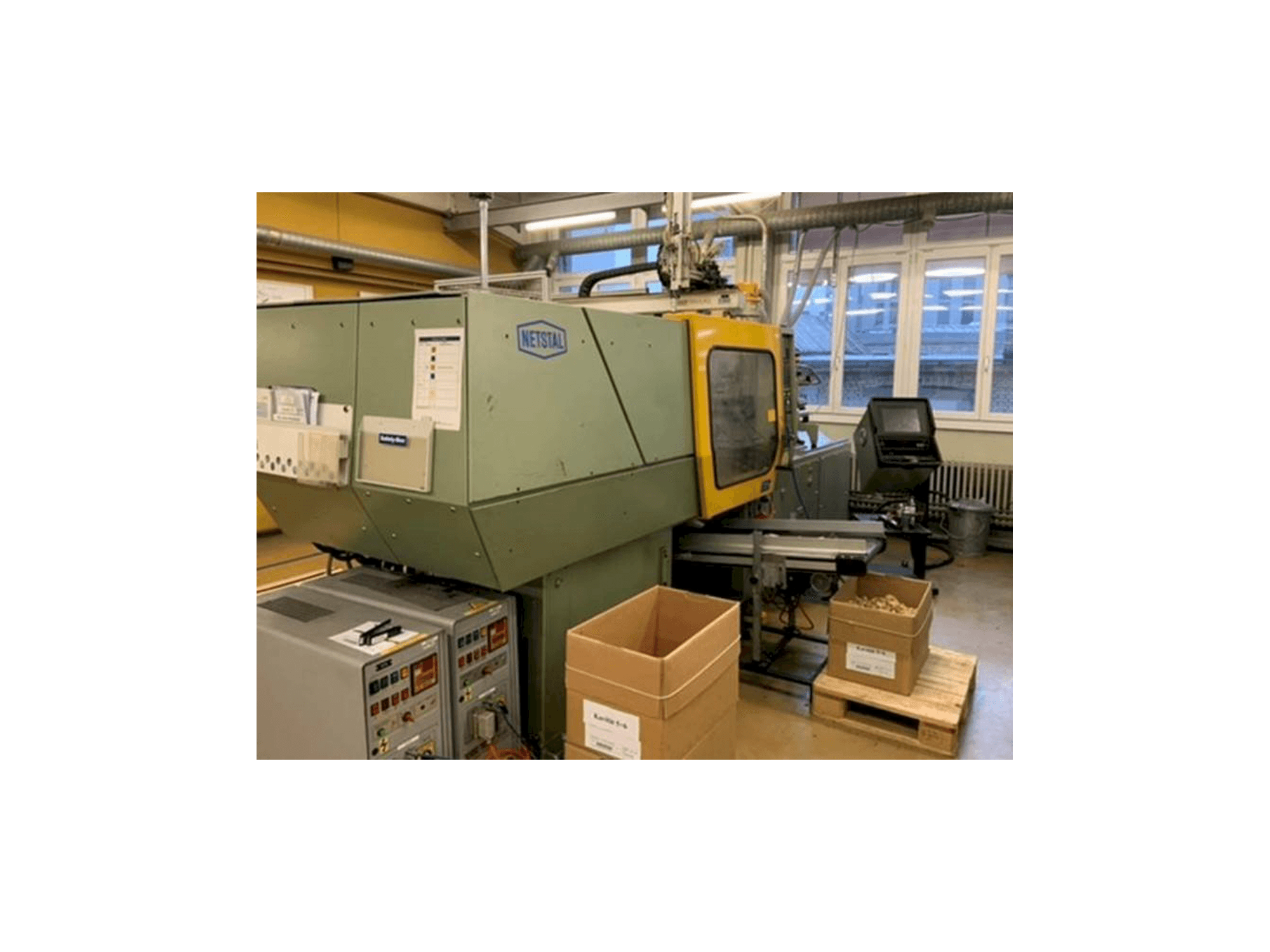

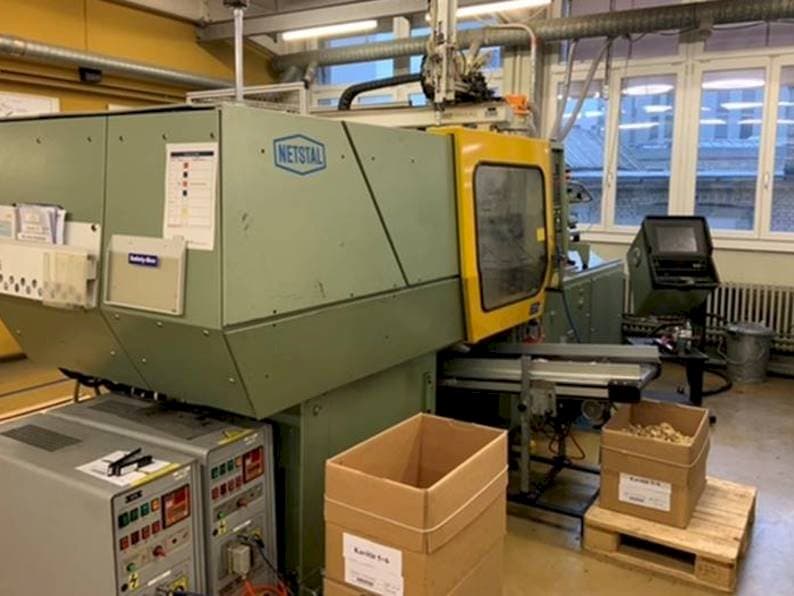

This Netstal Synergy 600-110 Injection Moulding Machine was manufactured in Switzerland in the year 1997. It has 109650 production hours. This machine can operate with a clamping force of 600 kN and a force of injection 111 kN. It includes temperature devices and parts conveyor.

Overview

brand: Netstal
year: 1997
MODEL: Synergy 600-110
production hours: 109650
application type: Injection Moulding
Location: Switzerland
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Netstal Synergy 600-110

Injection Unit

Screw diameter: 25 mm
Shot weight: 44.9 g/ps
Stroke volume: 49.1 CM³
Injection pressure: 210 Bar

Clamping unit

Clamping force: 600 kN
Opening stroke: 0 - 340 mm
Distance between bars: (h x v) 410 x 410 mm
Mould height min: 200 mm
Mould height max: 500 mm

Media

Main electronic connection: 400 V 50 Hz
Power consumption: 15 kW

Additional equipment

- Temperature devices (included)
- Parts conveyor (included)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection force 111 kn

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
