➤ Used Netstal S-1000-460 For Sale | gindumac.com

Show in original language

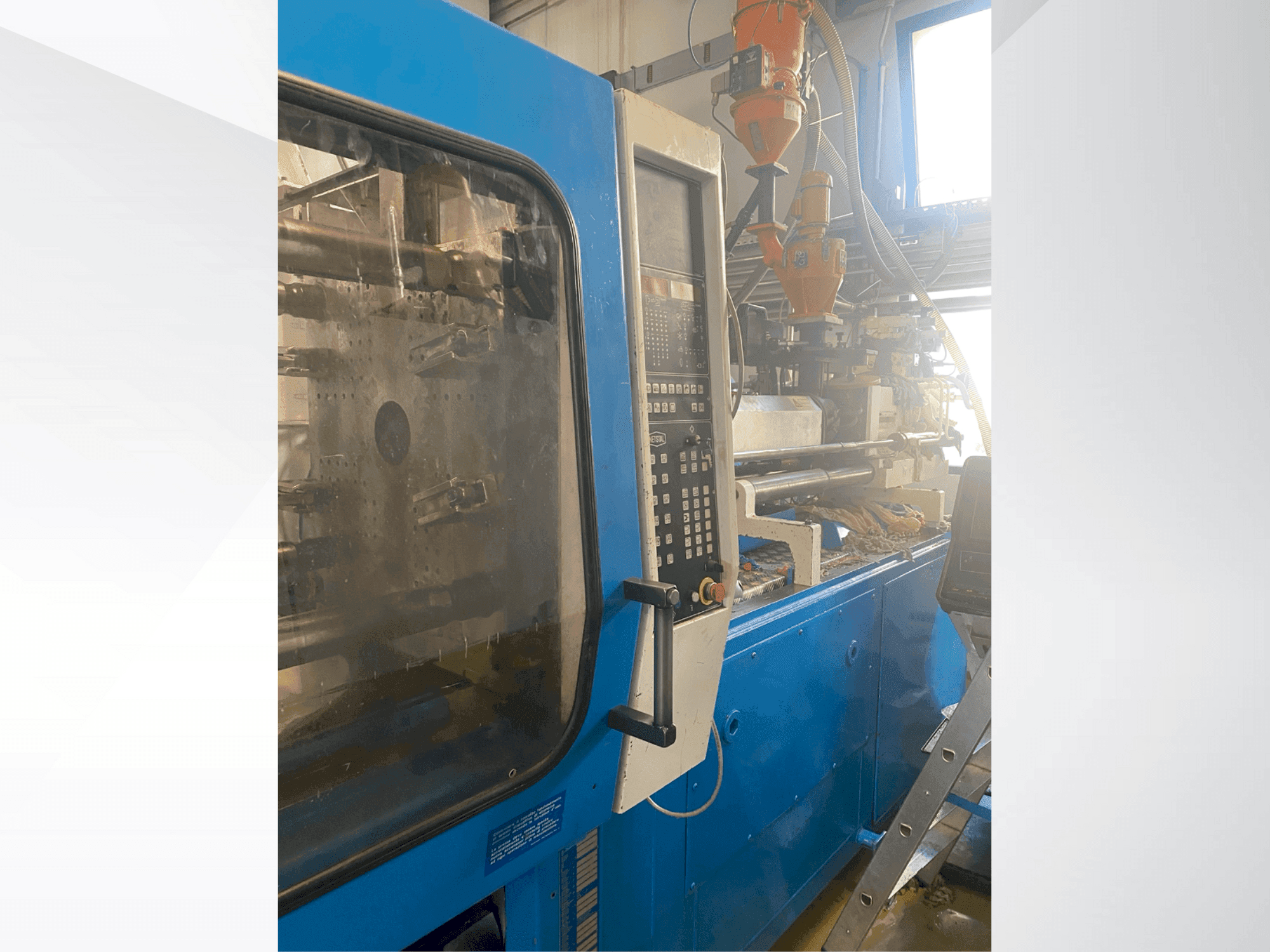

This hydraulic injection moulding machine was manufactured in 1998. The Netstal S-1000-460 features a closing force of 1000 KN, an opening stroke of 400 mm, and a screw diameter of 40 mm. It has a shot weight capacity of 193 grams and an injection pressure of 2218 bar. Ideal for precision molding, the machine we have for sale is robust and efficient. Contact us for more information about this hydraulic injection moulding machine.

Overview

brand: Netstal
year: 1998
MODEL: S-1000-460
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal S-1000-460

General Data

Measurements width: 1724 MM
Measurements depth: 5988 MM
Measurements height: 2262 MM
Machine weight: 12100 KG

Injection Unit

Screw diameter: 40 mm
Shot weight: 193 g (PS)
Injection pressure: 2218 bar
Heating capacity: 19.9 kW

Clamping unit

Clamping force: 1000 kN
Opening stroke: 400 mm
Distance between bars: 460 x 460 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 160 mm
- - Max shot volume: 201 cm³
- - Injection flow rate: 1382 cm³/s
- - Opening force: 270 kn
- - Column diameter: 70 mm
- - Dry cycle stroke: 1. 1 s
- - Nozzle contact force: 57 kn

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
