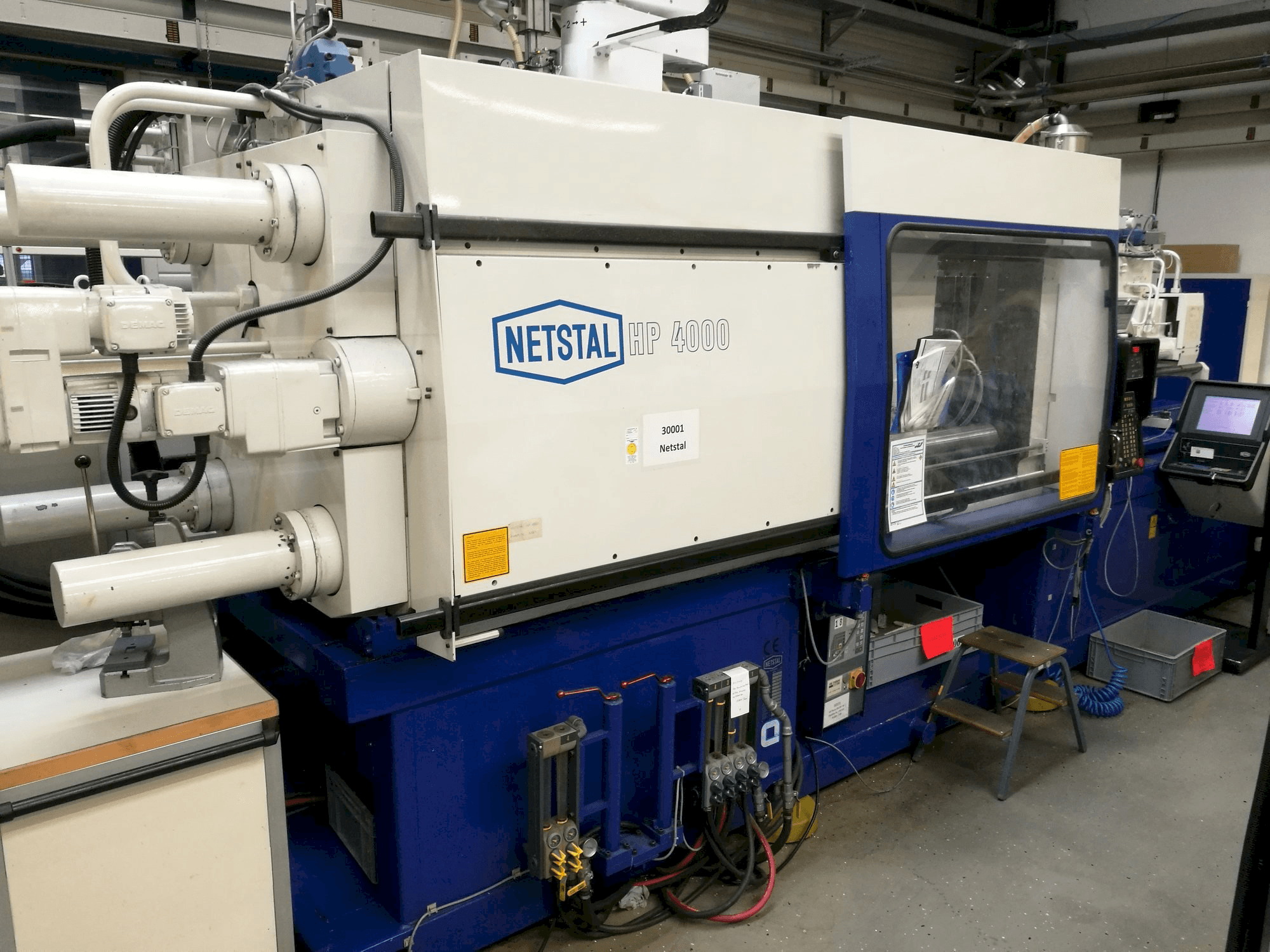

Netstal HP4000/445-445 Injection Moulding Machine

Show in original language

This Netstal HP4000/445-445 Injection Moulding Machine was manufactured in the year 1996 in Switzerland. It has been operative for 53583 hours. Operated through a Netstal SYCAP control unit. This machine incorporate a clamping force of 4000 kN and an injection pressure of 2219 bar.

Overview

brand: Netstal
year: 1996
MODEL: HP4000/445-445
production hours: 53583
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: NETSTAL

Technical Information - Netstal HP4000/445-445

General Data

Measurements width: 8500 mm
Measurements depth: 2150 mm
Measurements height: 2390 mm
Machine weight: 25000 kg

Control Unit

Model: SYCAP
CNC main language: German
CNC language customizable: Yes
Brand: NETSTAL

Injection Unit

Screw diameter: 40 mm
Stroke volume: 200 CM³
Injection pressure: 2219 bar
Heating capacity: 14 kW

Clamping unit

Clamping force: 4000 kN
Opening stroke: 625 mm
Distance between bars: 1475 mm
Mould height min: 500 mm
Mould height max: 850 mm

Media

Main electronic connection: 400 V
Internal cooling: Yes

Additional Information

Machine history

End product: Parts for telephones
Industries: Telecommunications

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
