Negri Bossi NB 62 Injection Moulding Machine

Show in original language

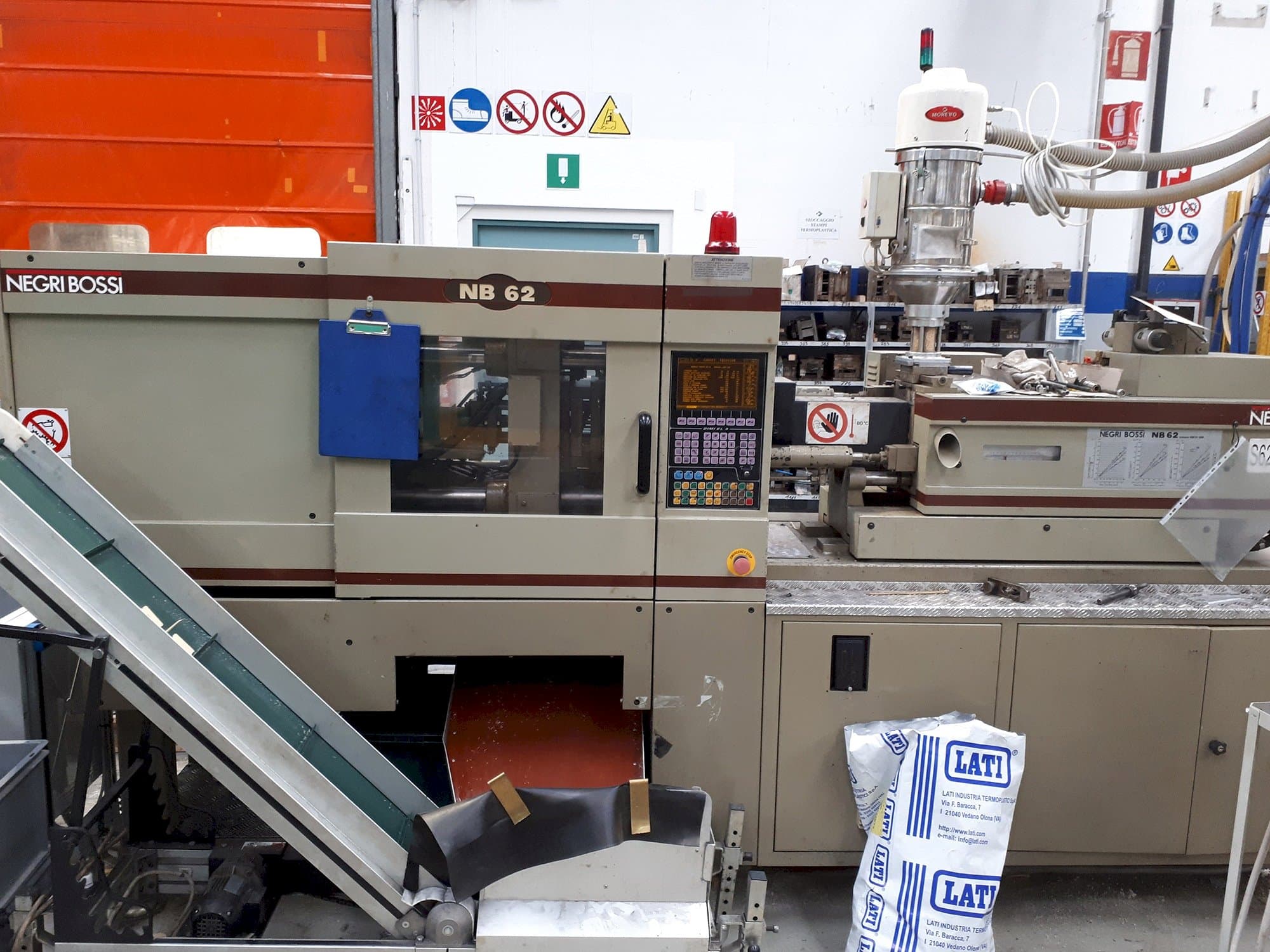

This Negri Bossi NB 62 Injection Moulding Machine was manufactured in Italy in 1997 and has been operative for 56400 hours. Equipped with a DIMI EL 2 Control unit, this machine has mainly been producing electrical connetors during the past.

Overview

brand: Negri Bossi
year: 1997
MODEL: NB 62
production hours: 56400
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Negri Bossi NB 62

General Data

Measurements width: 3745 mm
Measurements depth: 940 mm
Measurements height: 1860 mm
Machine weight: 2300 kg

Injection Unit

Screw diameter: 32 mm
Shot weight: 120 g/PS
Stroke volume: 127 cm³
Injection pressure: 1715 bar
Screw speed: 290 rpm
Heating capacity: 5.7 kW
Adjustable heating zones: 4
Nozzle pressure: 31 kN

Clamping unit

Clamping force: 620 kN
Opening stroke: 310 mm
Distance between bars: 315X315 mm
Mould height min: 120 mm
Mould height max: 350 mm
Size of mold platens: 505X490 mm
Ejector stroke: 70 mm
Ejector force for / back: 23.8 kN

Media

Main electronic connection: 380 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
