- NAKAMURA TOME WT 250 (1999) Lathe

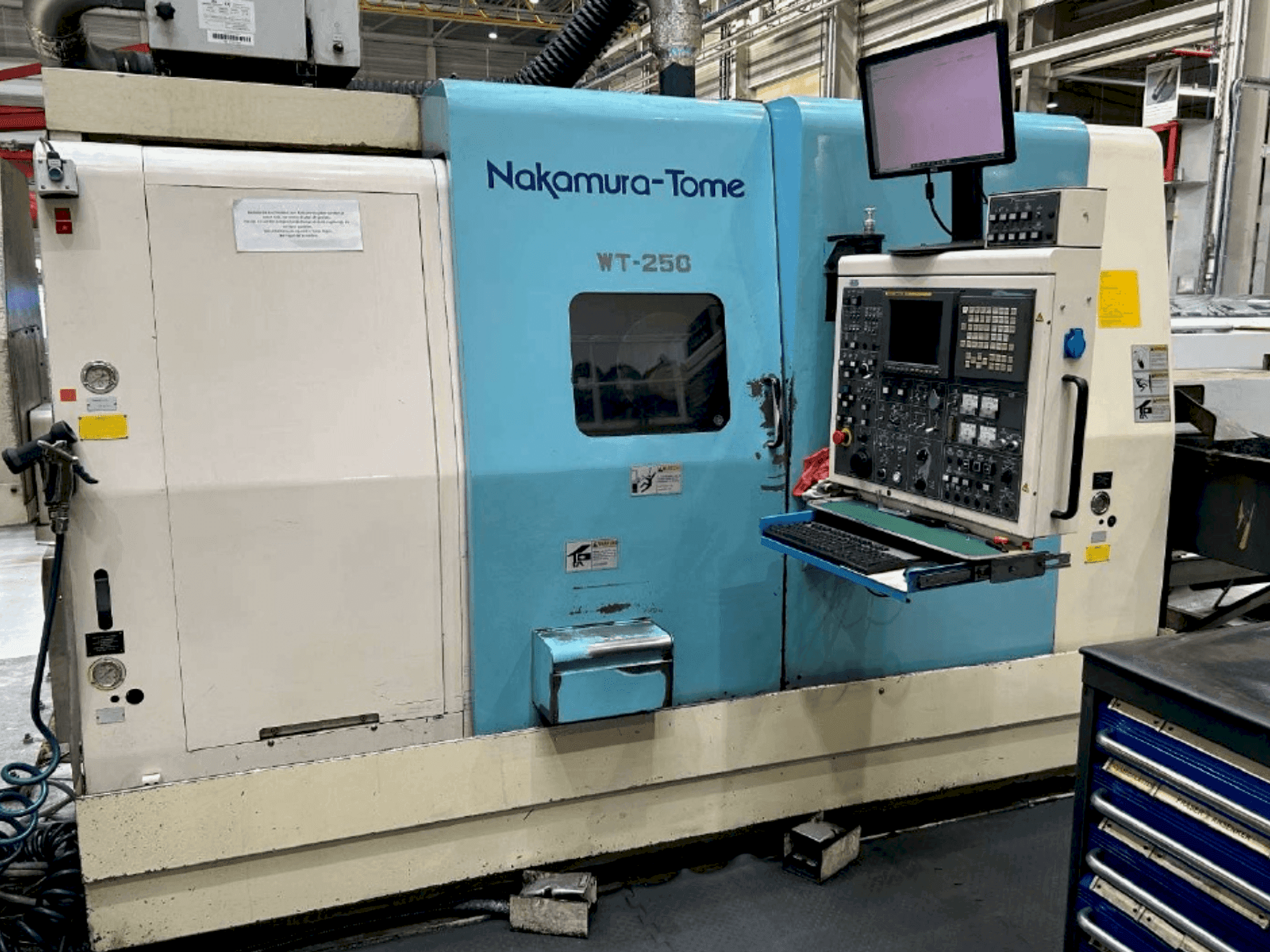

This NAKAMURA TOME WT 250 Lathe machine was manufactured in the year 1999. It is equipped with a FANUC Series 18i-T Control Unit. Drilling and milling work possible over the entire circumference with one clamping. The tools and holders for driven tools are not included in the scope of delivery.
Overview
- brand: NAKAMURA-TOME
- year: 1999
- MODEL: WT 250
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Immediately
- control unit brand: FANUC
Technical Information - NAKAMURA-TOME WT 250
General Data
- Measurements width: 3500 mm
- Measurements depth: 3000 MM
- Measurements height: 2200 MM
- Machine weight: 6500 kg
Control Unit
- Brand: FANUC
- Model: Series 18i - T
Main drive
- Number of axis: 8
Turret
- Number of turrets: 2
- Number of tool slots: 24
Media
- Chip conveyor: Yes
Additional equipment
- - Tool holders on both turrets are VDI25
- - Barfeeder from pictures included // Dimensions of bar feeder: ~7m x 2.1m x 2.5m; 1.5t
- - Y axis on the upper turret.
Additional Information
- Technical Machine Benefits:
- - Max. Loading length 6000 mm
- - Max. Finished part length 2500 mm
- - Max. Diameter 20-55 mm in steps of 5
- - High quantities, shaft machining on both sides with one clamping
- - 8-axis; all material and surface qualities; 24 tools on 2 turrets
- - Drilling and milling work possible over the entire circumference with one clamping
- Qualitative Machine Benefits:
- - Condition: good, used
- - Tools and holders for driven tools not included in the scope of delivery
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
