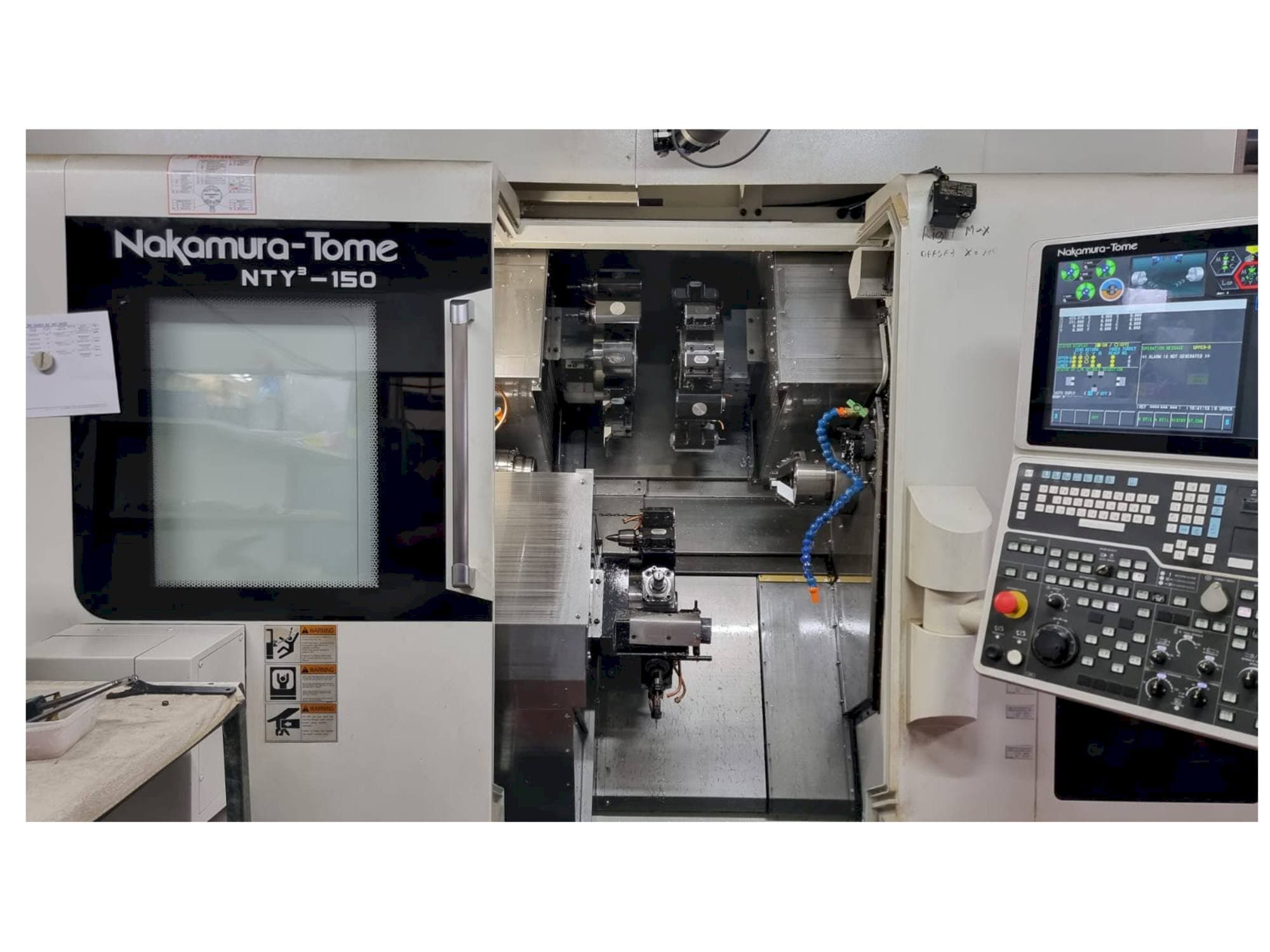

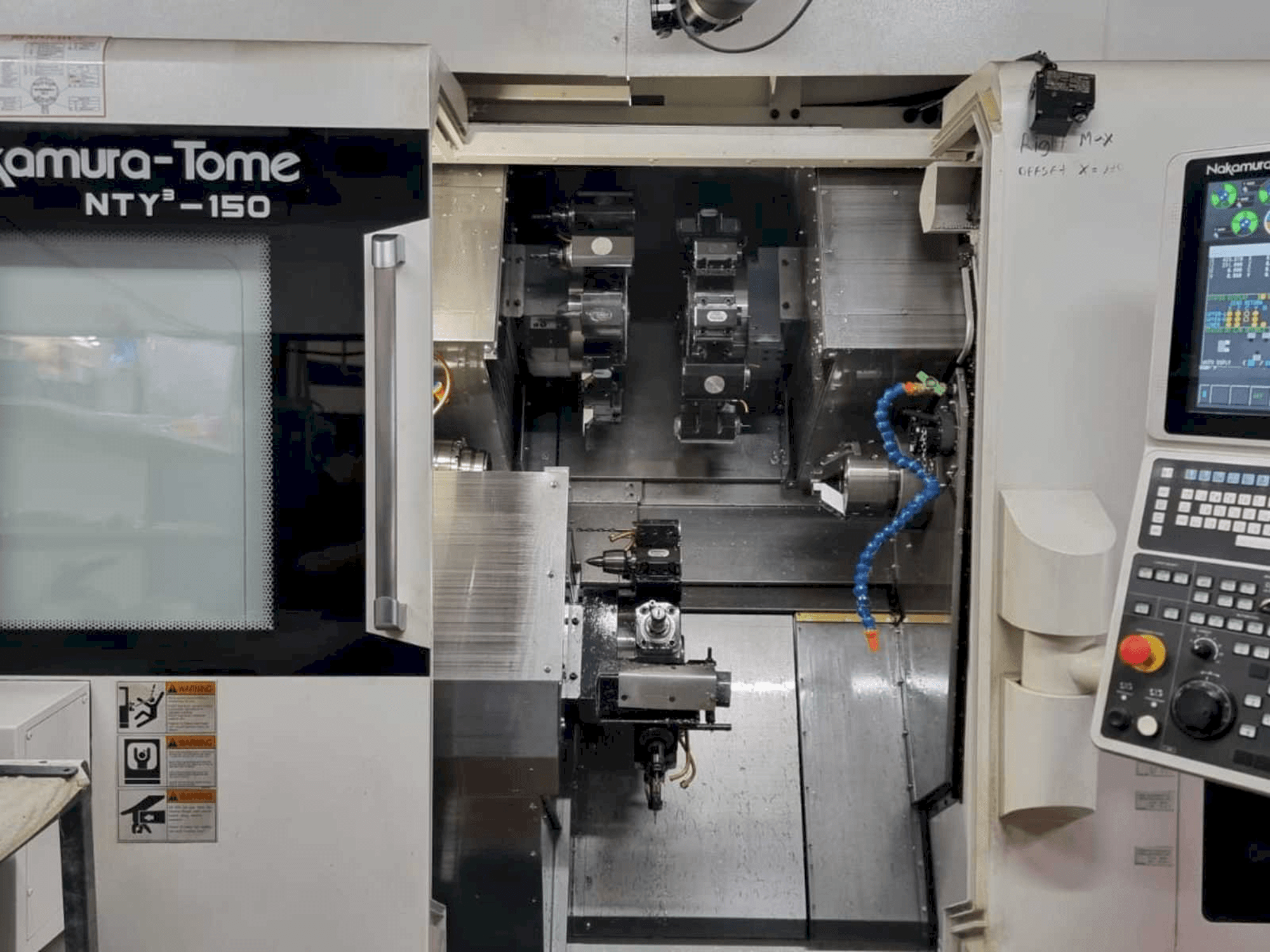

NAKAMURA-TOME NTY3-150 Lathe

Show in original language

This NAKAMURA-TOME NTY3-150 Lathe was built in the year 2018 in Japan. It is operated through a Nakamura-Tome NT Smart X control unit. It has been on for 12043 hours, of which 4759 are running hours. The machine has 13 controlled axis and can perform with a spindle speed up to 5000 rpm. Full specifications and options documentation is attached and available.

Overview

brand: NAKAMURA-TOME
year: 2018
MODEL: NTY3-150
production hours: 12043
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
availability: Sold

Technical Information - NAKAMURA-TOME NTY3-150

General Data

Measurements width: 2218 mm
Measurements depth: 3814 mm
Measurements height: 10000 kg MM

Control Unit

Model: NT Smart X

Main drive

Spindle speed range: 5000 1/MIN
Number of axis: 13

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter: 225 mm
- - Standard turning diameter: 150 mm
- - Distance between spindles: max 970 mm
- - Max turning length: 685 mm
- - Bar capacity: 51 mm
- - Chuck size: 165 mm
- - Number of driven tool stations: 12
- - Number of index positions: 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
