NAKAMURA - Super NTY3-100IT-TUR-NAK-2011-00001

Name: NAKAMURA Super NTY3-100
Brand: NAKAMURA
SKU: IT-TUR-NAK-2011-00001
Price: 12262000 INR
Availability: InStock

Rs. 12,262,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NAKAMURA Super NTY3-100 For Sale | gindumac.com

Show in original language

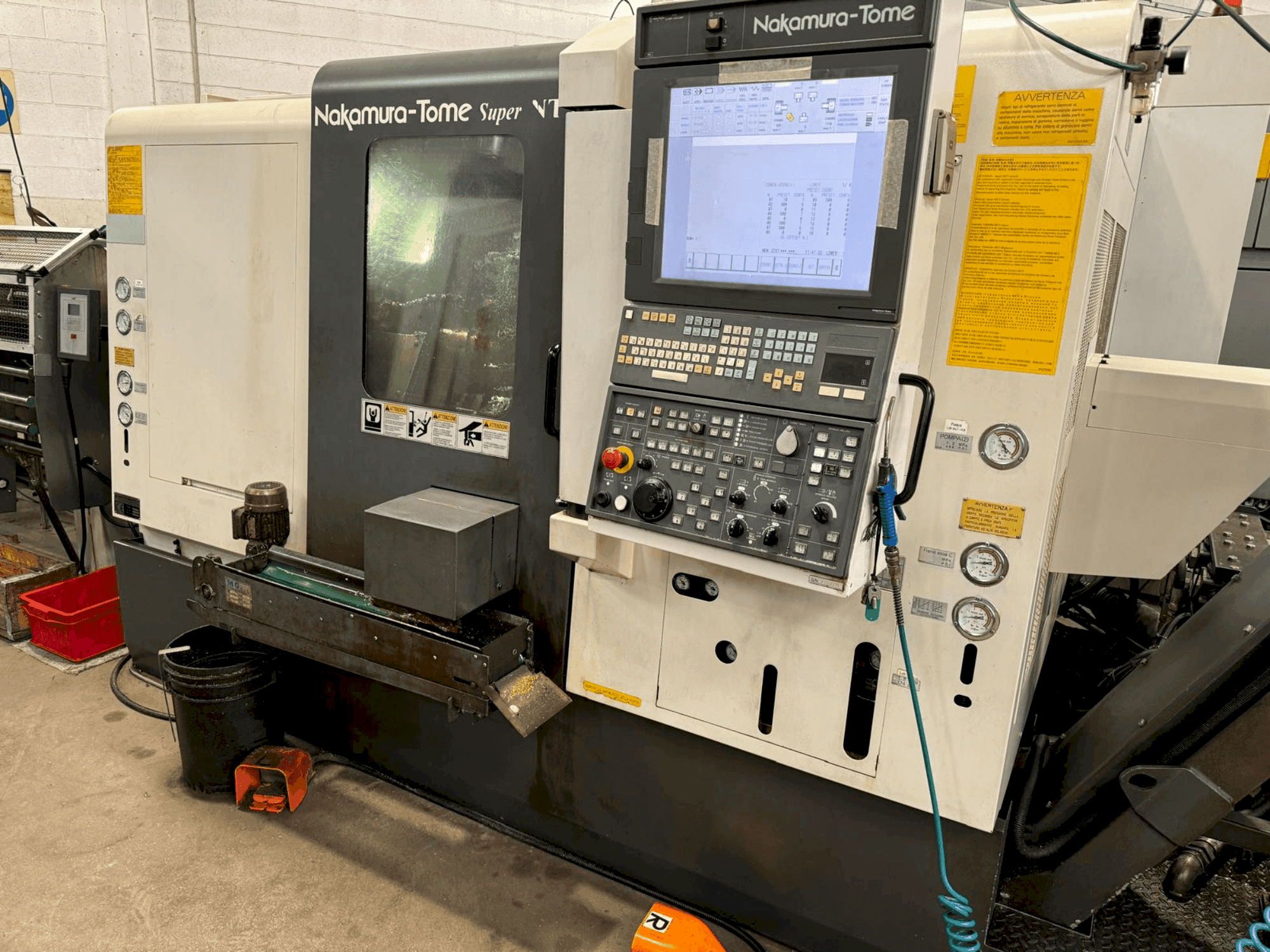

This 3-axis NAKAMURA Super NTY3-100 was manufactured in 2011. A robust horizontal turning machine featuring a Fanuc 31i-B control with a 19” touch monitor, it offers a spindle bar diameter of 65 mm and a sub-spindle diameter of 52 mm. It supports a maximum turning length of 590 mm and diameter of 175 mm. Equipped with three turrets, each holding 12 driven tools, and high spindle speeds up to 4,500 RPM. A great opportunity to buy this NAKAMURA Super NTY3-100 horizontal turning machine. Contact us for more information.

Overview

brand: NAKAMURA
year: 2011
MODEL: Super NTY3-100
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Visible Functional Until December 2024
control unit brand: FANUC

Technical Information - NAKAMURA Super NTY3-100

General Data

Measurements width: 1980 mm
Measurements depth: 2800 mm
Measurements height: 1940 mm

Control Unit

Model: 31i-B Monitor Touch 19”
Brand: FANUC

Main drive

Spindle speed range: 4500 RPM (Main Spindle), 6000 RPM (Sub-Spindle) 1/MIN
Spindle motor power: 11.5 kW (Main Spindle), 11.5 kW (Sub-Spindle)
Spindle bore: 65 mm (Main Spindle), 52 mm (Sub-Spindle)
Tool taper: ASA6” (Main Spindle), ASA5” (Sub-Spindle)

Movement

X-AXIS Movement: 135 MM
Y-AXIS Movement: 35 MM
Z-AXIS Movement: 245/245/578 MM

Media

Chip conveyor: Yes

Additional equipment

- Kit Tools
- Kit Spindle
- Bar Load

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max workpiece length: 590 mm / max workpiece diameter: 175 mm
- - High pressure pump 70 bar
- - Cooling oil
- - Fire-fighting system
- - Part catcher with belt
- - Machine has always operated with full oil

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
