Murata Wiedemann C-3000 Turret Punching Machine

Show in original language

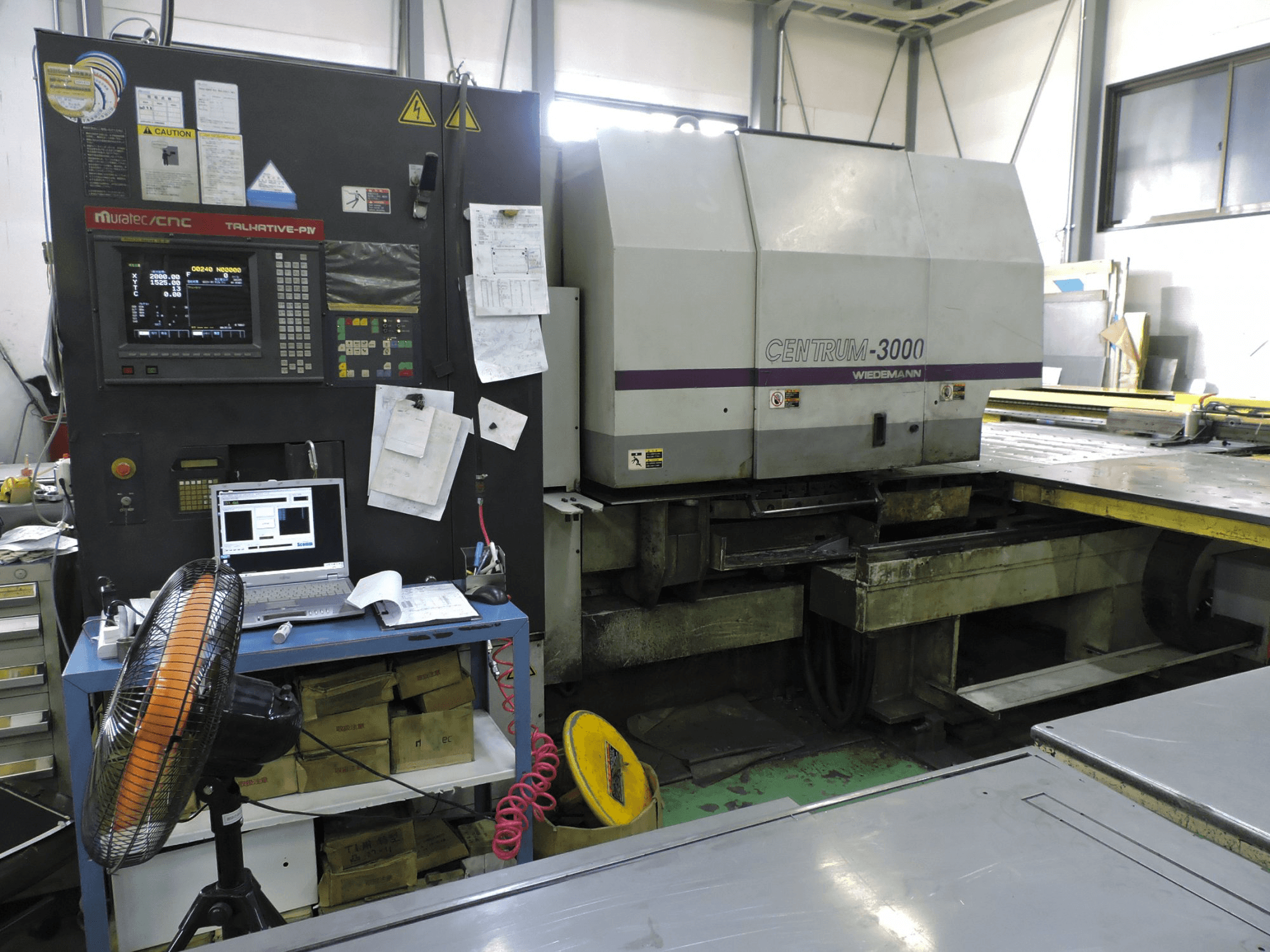

This Murata Wiedemann C-3000 is a Japanese Turret Punching Machine that was manufactured in the year 1996. A FANUC 16-P control unit manages this 300 kN strong machine, which benefits from a widely spacious working table (2000 x 1500 mm). In the past, this machine has worked most of its time on up to 4 mm thick mild steel, requires only low maintenance and finds itself in a very good working condition. Several tools and accessories are included as additional equipment.

Overview

brand: Murata Wiedemann
year: 1996
MODEL: C-3000
application type: Bending & Punching
Location: Japan
machine type: Turret Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - Murata Wiedemann C-3000

General Data

Measurements width: 4250 mm
Measurements depth: 5065 mm
Measurements height: 2132 mm
Machine weight: 22000 kg

Control Unit

Model: 16-P
Brand: FANUC

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1500 mm

Tools

Number of index: 2
Number of stations: 54

Media

Power consumption: 22 kVA

Additional equipment

- Several tools and accessories

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
