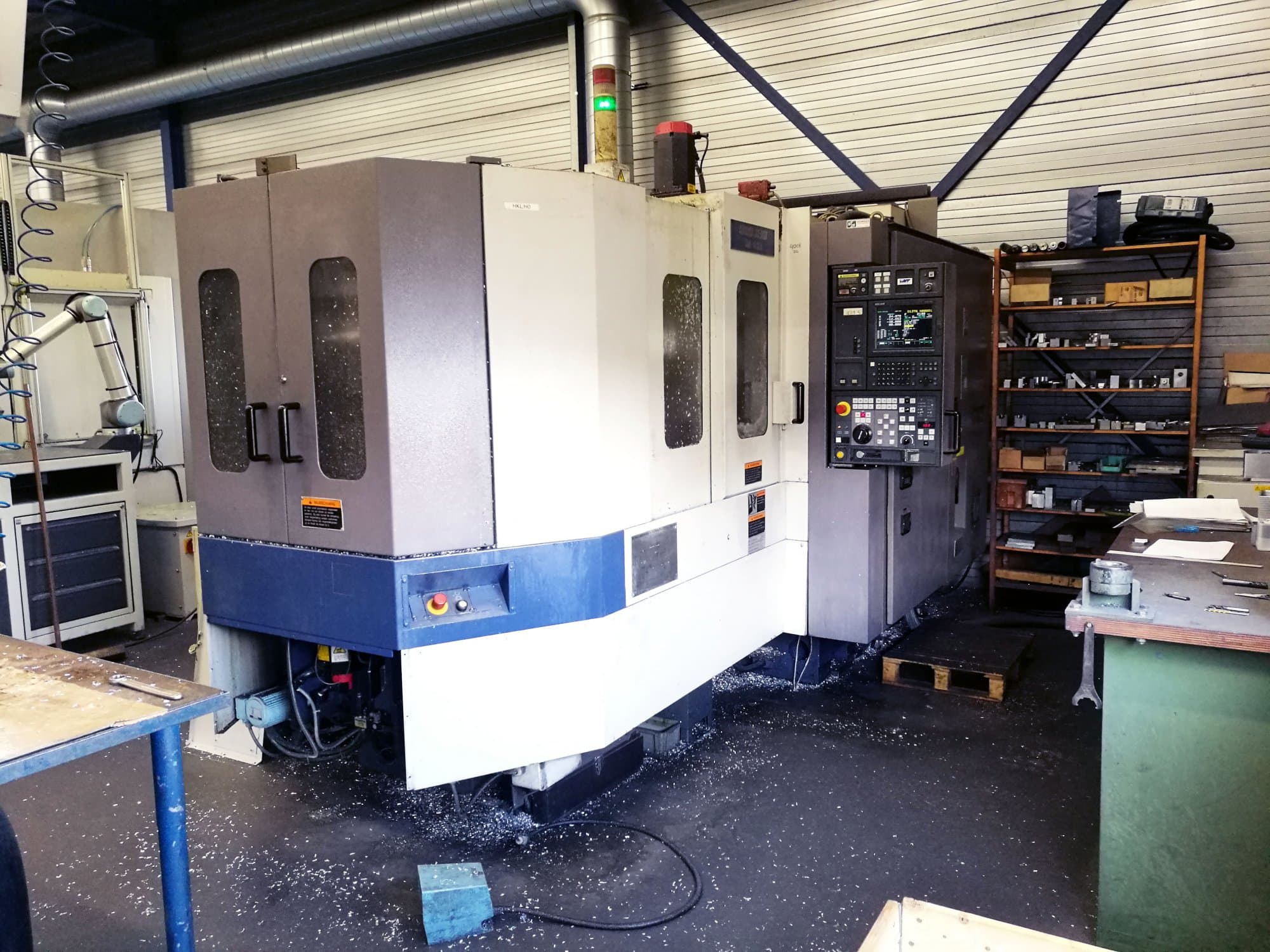

MORI SEIKI SH-403 Horizontal Machining Center

Show in original language

This MORI SEIKI SH-403 Horizontal Machining Center from the year 2000 was manufactured in Japan and has a working record of only 5050 production hours. Equipped with a MORI SEIKI MSG-501 Control unit, this machine has mainly worked with steel and aluminum producing engine spare parts. The machine, which has been operative without downtime during the past, comes in very good conditions due to regular maintenance and stands out due to features like a spindle chiller or full coolant enclosure. As additional equipment, a tool holder and a power transformer are included in the delivery.

Overview

brand: MORI SEIKI
year: 2000
MODEL: SH-403
production hours: 5050
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - MORI SEIKI SH-403

General Data

Measurements width: 4000 mm
Measurements depth: 2900 mm
Measurements height: 2540 mm
Machine weight: 10000 kg

Control Unit

Model: MSG-501

Main drive

Number of spindles: 2
Spindle speed range: 12000 1/min

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece drm: 600 mm
Workpiece x: 610 mm
Workpiece y: 650 mm
Workpiece z: 100 mm

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Max weight: 8 kg
Max tool diameter: 125 mm
Max tool length: 300 mm

Media

Main electronic connection: 200 V
Power consumption: 62 kVA
Chip conveyor: Yes

Additional equipment

- 8x Tool holder
- 1x Power transformer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
