MORI SEIKI NT4200 DCG

Show in original language

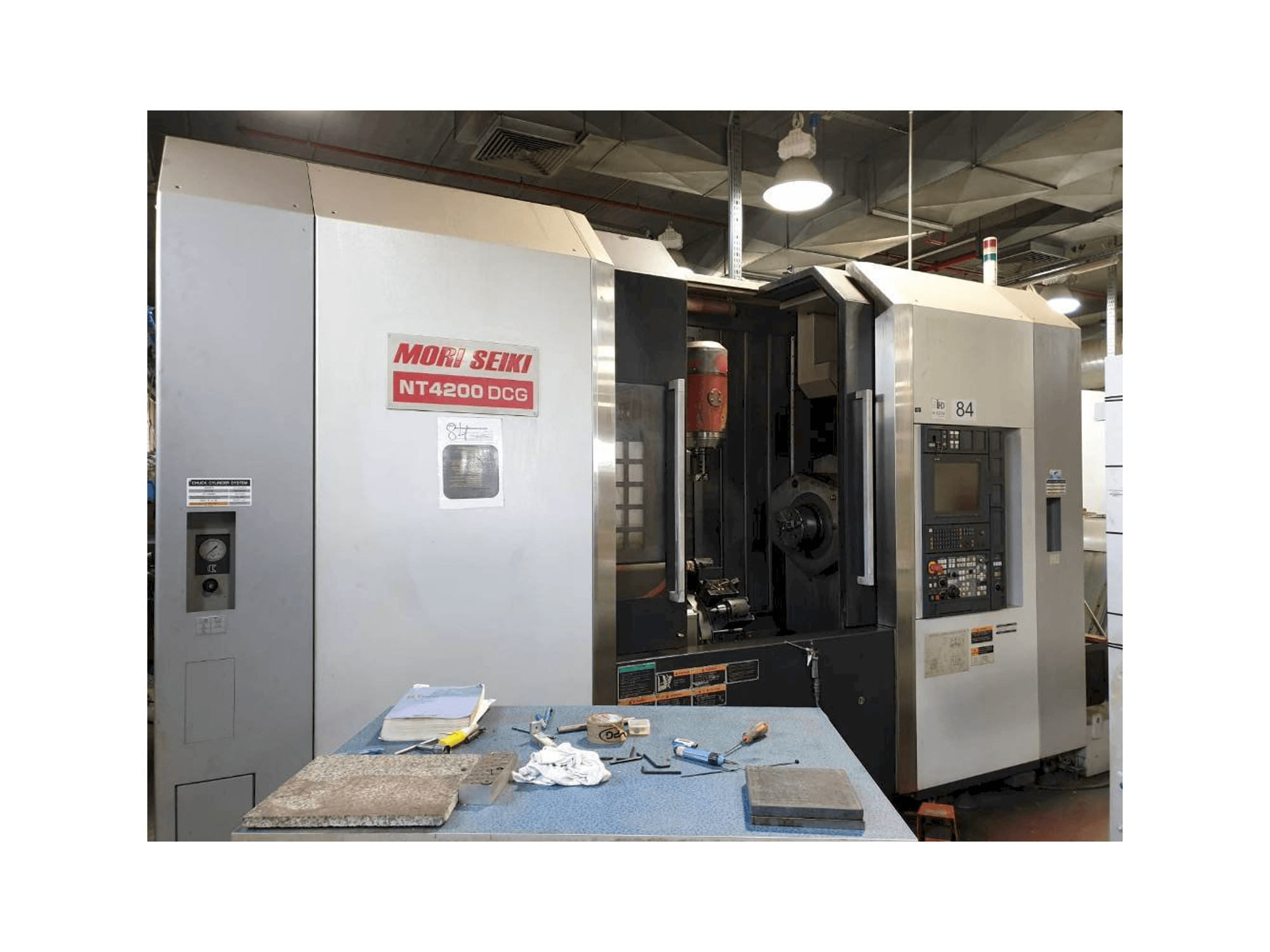

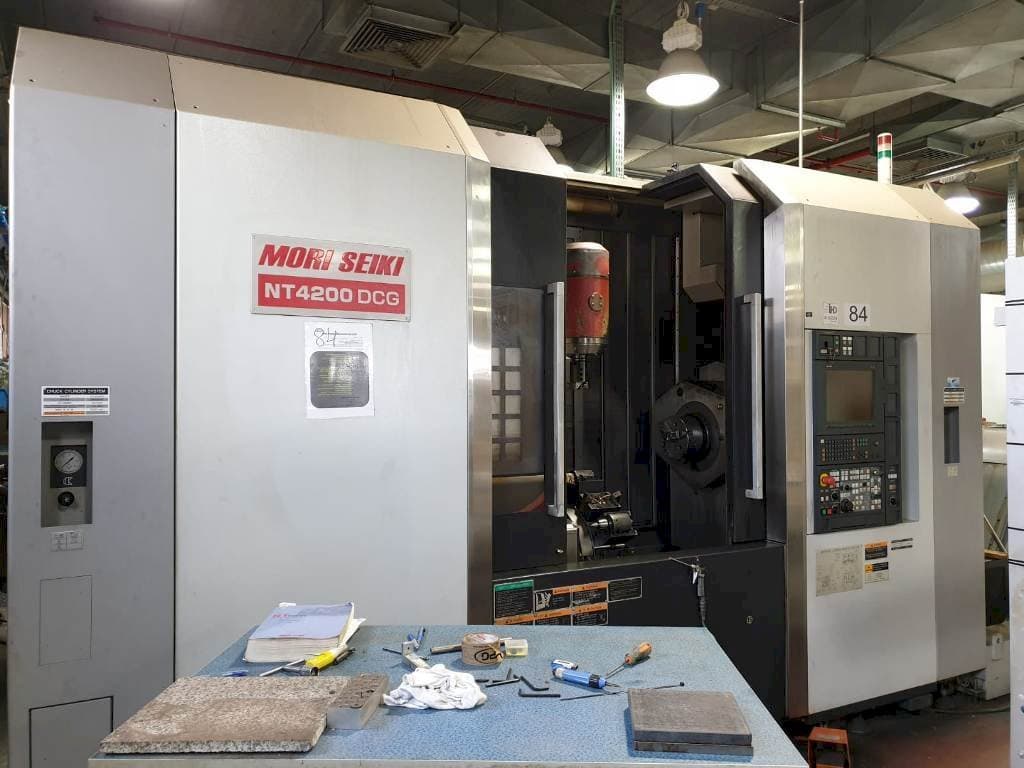

This MORI SEIKI NT4200 DCG Lathe was manufactured in Japan in the year 2007. This machine is capable of working with the main spindle speed and the sub spindle speed up to 5000 rpm. It is a very well kept machine that comes with sub turret.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NT4200 DCG
application type: Turning
Location: United States
machine type: Turn-Mill Centre
availability: Sold

Technical Information - MORI SEIKI NT4200 DCG

General Data

Machine weight: 22500 kg

Main drive

Spindle speed range: 5000 1/MIN

Turret

Number of tool slots: 12

Tools

Max weight: 8 kg
Max tool length: 401 mm
Type of tool holder: HSK

Media

Main electronic connection: 220 V / 3 ph / 60 hz
Power consumption: 72 KVA

Additional equipment

- Twin 203 mm chucks
- Sub Turret
- 42 ATC

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool spindle x-axis travel 749 mm
- - Tool spindle y-axis travel +/- 211 mm
- - Tool spindle z-axis travel 1120 mm
- - Tool spindle b-axis rotation range: +/- 120°
- - Workpiece swing: 729 mm // swing over cross slide: 399 mm
- - Distance between spindles: 1346 mm // bar work capacity (main + sub spindle): 66 mm
- - Max. Turning diameter: 345 mm // max. Turning length: 1062 mm
- - Twin spindle with sub turret // tool spindle connection: capto c6
- - Turret x-axis travel: 196 mm // turret z-axis travel: 1011 mm
- - Sub spindle speed: 5000 rpm // sub spindle nose type: jis a2-6
Qualitative Machine Benefits:
- - Sub spindle through-hole: 74 mm
- - Min. Sub spindle indexing angle: 0. 0001°
- - Sub spindle bearing inside diameter: 119 mm
- - Max. Tool diameter w/ adjacent tools: 71 mm
- - Max. Tool diameter w/o adjacent tools: 140 mm
- - Square shank height of single point tool: 25 mm
- - Shank diameter of boring bar: 51 mm
- - Rotary tool spindle speed: 6000 rpm

Extra information

- This is a very nice well kept clean machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
